Data Sheet
March 2010

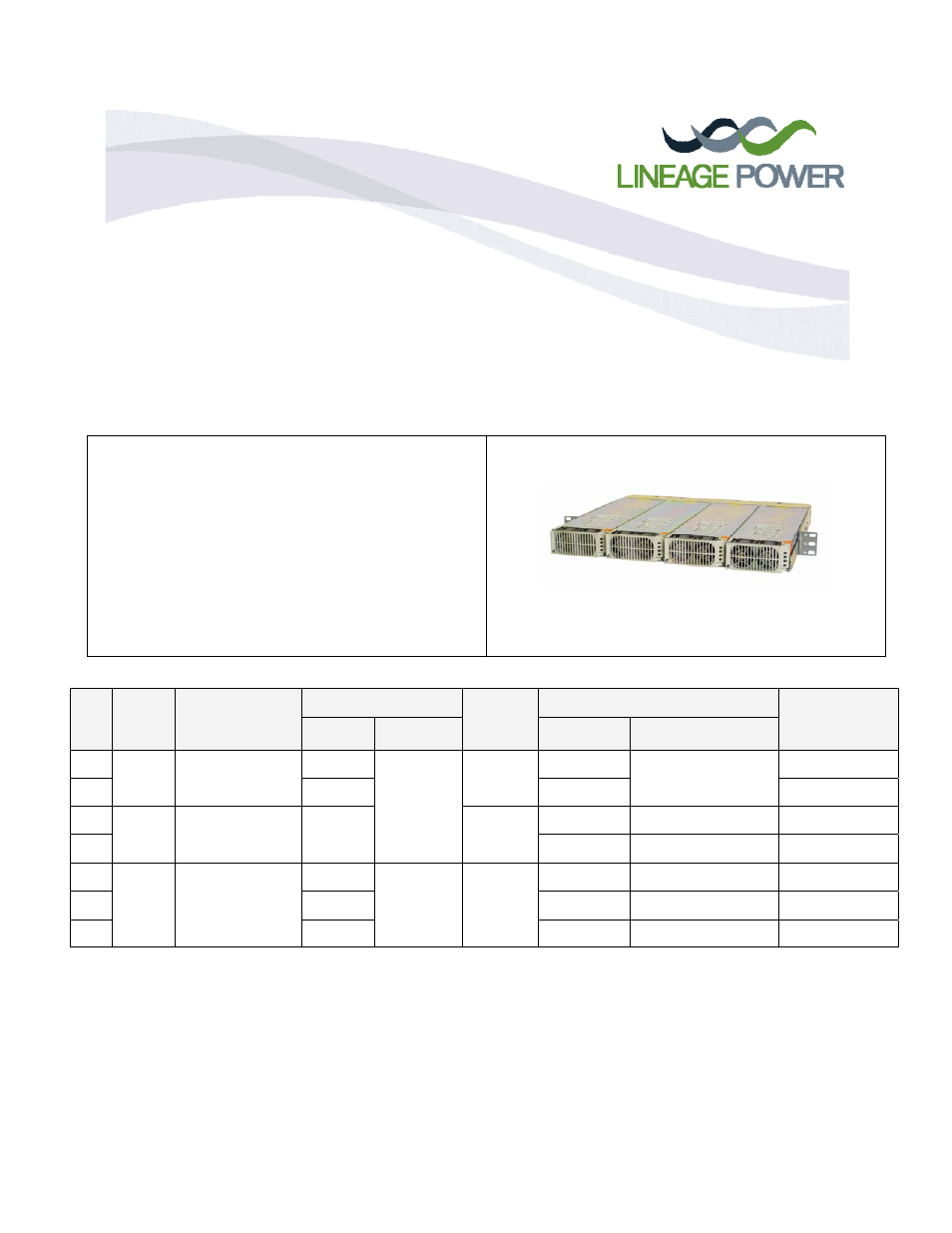

Compact Power Line Shelves
Model: J85480S1, L20 – L29 shelves
The 1U (1.75”) high CPL family of shelves mount in 19-inch wide frames and provide up to 11kW of 48V
output power per shelf. There are four slots for rectifiers. With the exception of L22 & L23, these shelves
accept the high power capacity CP2725 rectifier.
 Only 16.81” wide fits inside a 19” rack
 Common or split DC Outputs. Each output rated for 100A
supplied with either lug landings for 2 AWG wire or 3 –
35A fast-ON connectors.
 Independent IEC-320 AC input for each rectifier
 Analog, or dual/redundant I 2 C communications.
 Adjustable mounting ears for flush or set back positions.
 Stackable up to 8 high with 32 paralleled power supplies.
 Isolated output for common output shelves
List
Max
Power AC Input Plug
DC Output Max
Rectifier
Size
Features
Ordering
Codes Bus Termination Setpoint Other
20
11kW IEC-320, C19
Common
Lugs
CP2725
(  ) 54Vdc
Analog. I 2 C
CC109147344
21 Split - 54Vdc CC109147328
22
8kW IEC-320, C13 Common CP2000
(  ) 48Vdc Always ON, Analog, I 2 C CC109148490
23 (
 ) 54Vdc POE, Analog. I 2 C CC109150447
24
11kW IEC-320, C19
Common
FastON CP2725
(  ) 54Vdc Analog. I 2 C CC109136545
25 Common (
 ) 48Vdc Always ON, Analog, I 2 C CC109147303
29 Split - 54Vdc Analog. I 2 C CC109139184
Notes:
List 22 and 25 shelf is preprogrammed to be always ON and is set to 48Vdc. Either polarity can be grounded.
Split shelves L21 and L29 Vout ( - ) is split, however Vout ( + ) is paralleled among the 4 rectifiers. Vout ( + ) should be grounded.
All lists, up to 2 shelves can be paralleled for a single i 2 C line. Up to eight shelves may be paralleled for current shared power delivery.
All lists, shelf configured set point ensures inter-operability among all rectifiers from CP1800 to CP2725. Rectifiers will proportionately current
share relative to their output power capacity.
All shelves are RoHS 6 compliant. Order should reflect J85480S1LxxZ where xx is the list number and Z indicates compliance to RoHS 6.
Consult the factory for product availability set point and other feature options
