GE Industrial Solutions MicroVersaTrip Plus and MicroVersaTrip PM DS-206, DSL-206,DS-416, DSL-416, DS-420, DS-632 User Manual
Page 8

SECTION 4 INSTALLING THE
CONVERSION
KIT
(CONTINUED)
Flux Shifter Assembly, Adjustment and
Installation
The new MicroVersaTrip
®
flux shifter will be supplied
from the factory with the actuator shaft and shoe
assembled. Prior to installation, the actuator shaft and shoe
components must be disassembled from the flux shifter and
then reassembled into the Westinghouse
®
actuator frame
along with the flux shifter device.
Step 1.
Remove and retain the two (2) jamb hex nuts used to attach
the shoe to the actuator shaft of the flux shifter (Fig. 12 &
13). Slide the actuator shaft out of the flux shifter
assembly. Save all hardware.
Step 2.
Install the flux shifter assembly onto the Westinghouse
®
actuator frame using the two (2) #10 hex nuts and lock
washers provided (Fig. 14).

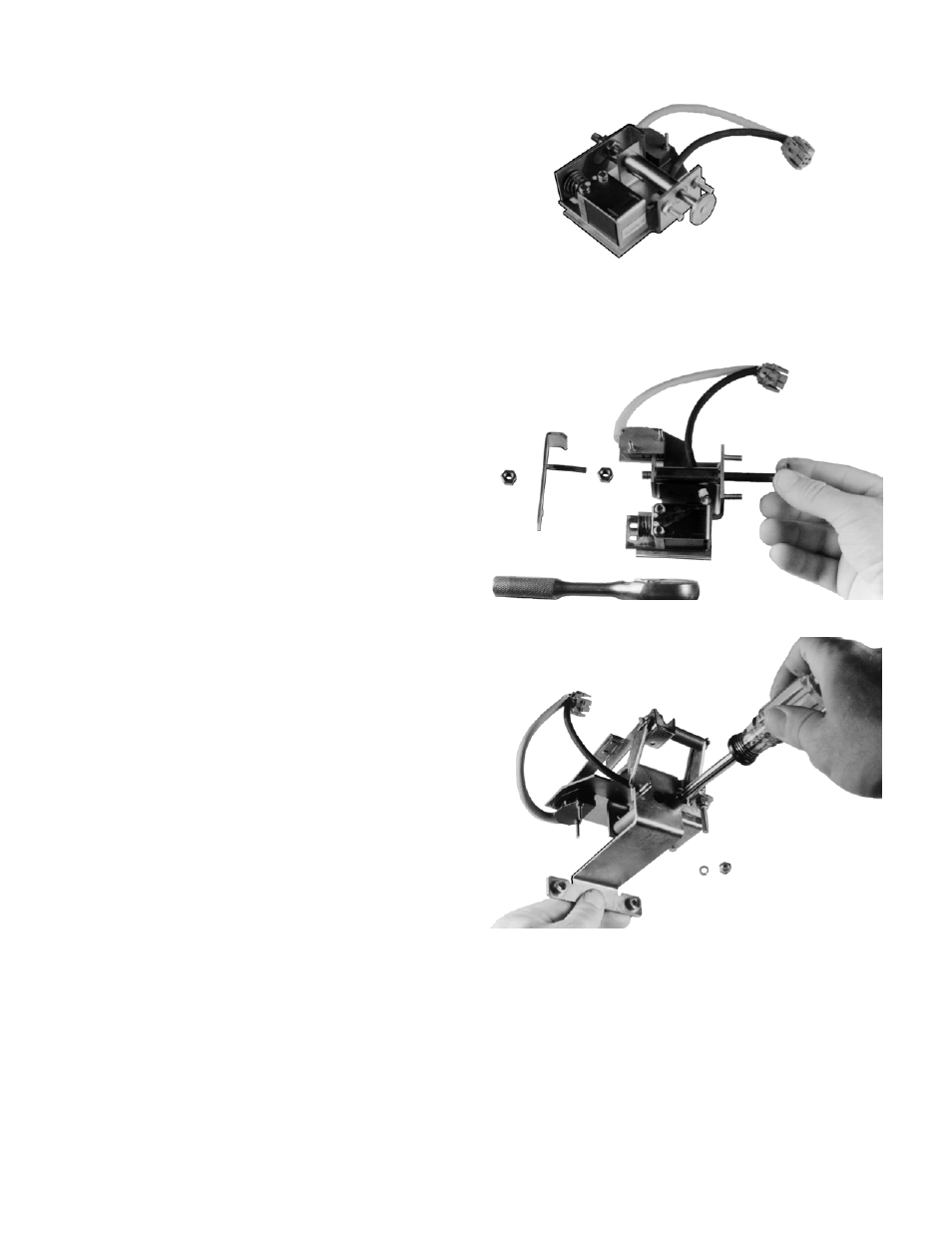

Fig. 12. Flux Shifter Assembly
as Shipped from Factory
Fig. 13. Actuator Shaft and Shoe Removal
Fig. 14. Flux Shifter Mounting
8
