SECTION 6 FOUR-WIRE

GROUND FAULT OPTION

(CONTINUED)

Step 3.

Step 2.

Route the wire through the equipment and connect to the 2-
pin connector on the programmer harness. The wire should
be tied to the breaker frame in an easily accessible location.
It may be located with the communications harness (See
Fig. 20 on page 13).

Connect the neutral sensor wire harness to the correct taps
on the sensor. The tap setting on the neutral sensor must
match the phase sensors. Maintain the following color
code:

White - Common Black - Tap

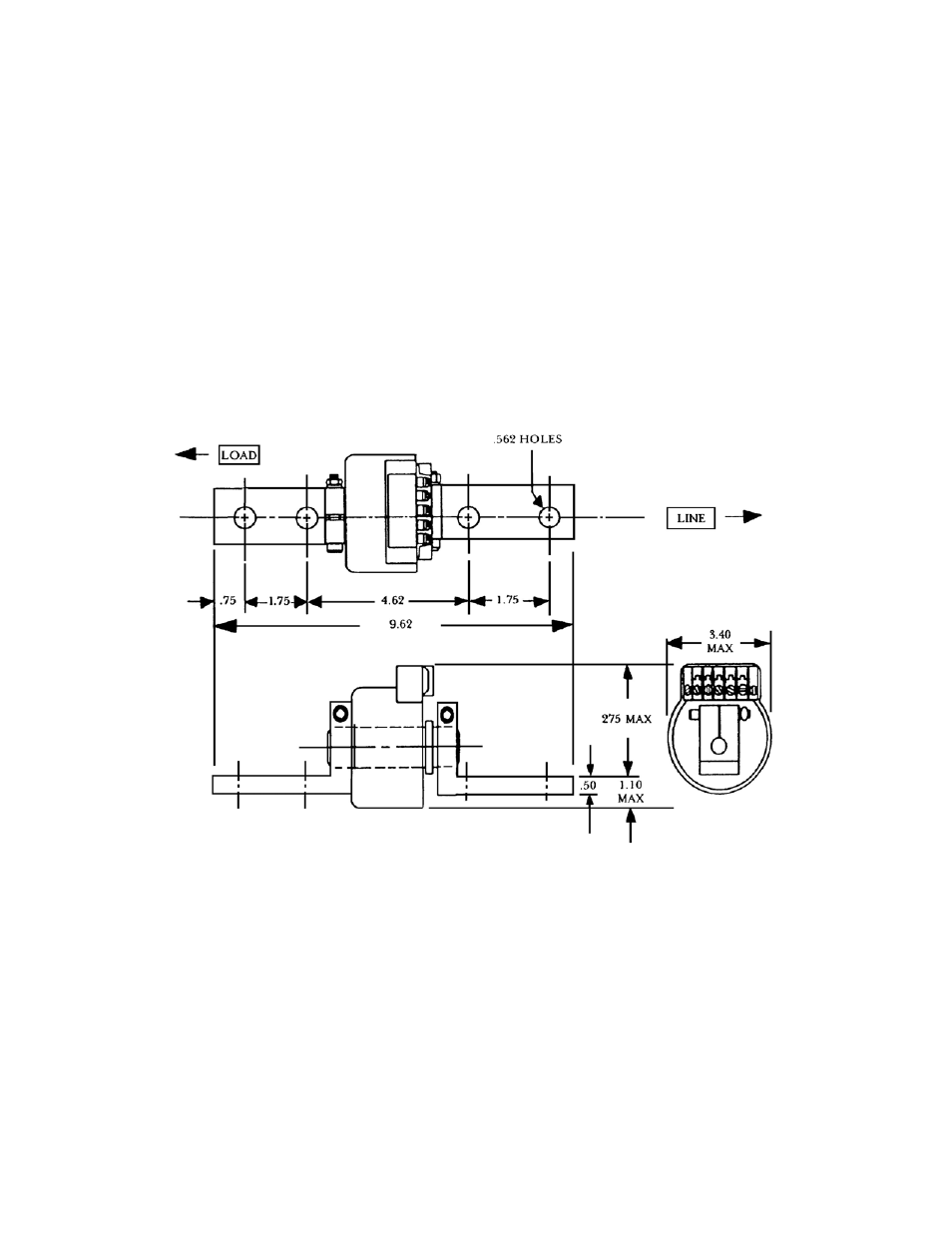

Fig. 22. Neutral Sensor Outline for DS-206 and DSL-206 Breakers
