GE Industrial Solutions MicroVersaTrip Plus and MicroVersaTrip PM DS-206, DSL-206,DS-416, DSL-416, DS-420, DS-632 User Manual
Page 11

SECTION 4 INSTALLING THE
CONVERSION
KIT
(CONTINUED)
Wire Harness Connector Assembly and
Installation (Continued)
Step 3.
Slide the adapter bracket and connector assembly over the
guide pins of the programmer bracket. Press the two (2)
steel push nuts provided onto the guide pins using a nut
driver until the assembly is held firmly against the
programmer bracket (Fig. 16d).
Step 4.
While holding the adapter bracket and connector assembly
firmly in place against the programmer bracket, bend the
two (2) locking tabs on the programmer bracket into the
mating notches on the adapter bracket using a screwdriver
(Fig. 16e).

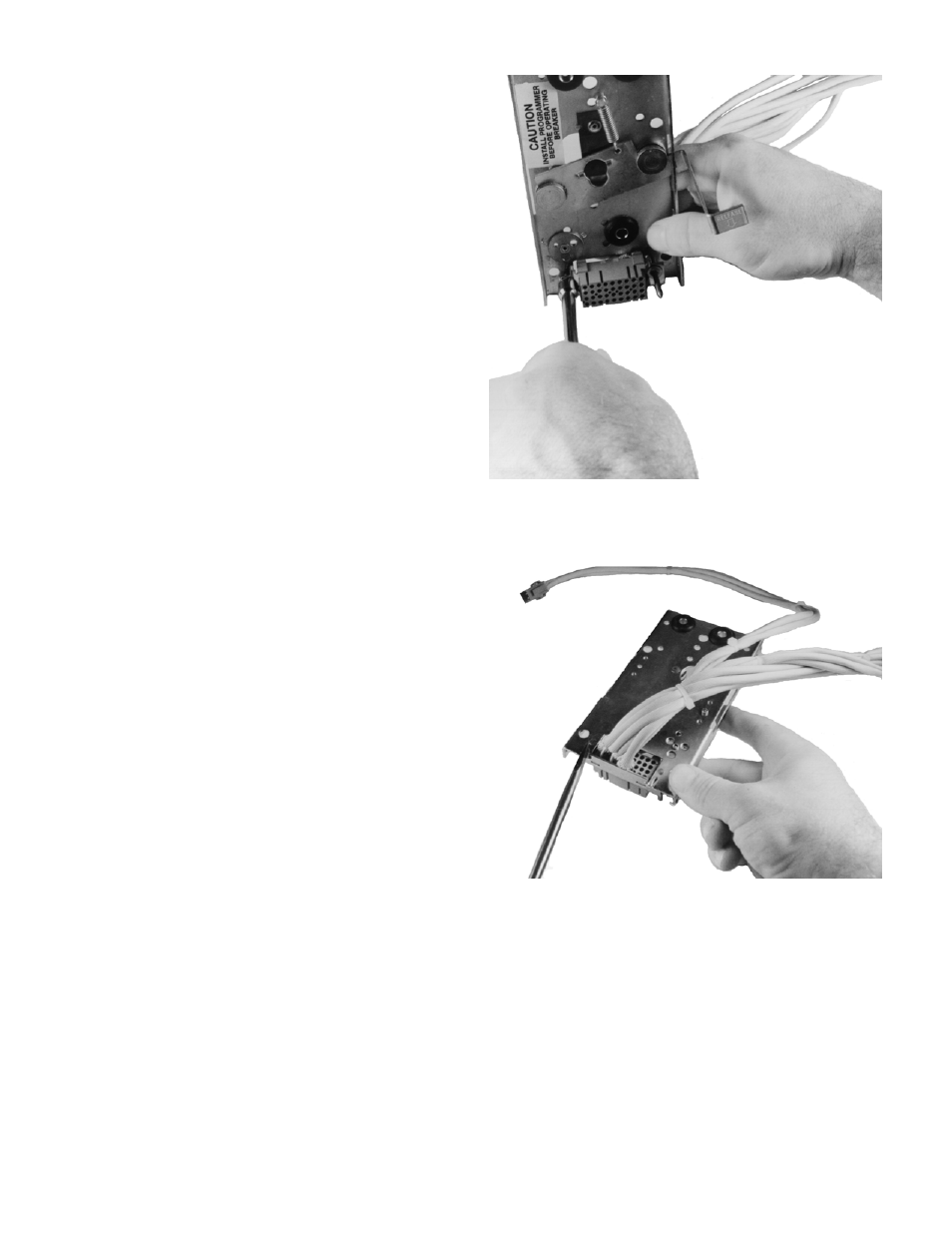

Fig. 16d. Installing Push Nuts
Fig. 16e. Programmer Bracket Locking Tabs
11
