GE Industrial Solutions MicroVersaTrip Plus and MicroVersaTrip PM DS-206, DSL-206,DS-416, DSL-416, DS-420, DS-632 User Manual
Page 7

SECTION 4 INSTALLING THE
CONVERSION
KIT
Installing the Phase Sensors (CT’s)
Step 1.
The CT’s slide onto the breaker’s primary load stabs in the
place of the original CT’s on the back of the breaker frame.
The CT’s should be mounted with the wiring taps toward
the rear of the breaker (Figs. 9-11). When installing the
CT’s on DS-206 or DSL-206 breakers, re-install the
molded CT spacers that were used with the original
Westinghouse
®
CT’s.

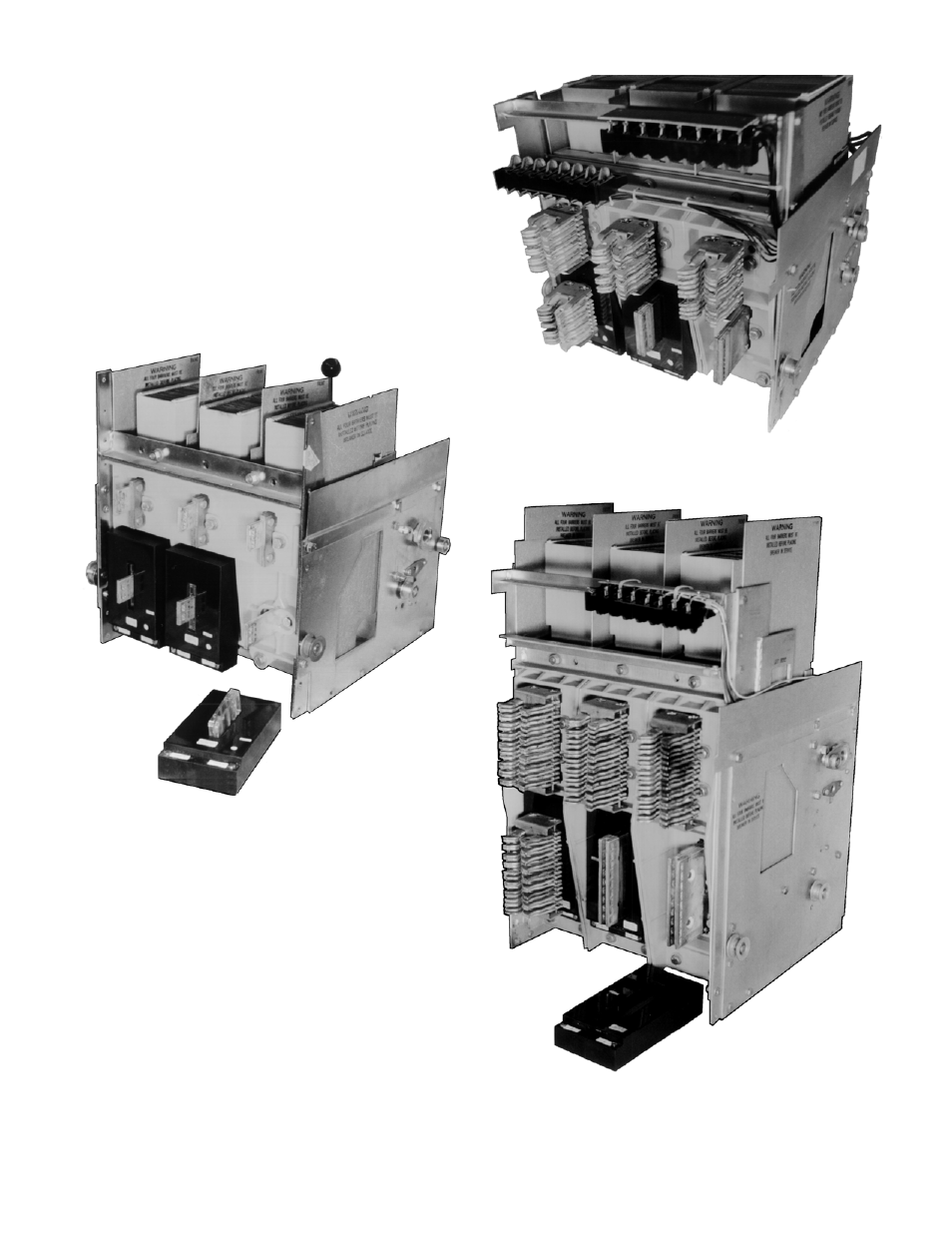

Fig. 9. CT Assembly for a DS-206 or DSL-206
Fig. 10. CT Assembly for a DS-206H, DS-416,
or DS-420
Fig. 11. CT Assembly for a DS-632 Breaker
7
