GE Industrial Solutions ESTW010A0A Series User Manual
Stingray ™ series, Rohs compliant, Features

Data Sheet
November 29, 2011

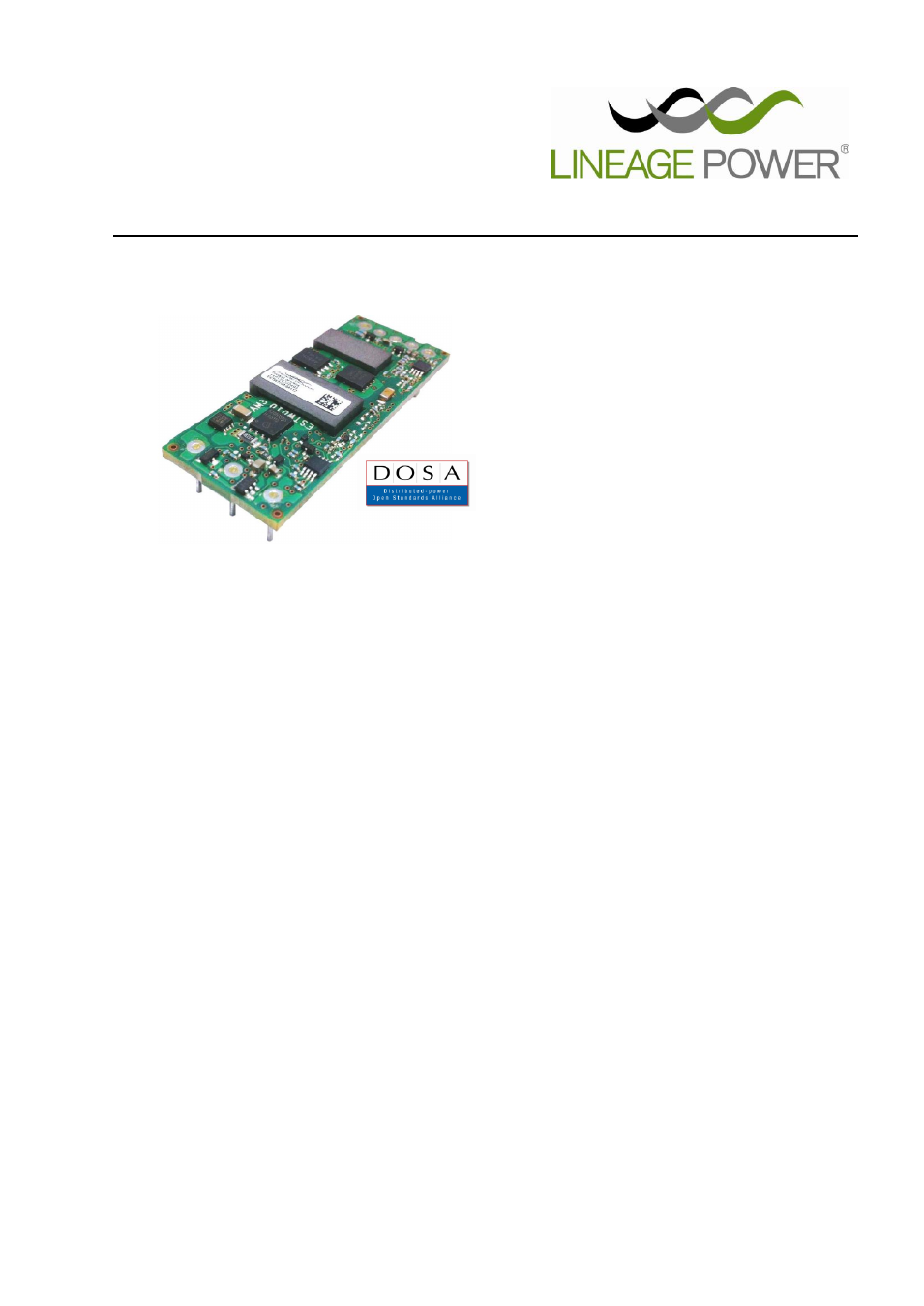

ESTW010A0A Series (Eighth-Brick) DC-DC Converter Power Modules
36
–75Vdc Input; 5.0Vdc Output; 10A Output Current
*
UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
§
This product is intended for integration into end-user equipment . All of the required procedures of end-use equipment should be followed.
¤ IEEE and 802 are registered trademarks of the
Institute of Electrical and Electronics Engineers, Incorporated.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS11-006 ver. 1.01
PDF name: ESTW010A.pdf
STINGRAY
™ SERIES
Features
Wide input voltage range: 36-75 V
dc
Monotonic startup into prebiased load
Output Voltage adjust: 80% to 110% of V
o,nom
Remote sense
Constant switching frequency
Positive remote On/Off logic
Input under/over voltage protection
Output overcurrent and overvoltage protection
Over-temperature protection
Industry standard, DOSA compliant footprint
57.9mm x 22.8mm x 8.5mm
(2.28 in x 0.9 in x 0.335 in)
Low profile height and reduced component skyline
Suitable for cold wall cooling using suitable Gap
Pad applied directly to top side of module
High efficiency: 91%
No thermal derating up to 80 °C, 1.0m/s (200 LFM)
Wide operating temperature range (-40°C to
85°C)
Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
Compliant to ROHS EU Directive 2002/95/EC with
lead solder exemption (non-Z versions)
UL* 60950-1, 2
nd
Ed. Recognized, CSA
†
C22.2 No.
60950-1-07 Certified, and VDE
‡
(EN60950-1, 2
nd
Ed.) Licensed
CE mark meets 2006/95/EC directive
§
Meets the voltage and current requirements for
ETSI 300-132-2 and complies with and licensed for
Basic insulation rating per EN60950-1
2250 Vdc Isolation tested in compliance with IEEE
802.3
¤
PoE standards
ISO
**
9001 and ISO 14001 certified manufacturing
facilities
Applications
Distributed Power Architectures
Wireless Networks
Access and Optical Network Equipment
Industrial Equipment
Options
Negative Remote On/Off logic (preferred)
Over current/Over temperature/Over voltage
protections (Auto-restart) (preferred)
Heat plate version (-H)
Surface Mount version (-S)
RoHS 6/6 compliant; Lead Free (-Z)
For additional options, see Table 2 (Device Options)
under “Ordering Information” section.
Description
The ESTW010A0A, Eighth-brick low-height power module is an isolated dc-dc converters that can deliver up to 10A
of output current and provide a precisely regulated output voltage of 5.0V over a wide range of input voltages (V
IN
=
36 - 75Vdc). The modules achieve typical full load efficiency of 91%. The open frame modules construction, available
in both surface-mount and through-hole packaging, enable designers to develop cost and space efficient solutions.
RoHS Compliant
