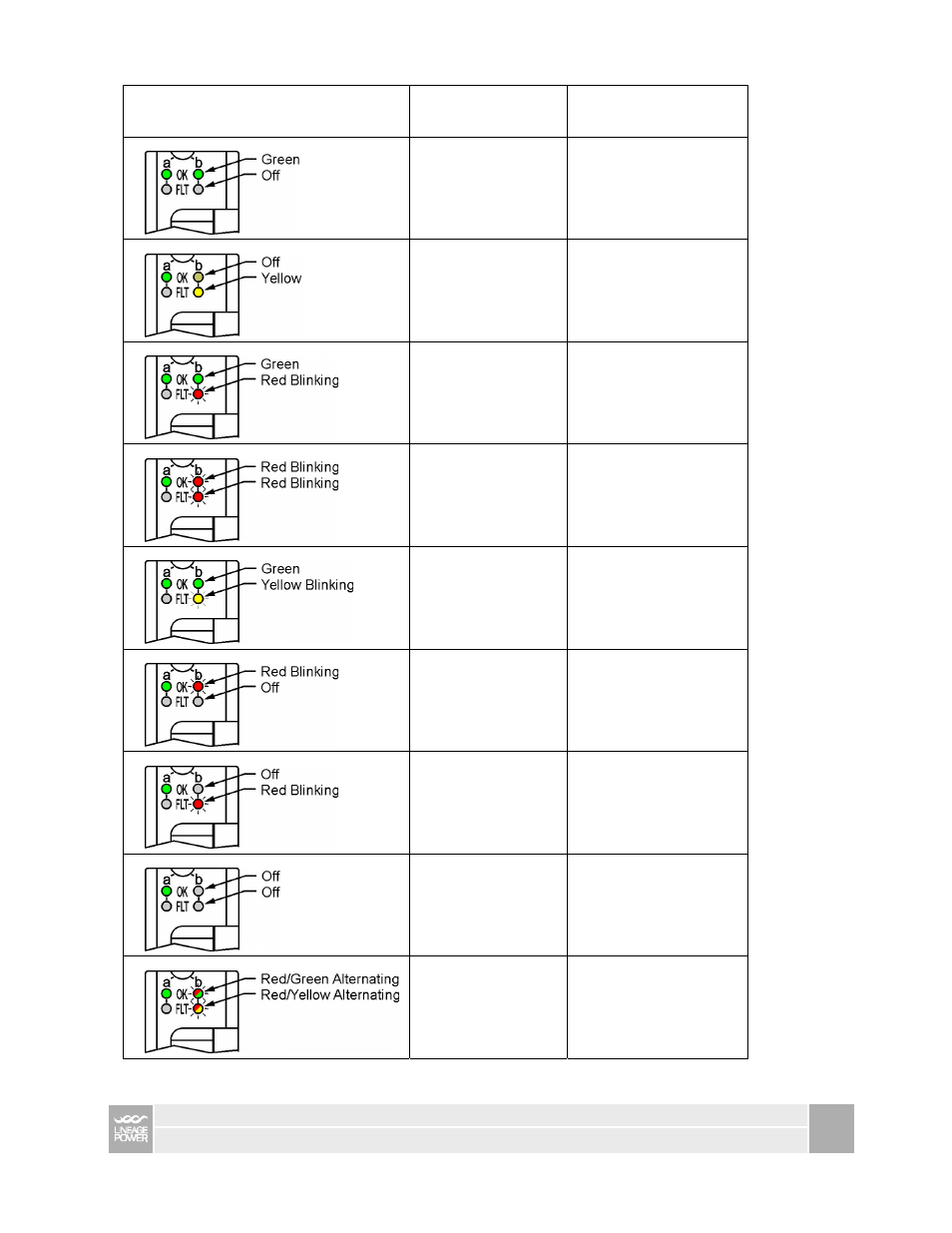

Converter LEDs look like this:
LED Display Conditions
(on b circuit) Action Required
All OK None
Circuit Placed in Standby None depending on desired
state of circuit b. Standby state
can be set using the QS941
controller or web browser.
Loss of comm. Check seating on Alarm card
and converter card
Ground fault Check 5 pin protectors and
faults to ground
Overcurrent or under
voltage Check output lines for shorts
to each other
OV or internal failure Replace unit
Thermal Alarm Solve Thermal problem
card not powered or input
fuse failure Check source voltage
Lamps test requested from
controller Observe Lamp Test
