Page 6

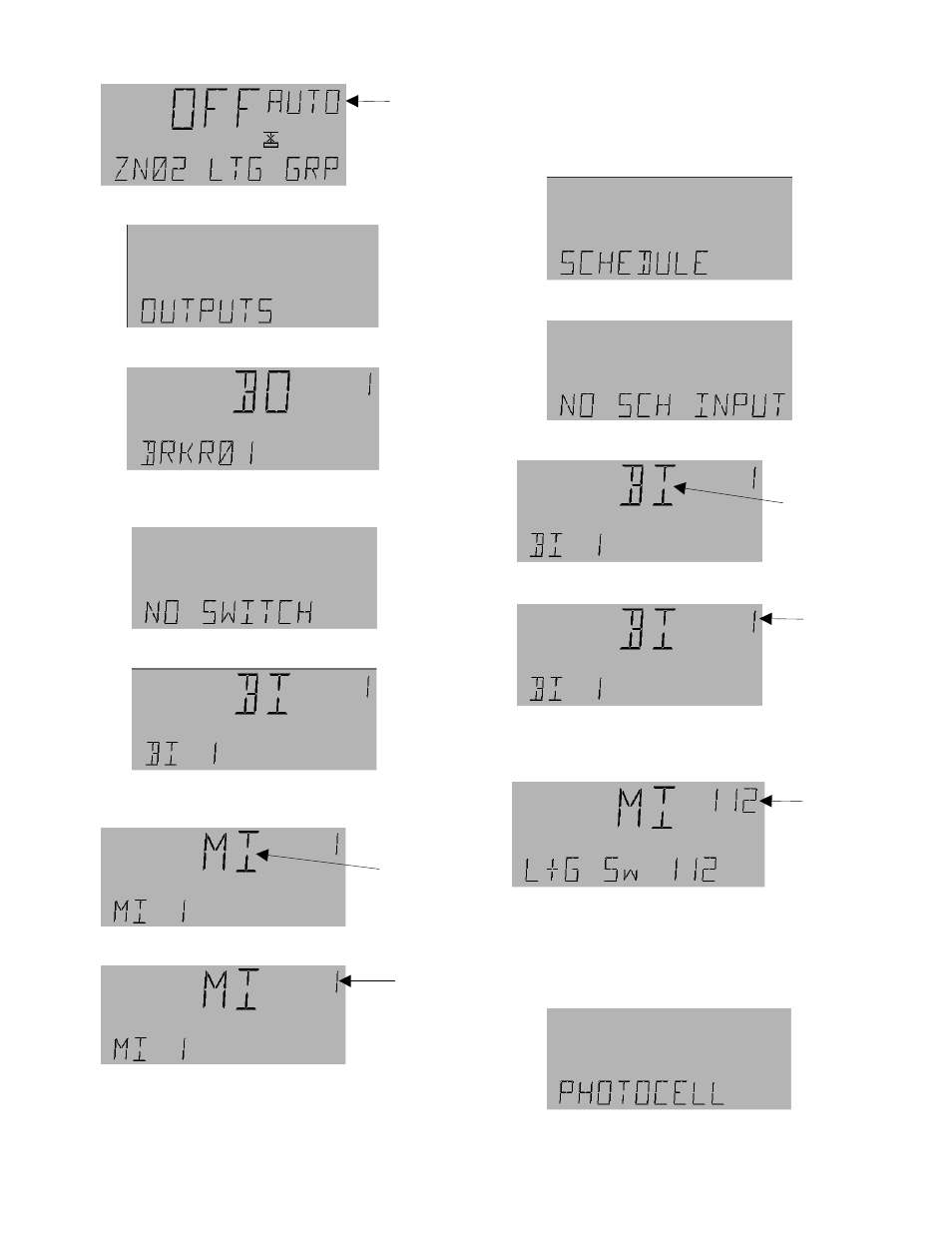

Press the

key to display the outputs screen:

Press

for the breaker 1 output display:

Press the down arrow key to see that nothing is attached to
this BO:

Press

; the following display may appear:

Press the up and down arrow keys until the MI object
appears:

Press

again; the 1 will start flashing:

Use the numeric keys to change the switch number to any
of those in Table 2. Press

when the desired number

appears; this switch is now attached to BO1 and can be
used to control it.

Controlling Objects with a Switch – Case 3

Go to the Schedule submenu of the Lighting Group menu
by pressing the down arrow key from the Outputs
submenu (see Case 2).:

Press

; the following screen may appear:

Press

again for the following display:

Press

again and the flashing will change as follows:

Use the numeric keys to change MI to any number given
in Table 2. For instance, if 112 is entered, the display
appears as

Press

to connect MI 112 to the group.

Controlling Objects with a Switch – Case 4

From the Schedule submenu, press the down arrow twice
to reach the Photocell submenu:

Press

; the following screen may appear:

Flashing
