GE Industrial Solutions CAR2548FP series - Manual (Page 14)

GE Data Sheet
CAR2548FP series rectifier
Input: 90Vac to 264Vac; Output: 48Vdc @ 2500W; 3.3Vdc or 5 Vdc @ 1A
March 28, 2013 ©2013 General Electric Company. All rights reserved. Page 14

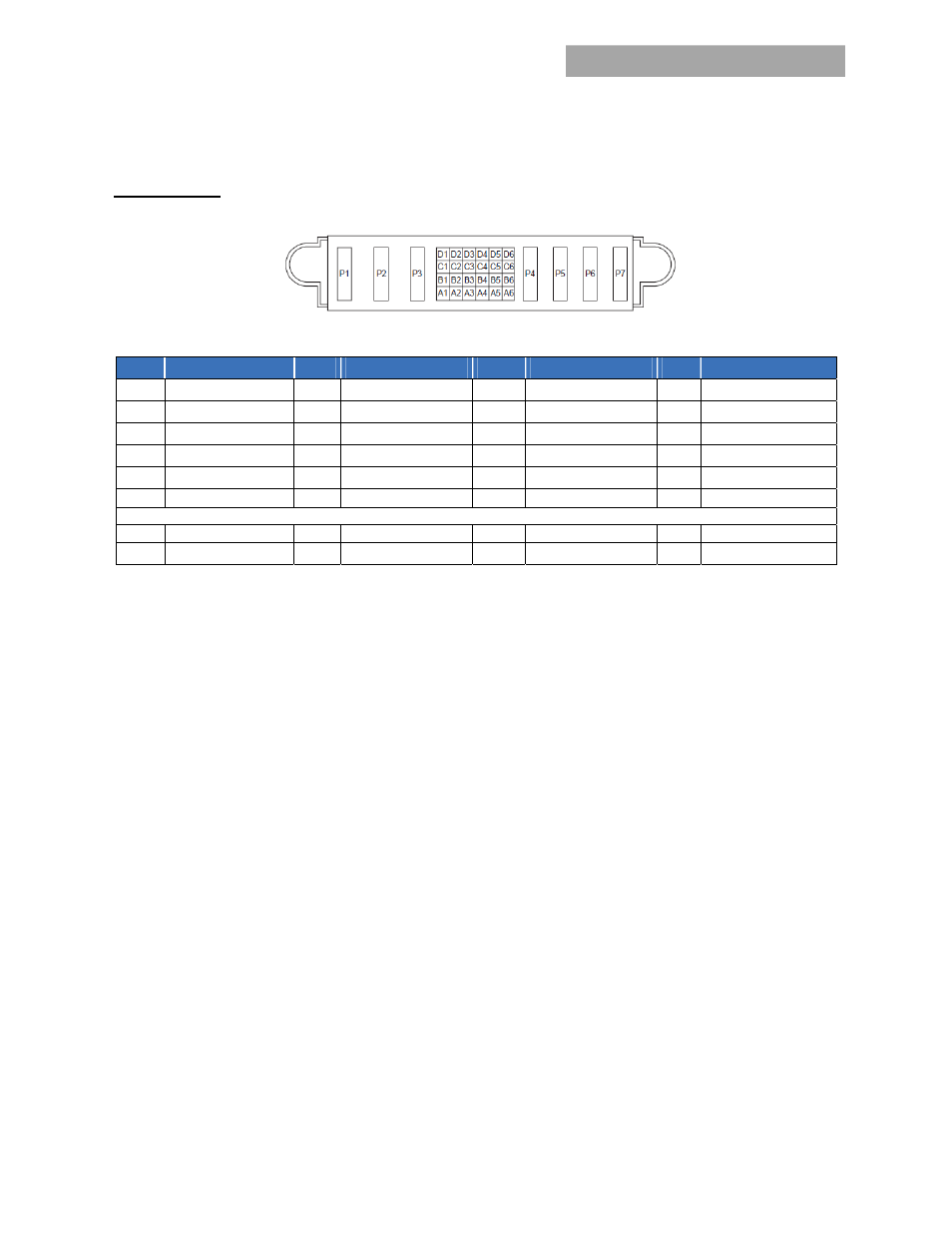

Connector Pin Assignments
Mating Connector: FCI Berg P/N: 51939-030LF or Molex 87663-9002
Mating connector: 51915-051LF or Molex 87664-2004
Pin Function Pin Function Pin Function Pin Function
A1 Vstb [3.3V] B1 Fault C1 ISHARE D1 VProg
A2 Vstb [3.3V] Return B2 I Monitor (IMON) C2 N/C D2 OVP Test Point
A3 Signal Return B3 PS Present C3 Over Temp Warning D3 Remote ON/OFF
A4 Write Protect (WP) B4 Enable: “0” –ON “1” -OFF C4 I 2 C Address (A0) D4 DC OK
A5 Remote Sense (+) B5 SDA (I 2 C bus) C5 I 2 C Address (A1) D5 AC OK
A6 Remote Sense (-) B6 SCL (I 2 C bus) C6 I 2 C Address (A2) D6 Interrupt
P1 Line P2 Neutral P3 Chassis
P4 +Vout P5 +Vout P6 Output Return P7 Output Return
