Crown Audio DCi Series – Network Input Models - Manual (Page 45)

DriveCore Install Network Series Power Amplifiers
page 45 Operation Manual
Advanced Operation
Input Delay and Driver/Output Delay

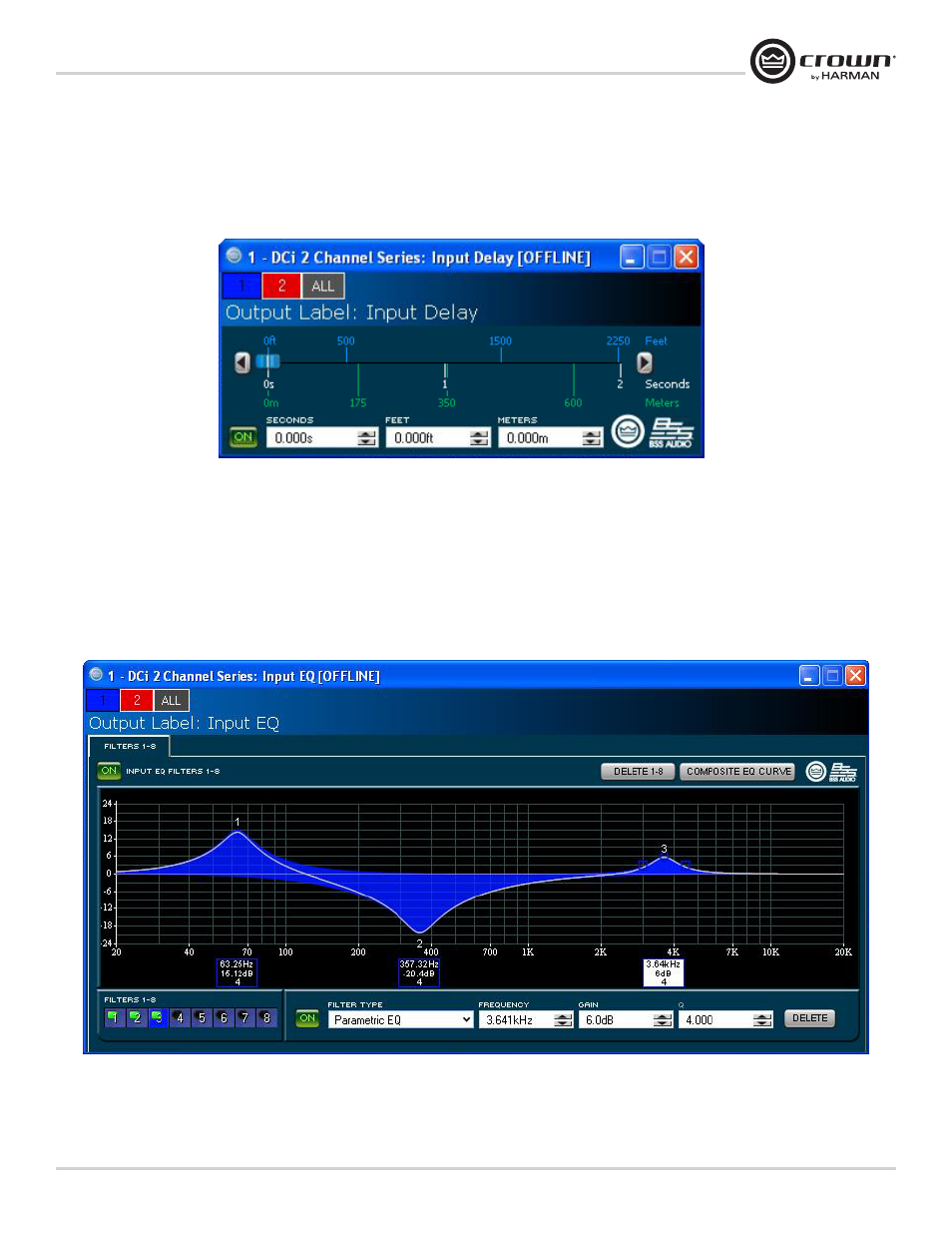

Input delay includes up to 2 seconds of delay. Output delay is typically used for driver alignment. Up to 0.1 seconds of output delay is provided. See Figure 30
Input/Output Equalization
These screens let you adjust channel equalization for up to 8 frequencies. You can select filter type, frequency, gain, and bandwidth in octaves or Q as set by the user
preferences in Audio Architect. Changes to the equalizer’s frequency response can be done by typing in parameters or by click-dragging the response curve. See Figure 31
Figure 30
Figure 31
