Set-up and System Configuration
Cascading Inputs
Cascading the analog inputs, or "Y-ing channels" gives more flexibility to the installation of this amplifier (See Figure 9). One input can be used to drive some or all of the
amplifier outputs. NOTE: By cascading the inputs, the corresponding input DSP functions for individual channels will be removed and only the output DSP functions will be
available (See Figure 10).

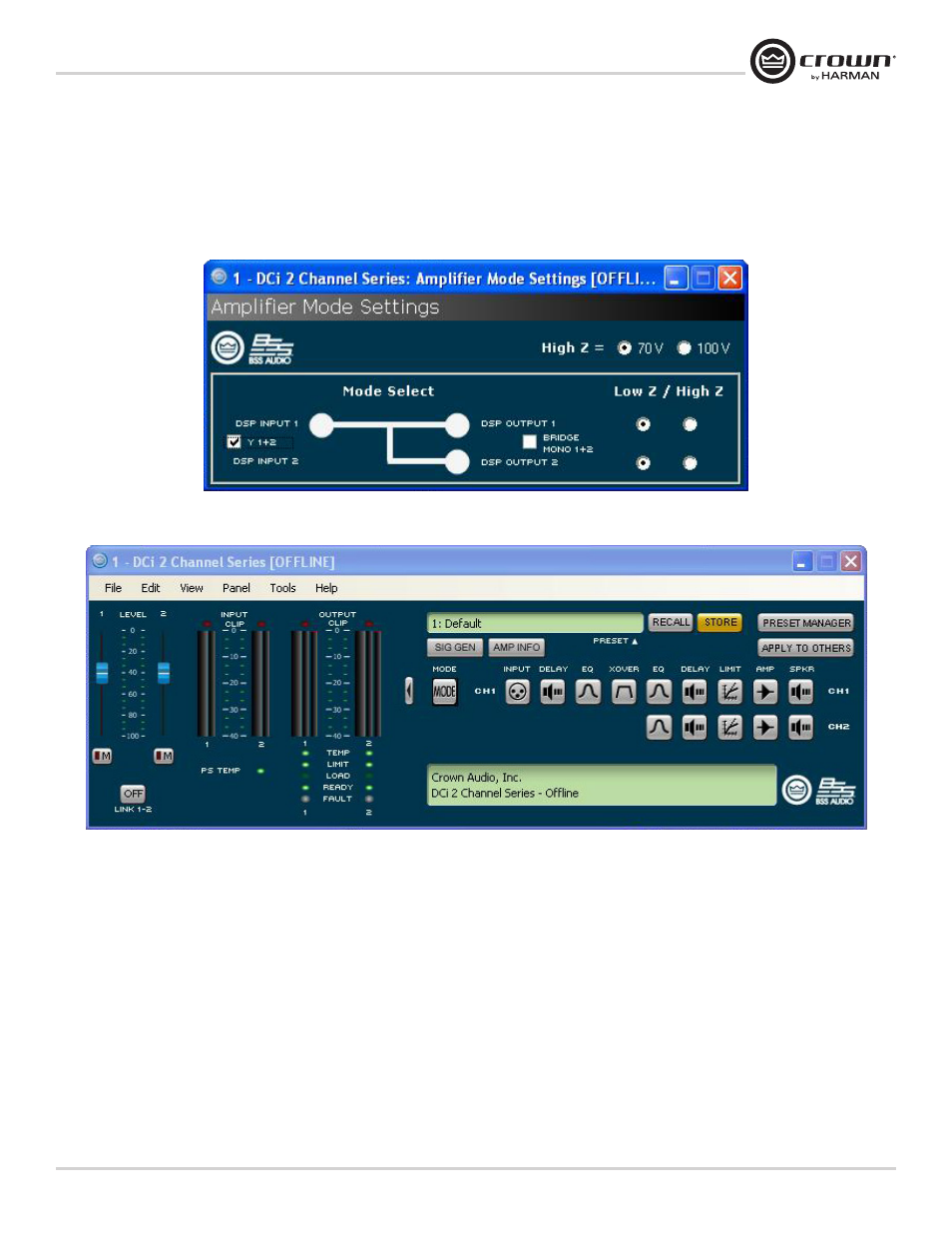

Figure 9 Use the "Y 1+2" etc. check boxes to cascade channel inputs
Figure 10 With the "Y 1+2" box checked, both output Ch.1 and Ch.2 are fed by input Ch.1 and input processing is organized accordingly.
