DriveCore Install Network Series Power Amplifiers
Operation Manual page 24
Bridge Mode Hi-Z (140V/200V)
INPUTS: Connect the input to the odd-numbered channels
(1,3,5,7) only. Even-numbered inputs are disabled when the
Bridge Mono mode is active.
OUTPUTS: Connect the speaker across the positive terminals
of each channel pair. Do not use the negative terminals of the
channel pair when the pair is being operated in Bridge-Mono
mode.
NOTE: For global selection of 70V (140V bridged) or
100V (200V bridged) operation, refer to Page 10.

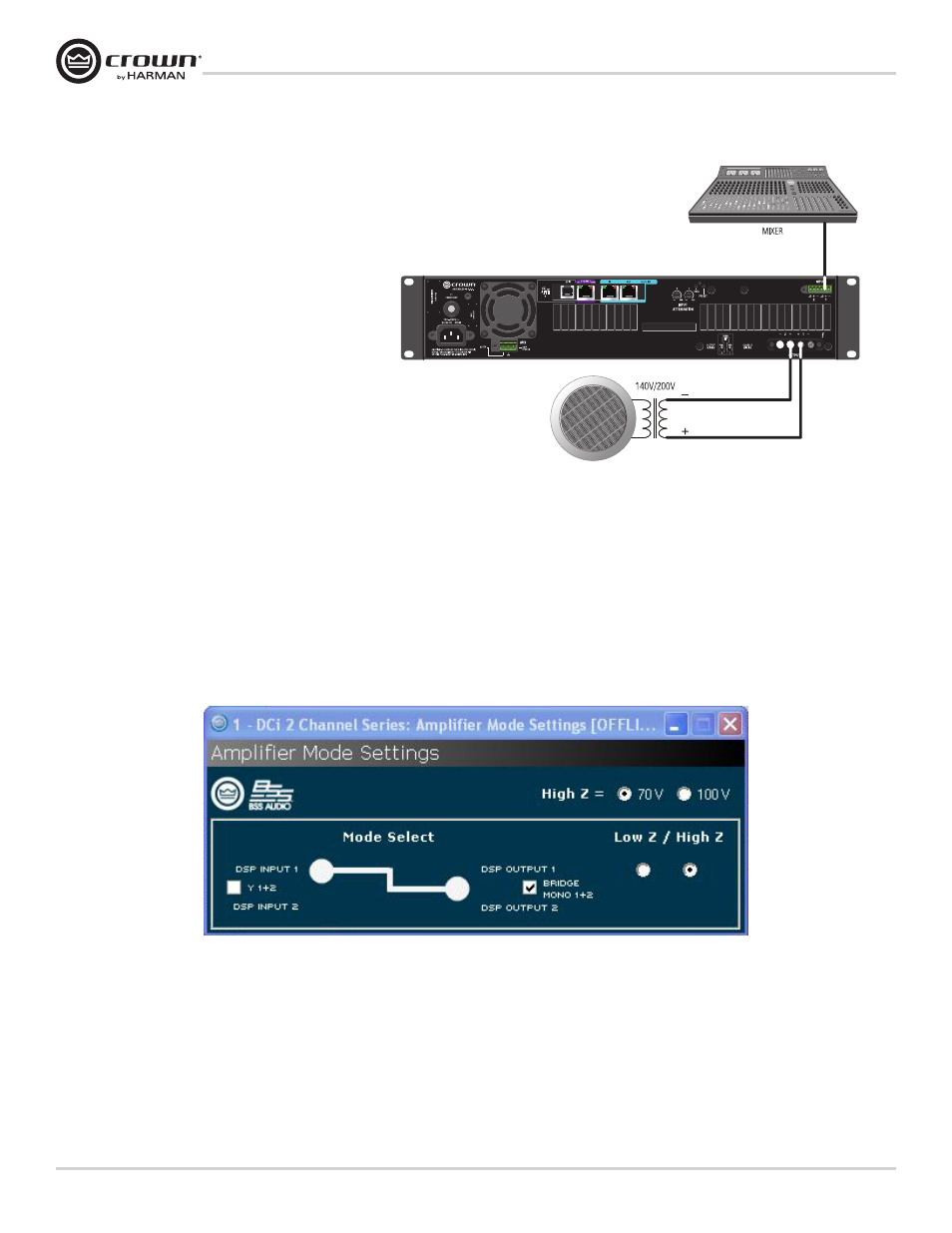

Figure 15 System Wiring for 140V/200V Operation
Figure 15
Set-up and System Configuration
Always route the input and output wires in separate bundles.
