DriveCore Install Network Series
Power Amplifiers
Operation Manual
page 34
BLU Link

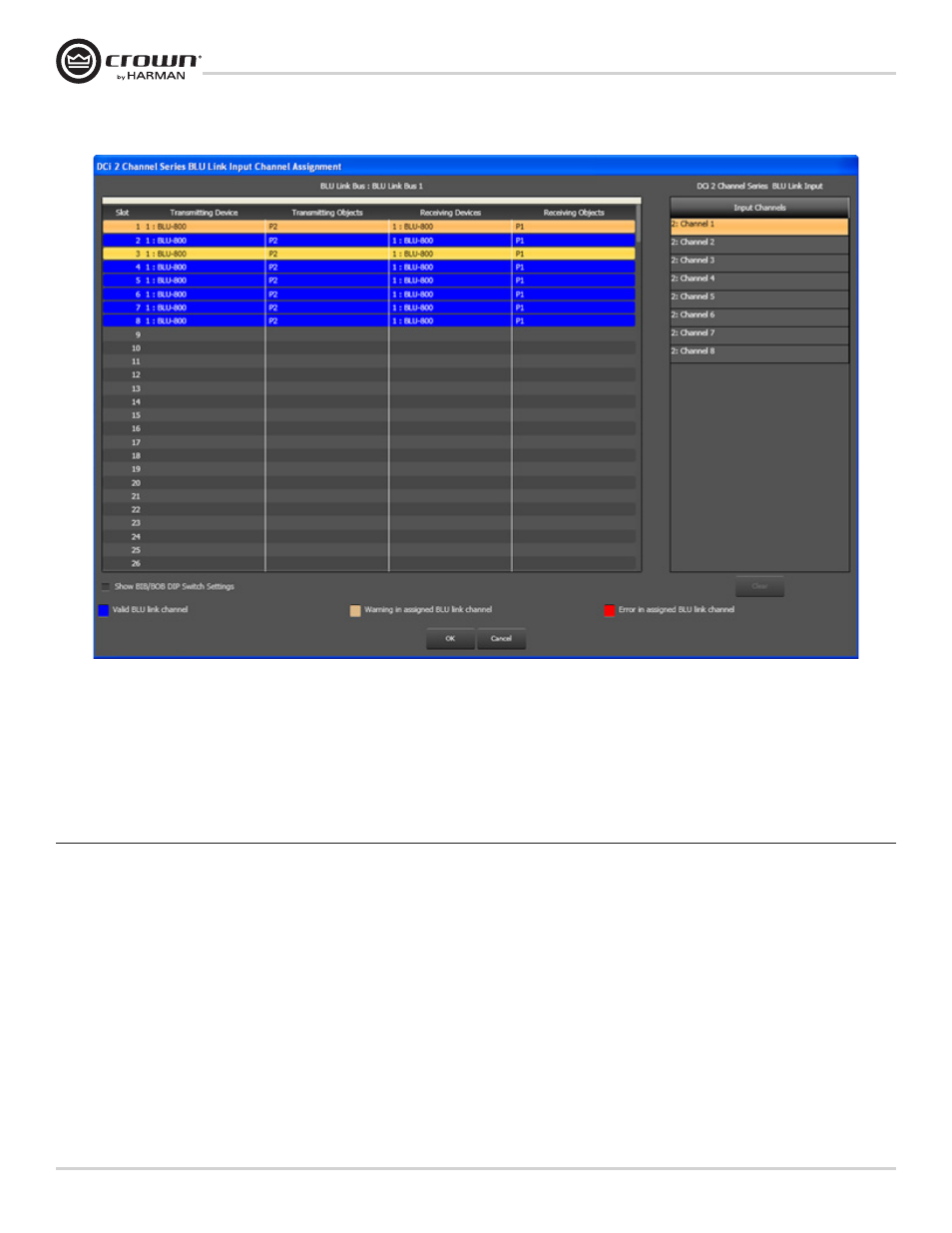

Figure 21 BLU Link Input Channel Assignment
BLU Link Routing
Double-clicking on the BLU Link Routing button opens the BLU Link channel assignment dialogue. The DCI-N amplifiers have 8 'slots' available for receiving a BLU Link
audio stream, which can then be sent to any one of the channels in the amplifier via the Source Routing panel. Click and drag a stream from the list of slots on the left, and
drop it into one of the 8 channel slots available on the right side of the dialogue labeled Output Channels. Then go to Source Routing to assign that audio stream to an
amplifier channel by selecting BLU-Link Input 1 through 8 from the dropdown menus presented.
Output Configuration
Double-clicking on the BLU Link Routing button opens the BLU Link channel assignment dialogue. The DCI-N amplifiers have 8 'slots' available for receiving a BLU Link
audio stream, which can then be sent to any one of the channels in the amplifier via the Source Routing panel. Click and drag a stream from the list of slots on the left, and
drop it into one of the 8 channel slots available on the right side of the dialogue labeled Output Channels. Then go to Source Routing to assign that audio stream to an
amplifier channel by selecting BLU Link Input 1 through 8 from the dropdown menus presented.
