Set-up and System Configuration
Bridge Mode (16, 8, or 4 Ohm) Output Operation
Typical input and output wiring, along with software settings
are shown in Figure 13.
INPUT WIRING: If using analog inputs, it is only necessary
to wire the odd number inputs. If using the BLU Link input,
it is important to understand that BLU Link is a digital audio
bus and cannot be routed through a network switch or router.
To increase fault protection, use both the input and output
BLU Link wiring connection. For BLU Link routing, refer to
page 25.
OUTPUTS: Connect the speaker across the positive terminals
of each channel pair. Do not use the negative terminals of
the channel pair when the pair is being operated in Bridge-
Mono mode.

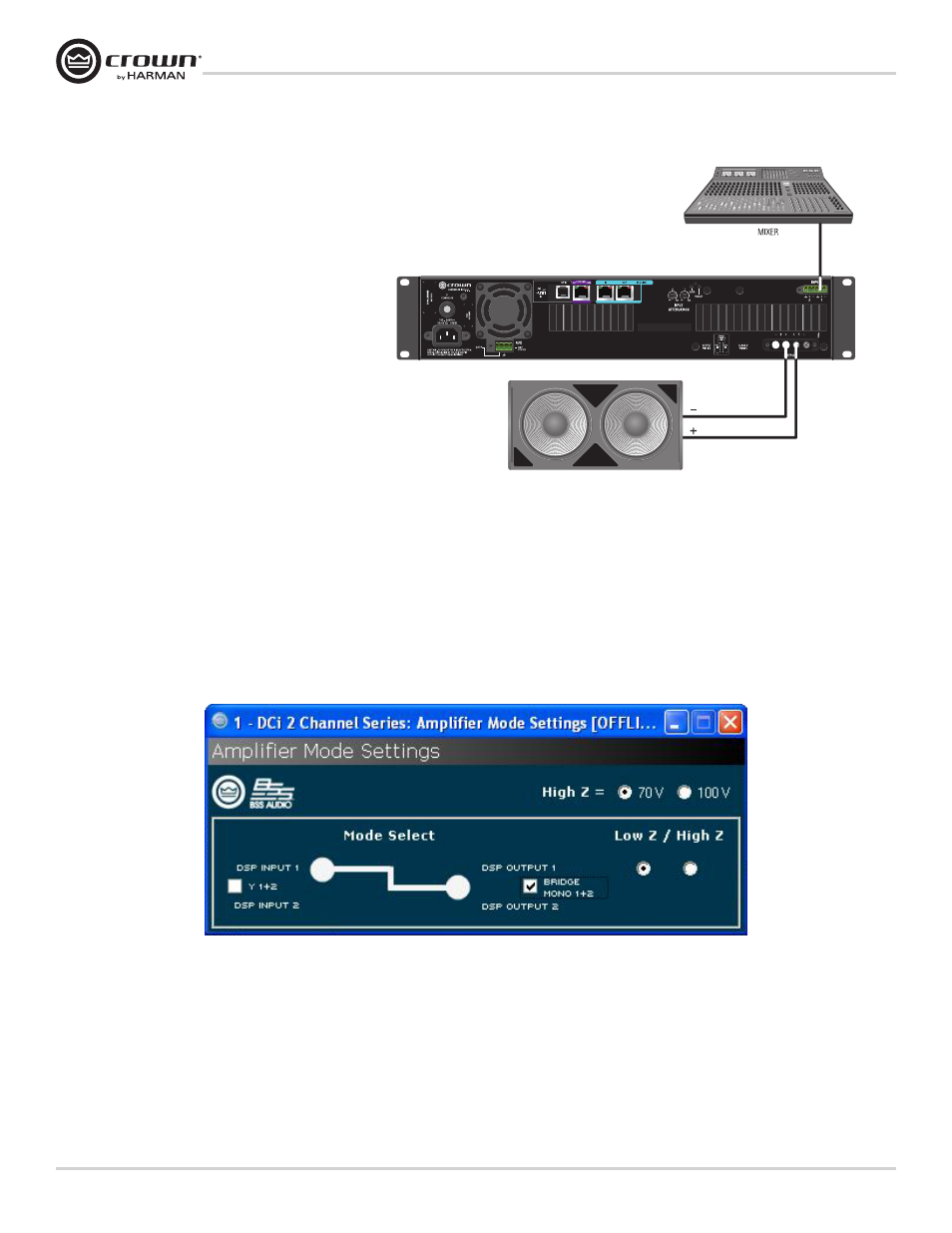

Figure 13 System Wiring Bridge Mode
Figure 13 The bridge mono checkbox must be checked for proper operation
Always route the input and output wires in separate bundles.
