Bridge Mono Operation
The DriveCore Install amplifier outputs can be bridged to increase the power and voltage available at the output of the amplifier. The amplifier can be bridged in the Amplifier
Mode window. By selecting the bridging option, only the first input channel will need to be wired. (See Figure 11). Low-Z and High-Z options are still available.
NOTE:If the amplifier output is in bridge mono and the High-Z option is selected, the amplifier will produce 140Vrms or 200Vrms.
Set-up and System Configuration
NOTE: By selecting Mono Bridge output, only one channel in the channel pair DSP will be available (See Figure 11).

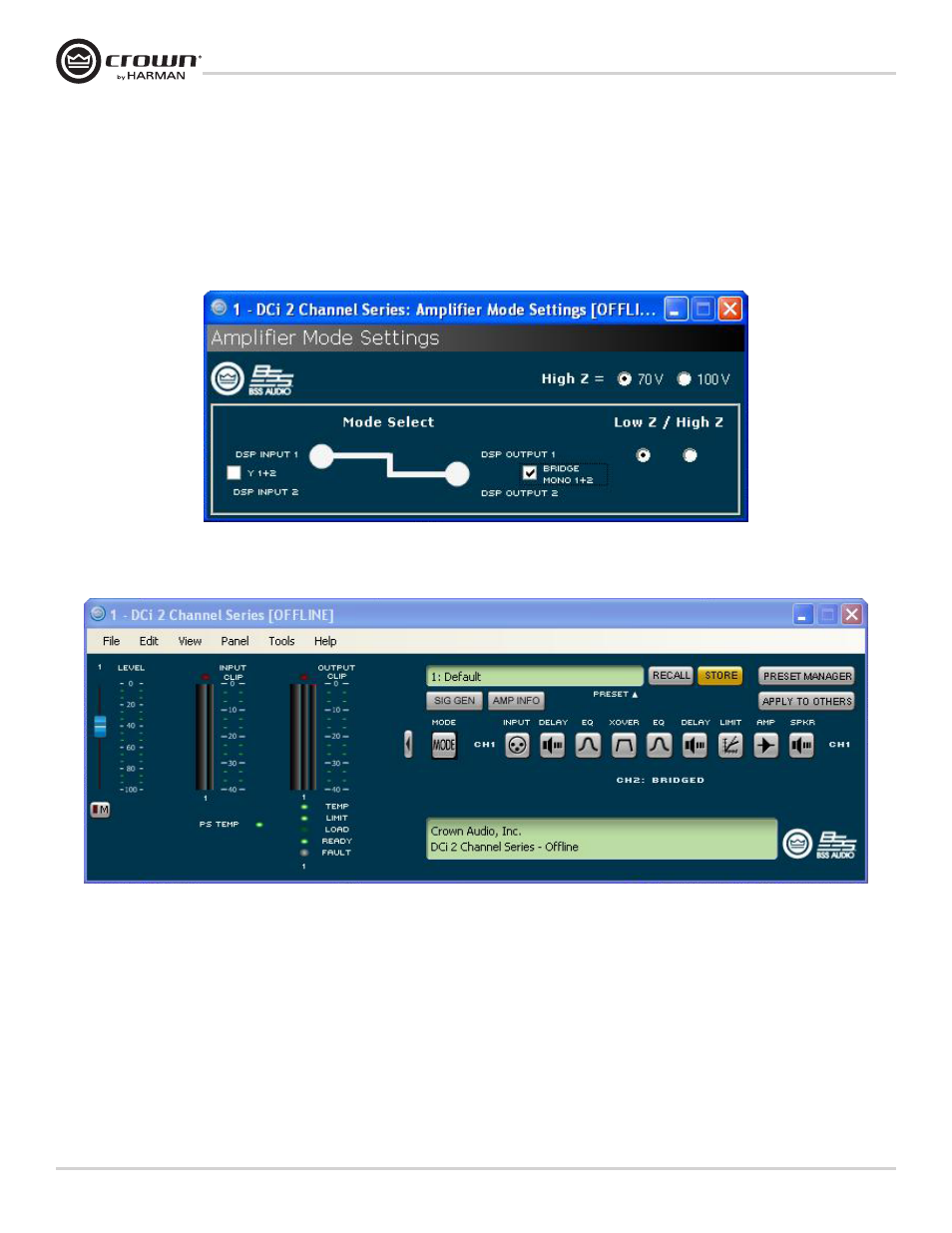

Figure 11
Figure 11
