S&B Filters Cold Air Intake Kit - Cotton Filter 75-5057 - Manual

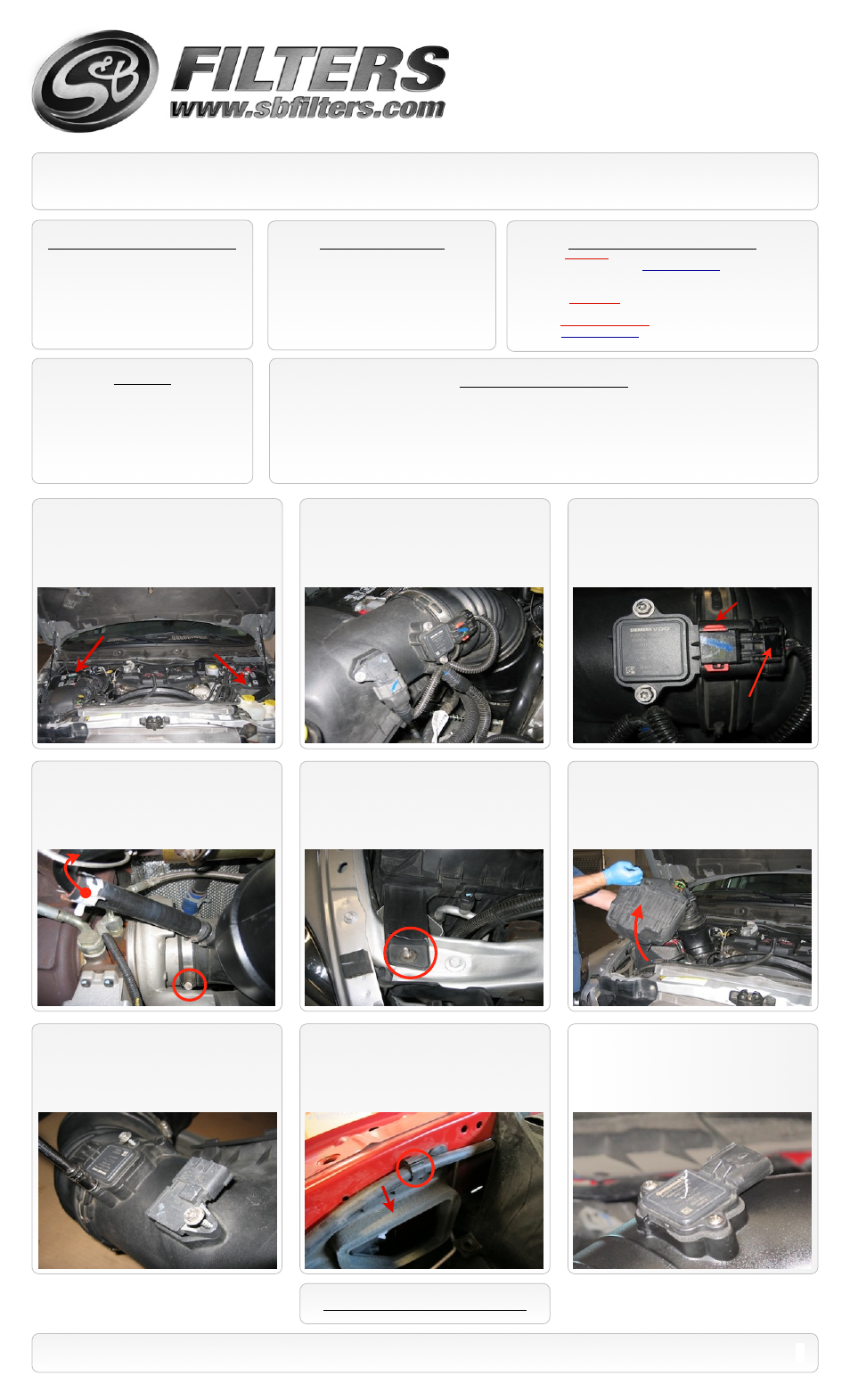

1. With the ignition switched off and the
parking brake set, disconnect the negative
battery cables on both batteries. (Failure to
disconnect the batteries may result in a
Check Engine Light)
INSTALLATION INSTRUCTIONS
VEHICLE APPLICATION
Year: 2010-12
Make: DODGE
Model: RAM 2500/ 3500
Engine: 6.7L TURBO DIESEL
15461 Slover Ave., Fontana, CA 92337 - Phone: (909) 947-0015 - Fax: (909) 947-0603 - www.sbfilters.com
4.
Loosen the hose clamp at the turbo inlet,
next pinch the spring clamp and slide it up the
steel piping. Then disconnect the silicone
hose from the steel piping and remove spring
clamp.
7.
Carefully remove both sensors from the
stock air box and set them aside for now.
2.
Disconnect the electrical connection for
the Intake Air Temp. (IAT) Sensor and the
Mass Air Flow (MAF) Sensor then unsnap the
wire loom from the tube. (See the next step
for removal)
5.
Remove the mounting nut on the stock air
box.
8.
Remove the plastic clip holding the
coolant overflow tube to the fender. Remove
the clip from the tube and rest the tube on the
air inlet foam.
3.
For the MAF sensor, Slide the red locking
tab up then depress the black lever while
disengaging the connector. For the IAT
sensor just depress the
grey lever while
disengaging the connector.
6.
Lift up and out to remove the stock air
box assembly from the vehicle.
9.
Use the supplied 8-32 SS Screws (F)
and Sensor Gasket (E) , and install the MAF
sensor into Intake Tube (C) . Do not over
tighten.
P/N: 75-5057 / 75-5057D
SEE EXPLODED VIEW ON PAGE 4
1
Locking Tab
Lever
TOOLS REQUIRED
• 7mm, 8mm &10mm Wrench & Socket
• 7/16” Wrench & Socket
• 5/16” Nut Driver or Flat Blade Screwdriver
• Phillips Screwdriver, Pliers or Channel locks
NOTES
Kit may not fit with the following
Aftermarket Parts installed:
• Body Lift or Lowering Kit
• Custom Hood
• Intercooler or Turbo upgrades
S&B FILTER MAINTENANCE
Cleanable (KF-1053) . If the enclosed filter is Red, it came pre-oiled
from the factory. Please visit www.sbfilters.com for the exact oil
amount required after cleaning.
Disposable (KF-1053D) . If the enclosed filter is White, it is a
disposable filter and should be discarded once it reaches capacity.
This filter
(does not require oil) . For more info on S&Bʼs disposable
filter, visit www.sbfilters.com .
BEFORE YOU START
• Please read the entire product guide before proceeding.
• Ensure all components listed on page 4 are present.
• If you are missing any of the components, call our customer support at (909) 947-0015.
• Do not work on your vehicle while engine is hot.
• Make sure the engine is turned off and the vehicle is in Park or the Parking Brake is set.
