Installation Instructions (continued)

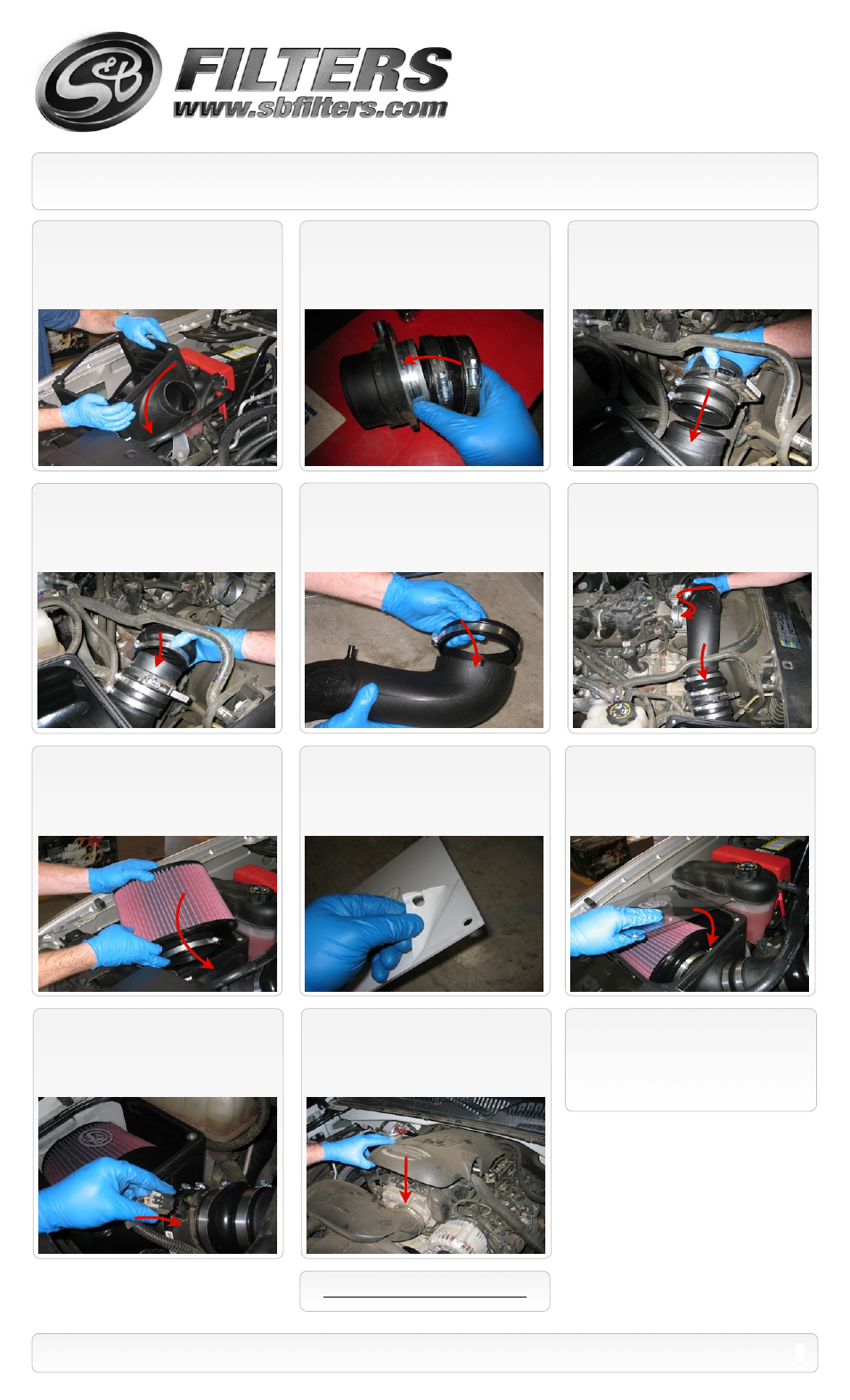

10.
Place the air box assembly into the
vehicle, align the four holes with the OE
mounting locations and secure using either
the OE bolts or the supplied allen head
screws and SS washers.
14.
Slide the Throttle Body Adapter
(O)
over
the Intake Tube
(M)
along with the #72 Hose
Clamp
(N)
, do not fully tighten at this time.
19.
Reconnect the MAF sensor electrical
connection.
11.
Slide the Straight Adapter
(F)
over the
MAF sensorʼs metal flange, secure using a
#60 Hose clamp
(J)
.
15.
Place another #60 Hose clamp
(J)
on the Hump
Adapter
(L)
then insert the small end of the Intake Tube
(M)
into the Hump Adapter. Then position the other end
of the tube over the throttle body and firmly secure the
#72 Hose Clamp
(N)
, then secure the #60 Hose Clamp
(J)
at the hump adapter.
12.
Connect the MAF sensor assembly to
the Filter Adapter
(I)
and secure using a #60
Hose clamp
(J)
.
16.
Carefully place the S&B Air Filter
(D)
into the Air Box
(G)
, rotate the filter about a
1/4 turn for clearance and slide onto the
flange and secure the #80 Hose clamp
(E)
.
20.
Re-Install the cover removed in
Step #2.
13.
Slide the Hump Adapter
(L)
over the
MAF sensorʼs plastic flange and secure using
a #60 Hose clamp
(J)
.
17.
Remove the protective covering from
the Clear Lid
(C)
.
SEE EXPLODED VIEW ON PAGE 4
2
P/N: 75-5036 / 75-5036D
18.
Place the Clear Lid
(C)
on the Air Box
(G)
and secure using the 10/24 SS Screws
(A)
and SS Washers
(B)
.
21.
Reconnect both batteries. Inspect your
installation, make sure the kit is properly
positioned and all fasteners are secure. Affix
the CARB sticker near the intake kit. The
installation is now complete.
