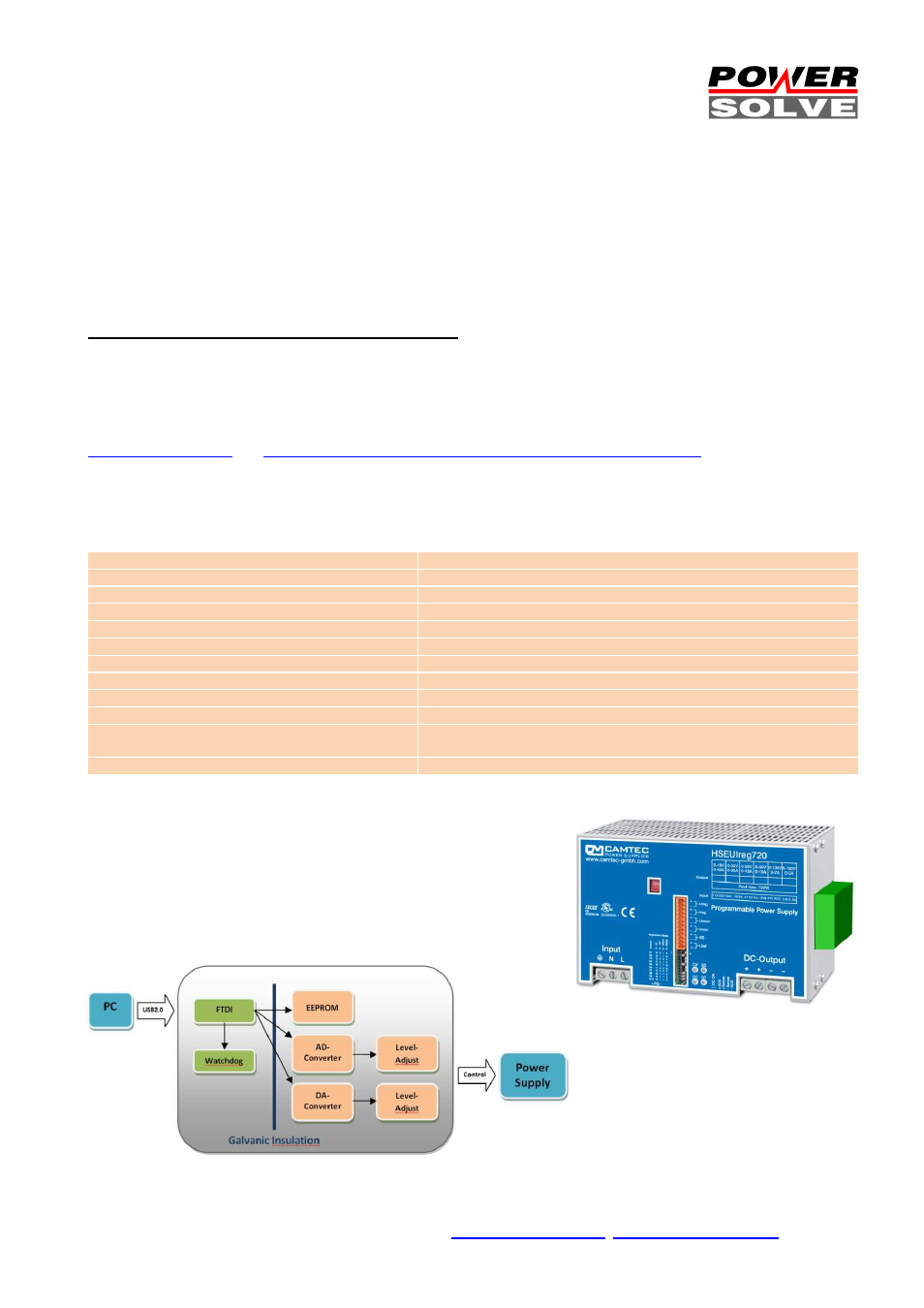

USB2.0 UI.Drive-Interface for HSEUIreg
UI.Drive Software for UIreg Power Supply Series
General Description of UI.Drive Software Tool
The main sections of this document are the features and the programming. Descriptions of the individual modules of the
software are available in the help-file under Functions. The header Programming lists the program features in a tabular
format. Interface, documents how to access the ToolMonitor. The respective modules specify the valid transfer parameters
of the functions. This software has been developed by MCD Elektronik GmbH / Germany. For further information how to
use the UI.Drive software, e.g. with the MCD TestManager CE, and for information about MCD Elektronik, please visit
www.mcd-elektronik.de and www.mcd-elektronik.com/kunden/camtec/CAMTEC_USB_Interface.zip
USB2.0 UI.Drive-Interface Technical Data
Supply Voltage +5V provided by USB port from the connected computer
Current Consumption 115mA typical
Insulation USB-Interface to Power Supply Output 3000Vac / 4300Vdc
Insulation USB-Interface to PE 500Vdc
Insulation Power Supply Output to PE 2000Vac / 2900Vdc
AD/DA Converter resolution 12 Bit
AD Converter accuracy ± 0,05% 15ppm/°C
Monitor Output Accuracy ± 0,5% max.
Control Input Accuracy ± 0,8% max.
Data-Flow Control/Monitor 400ms interval, power supply remote on/off occurs immediately
LED Signal Light = power on ———
Flash = send/receive data - - - - -
Required Space 22,1 mm (width assembled to power supply unit)
