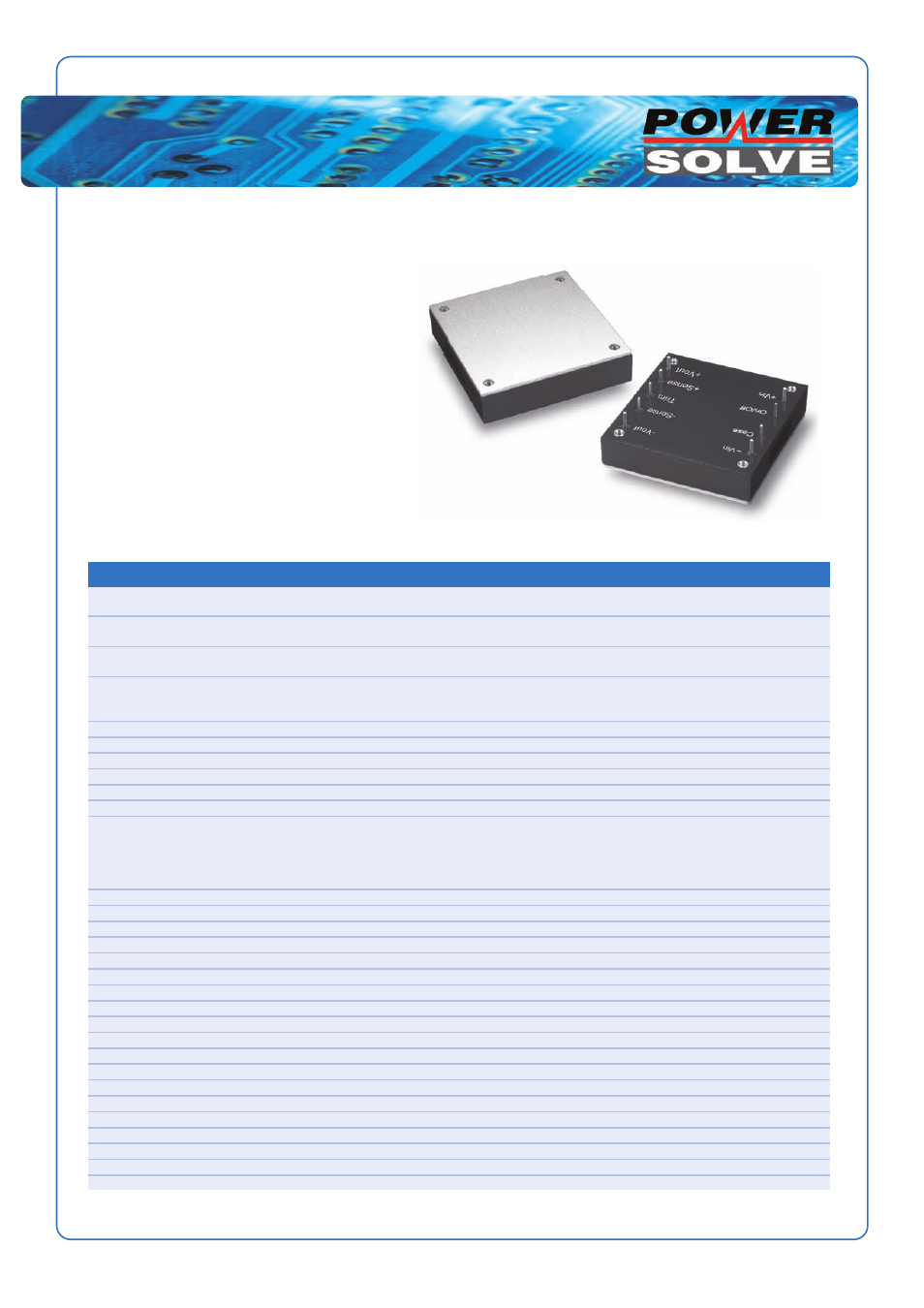

High Density DC-DC Modules
PS200W Series
132-200 Watt
DC-DC Converters
Single Output
Input Voltage Range 24V input models: 10 ~ 36V
48V input models: 18 ~ 75V
Input Surge Voltage (100ms max.) 24V input models: 50VDC max.
48V input models: 100VDC max.
Undervoltage Lockout 24V input models: 9.5V (power up) / 8.5V (power down)
48V input models: 17V (power up) / 16V(power down)
Positive Logic Remote ON/OFF Open collector ref. to -Input
Module ON: >3.5VDC to 75VDC or open circuit, Module OFF: <1.2VDC
Add suffix N to the Model Number for Negative Logic Remote ON/OFF control
Input Filter PI Type
Output Voltage See tables
Output Current See tables
Voltage Accuracy ±1.5% max.
Transient Response <500µsec for a 25% step load change
External Trim Adj. Range ±10%
Ripple & Noise, 20MHz BW 40mV RMS max, 100mV pk-pk max. (3.3V & 5V output versions)
60mV RMS max, 150mV pk-pk max. (12V & 15V output versions)
100mV RMS max, 240mV pk-pk max. (24V output versions)
150mV RMS max, 480mV pk-pk max. (48V output versions)
measured with a 10µF tantalum & 1.0µF ceramic capacitor across the output
Temperature Coefficient ±0.03%/°C
Short Circuit Protection Continuous
Line Regulation ±0.2% max. measured over the full input voltage
Load Regulation ±0.2% max. measured from 0-100% load
Over Voltage Protection trip range 115% ~ 140% of nominal output voltage
Current Limit 110% ~ 150% of nominal output current
Star Up Time 120ms typical
Efficiency See table
Isolation Voltage IP/OP, IP/Case, OP/Case: 1500VDC min
Isolation Resistance 10 7 ohms min.
Isolation Capacitance 2000pF typical
Switching Frequency 250KHz typical
Operating Case Temperature -40°C to +100°C
Storage Temperature -55°C to +105°C
Thermal Shutdown, Case Temp. +110°C Typ.
Humidity 95% RH max. non-condensing
Dimensions 2.28 x 2.40 x 0.52 inches (57.9 x 61.0 x 13.2 mm)
Weight 114g
Case Material Aluminium baseplate with plastic case
Electrical Specification
Features
• Ultra wide 4:1 Input Range
• Half brick package
• Efficiency to 89%
• Regulated Outputs
• Continuous Short Circuit Protection
• Overvoltage, Overload & Over temperature Protections
• Remote On/Off control
