Ac-dc power modules – Powersolve TML Series User Manual
Page 3
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
www.powersolve.co.uk
AC-DC Power Modules

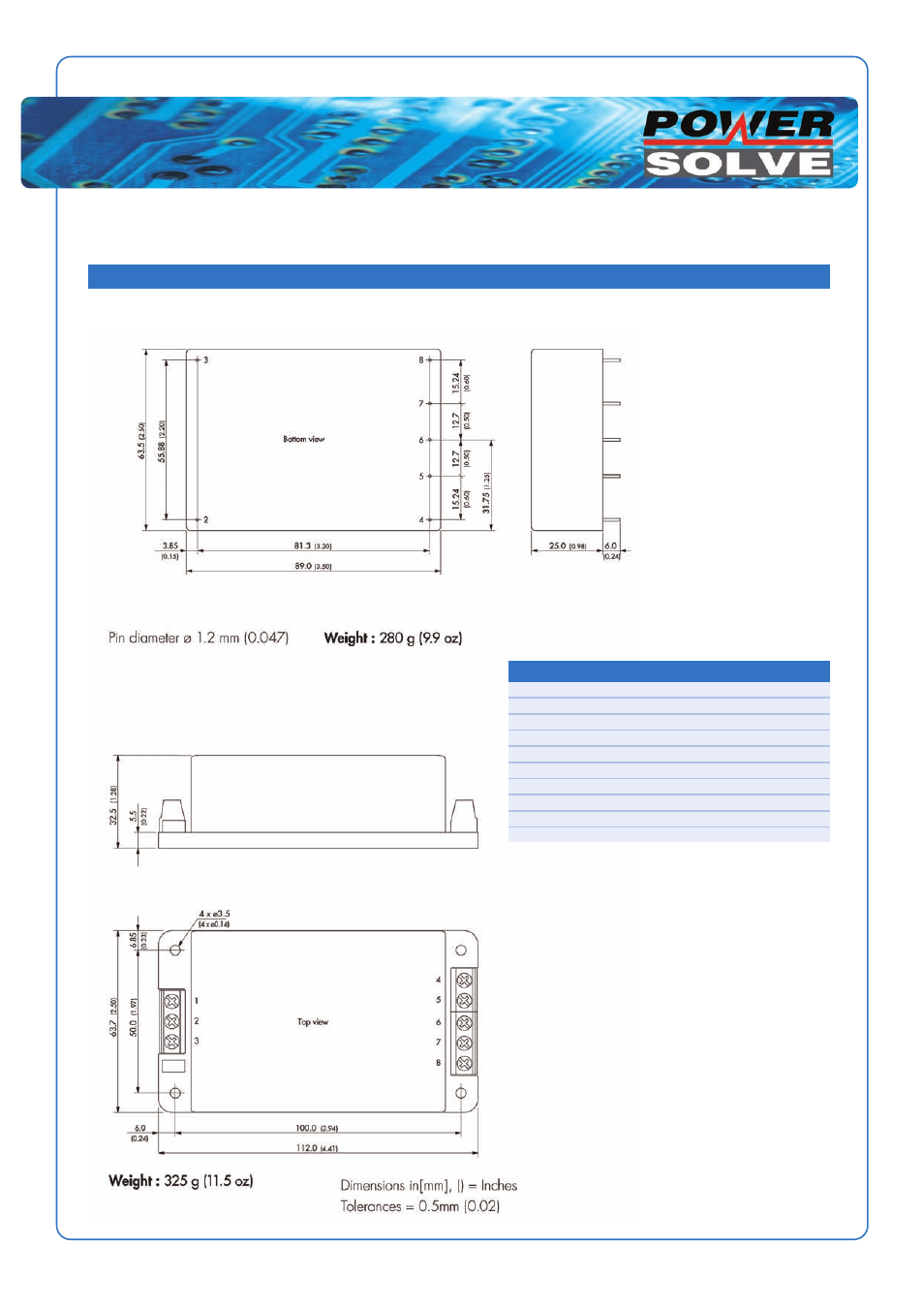

Mechanical and Connection Details (cont.)
Pin Out
Pin
Single
Dual sym. Dual asym.
Triple
Output
Output
Output
Output
1
No pin / No conn.
2
AC in (L)
3
AC in (N)
4
+Vout
Vout1
+Vout2
Vout2
5
No pin/nc
No pin/nc
+Vout1
+Vout1
6
-Vout
Comm.
-Vout2
Comm.
7
No pin/nc
No pin/nc
-Vout1
-Vout1
8
nc
Vout2
No pin/nc
Vout3
TML40 Models - for PCB mount
TML40C Models - for chassis mount
