Ac-dc power modules – Powersolve TML Series User Manual
Page 2
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
www.powersolve.co.uk
AC-DC Power Modules

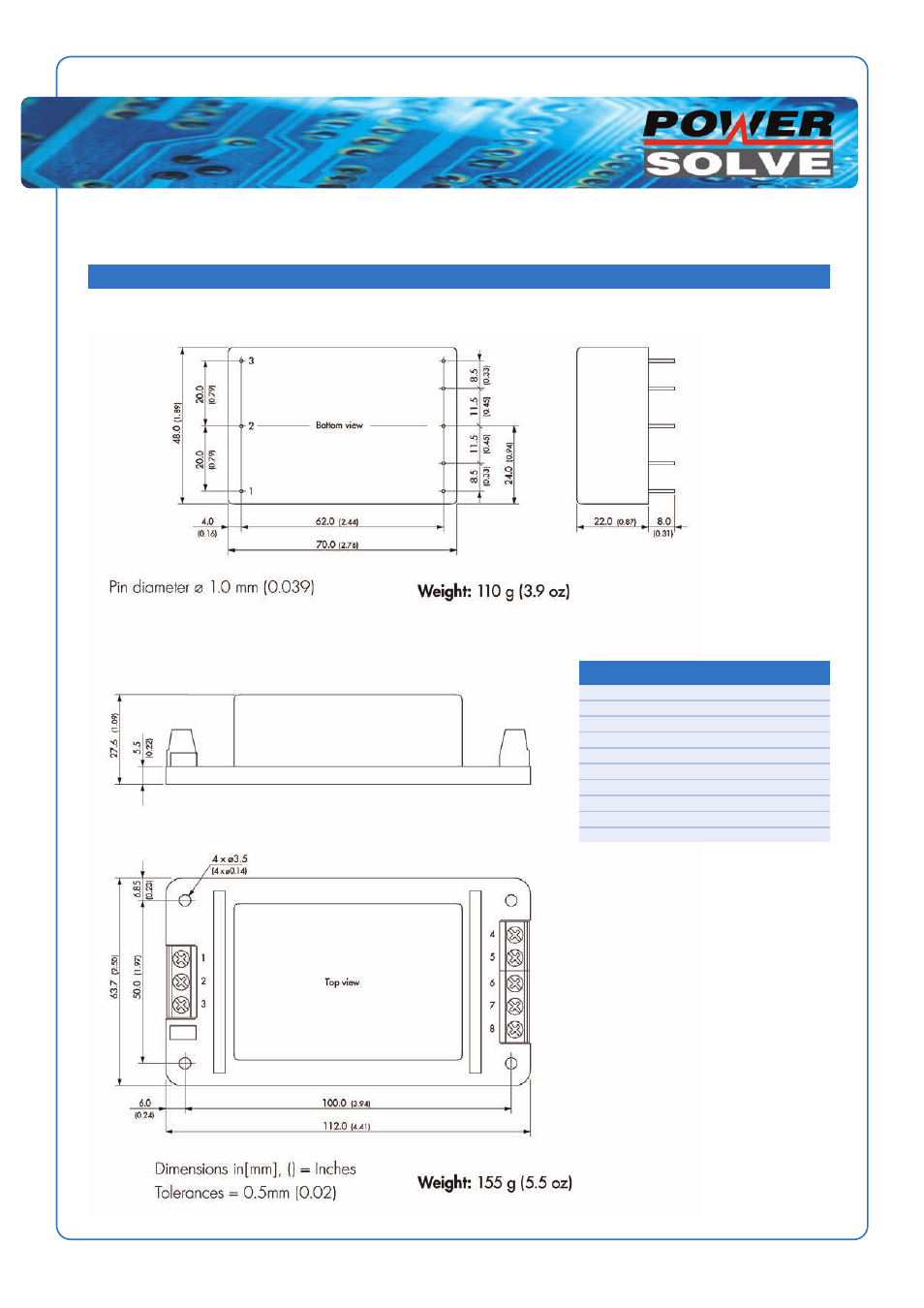

Mechanical and Connection Details
Pin Out
Pin
Single
Dual
Triple
Output
Output
Output
1
FG
2
AC in (N)
3
AC in (L)
4
No pin/nc
No pin/nc
Vout3
5
-Vout
Vout2
Comm.
6
No pin
Comm.
Vout2
7
+Vout
Vout1
+Vout1
8
No pin
No pin
-Vout1
TML20 Models - for PCB mount
TML20C Models - for chassis mount
