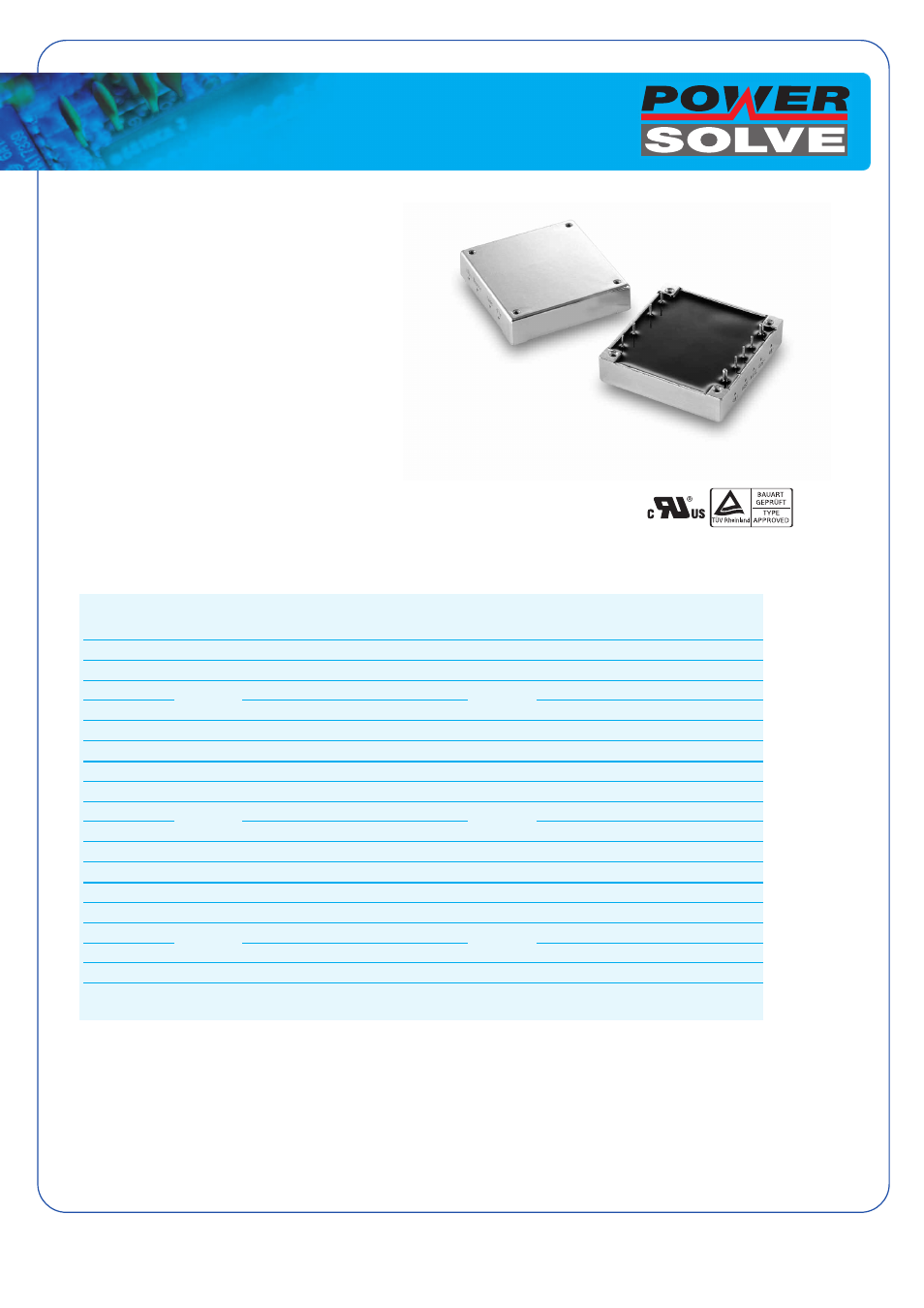

Powersolve PS50 Series - Manual

Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
www.powersolve.co.uk
High Density DC-DC Modules
PS50 Series
25 to 50 Watt Wide Input
DC-DC Converters
Single Output
Features
• 25W/50W Isolated Output
• Efficiency to 85%
• 300KHz Switching Frequency
• 2 : 1 Input Range
• Regulated Outputs
• Continuous Short Circuit Protection
• Five-Sided Metal Case
MODEL INPUT OUTPUT OUTPUT INPUT CURRENT %EFF
VOLTAGE VOLTAGE CURRENT NO LOAD FULL LOAD
PS50-12S25 2.5 VDC 10 A 2740 mA 76
PS50-12S33 3.3 VDC 10 A 3525 mA 78
PS50-12S05 5 VDC 10 A 5145 mA 81
PS50-12S12 12 VDC 4.16 A 4950 mA 84
PS50-12S15 15 VDC 3.33 A 4950 mA 84
PS50-12S24 24 VDC 2.08 A 4950 mA 84
PS50-24S25 2.5 VDC 10 A 1353 mA 77
PS50-24S33 3.3 VDC 10 A 1740 mA 79
PS50-24S05 5 VDC 10 A 2540 mA 82
PS50-24S12 12 VDC 4.16 A 2450 mA 85
PS50-24S15 15 VDC 3.33 A 2450 mA 85
PS50-24S24 24 VDC 2.08 A 2419 mA 86
PS50-48S25 2.5 VDC 10 A 676 mA 77
PS50-48S33 3.3 VDC 10 A 870 mA 79
PS50-48S05 5 VDC 10 A 1250 mA 83
PS50-48S12 12 VDC 4.16 A 1220 mA 85
PS50-48S15 15 VDC 3.33 A 1220 mA 85
PS50-48S24 24 VDC 2.08 A 1209 mA 86
NOTE: 1. Nominal Input Voltage 12, 24 & 48 VDC
1
Only for Nominal Input Voltage 24 & 48 VDC
9-18VDC
18-36VDC
36-75VDC
50 mA
50 mA
50 mA
