Industrial Power Supplies
Output Voltage and Current Ratings
MODEL
OUTPUT VOLTAGE
MAX OUTPUT
VOLTAGE
RIPPLE &
LINE
LOAD
POWER
EFF.
Preset
Range
CURRENT
TOLERANCE
NOISE
REG.
REG.
Max.
PDN10-12
12V
10.8 - 13.2V
0.84A
±1%
100mV
±1.0%
±1.0%
10.08W
81%
PDN10-15
15V
13.5 - 16.5V
0.67A
±1%
100mV
±1.0%
±1.0%
10.05W
81%
PDN10-24
24V
21.6 - 26.4V
0.42A
±1%
120mV
±1.0%
±1.0%
10.08W
81%
PDN20-12
12V
10.8 - 13.2V
1.7A
±1%
100mV
±1.0%
±1.0%
20.4W
83%
PDN20-15
15V
13.5 - 16.5V
1.4A
±1%
100mV
±1.0%
±1.0%
21W
85%
PDN20-24
24V
21.6 - 26.4V
1A
±1%
120mV
±1.0%
±1.0%
24W
86%
PDN40-12
12V
10.8 - 13.2V
3.4A
±1%
100mV
±1.0%
±1.0%
40.8W
84%
PDN40-15
15V
13.5 - 16.5V
2.7A
±1%
100mV
±1.0%
±1.0%
40.5W
84%
PDN40-24
24V
21.6 - 26.4V
1.7A
±1%
120mV
±1.0%
±1.0%
40.8W
84%
PDN40-48
48V
43.2 - 52.8V
0.85A
±1%
180mV
±1.0%
±1.0%
40.8W
85%
PDN60-12
12V
10.8 - 13.2V
5A
±1%
100mV
±1.0%
±1.0%
60W
86%
PDN60-15
15V
13.5 - 16.5V
4A
±1%
100mV
±1.0%
±1.0%
60W
87%
PDN60-24
24V
21.6 - 26.4V
2.5A
±1%
120mV
±1.0%
±1.0%
60W
87%
PDN60-48
48V
43.2 - 52.8V
1.25A
±1%
180mV
±1.0%
±1.0%
60W
88%
PDN100-12
12V
10.8 - 13.2V
7.5A
±1%
180mV
±1.0%
±2.0%
90W
87%
PDN100-15
15V
13.5 - 16.5V
6.4A
±1%
180mV
±1.0%
±2.0%
96W
87%
PDN100-24
24V
21.6 - 26.4V
4A
±1%
180mV
±1.0%
±2.0%
96W
88%
PDN100-48
48V
43.2 - 52.8V
2A
±1%
250mV
±1.0%
±2.0%
96W
87%
Notes.
1. All parameters NOT specifically mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1µF ceramic & 47µF electrolytic parallel capacitors.
3. Tolerance includes set up tolerance, line regulation and load regulation.
4. De-rating mat be needed under low input voltages. Check the de-rating curve for more details.
5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
6. In parallel connection, only one unit may operate if the output load is less than 5% of rated output load.

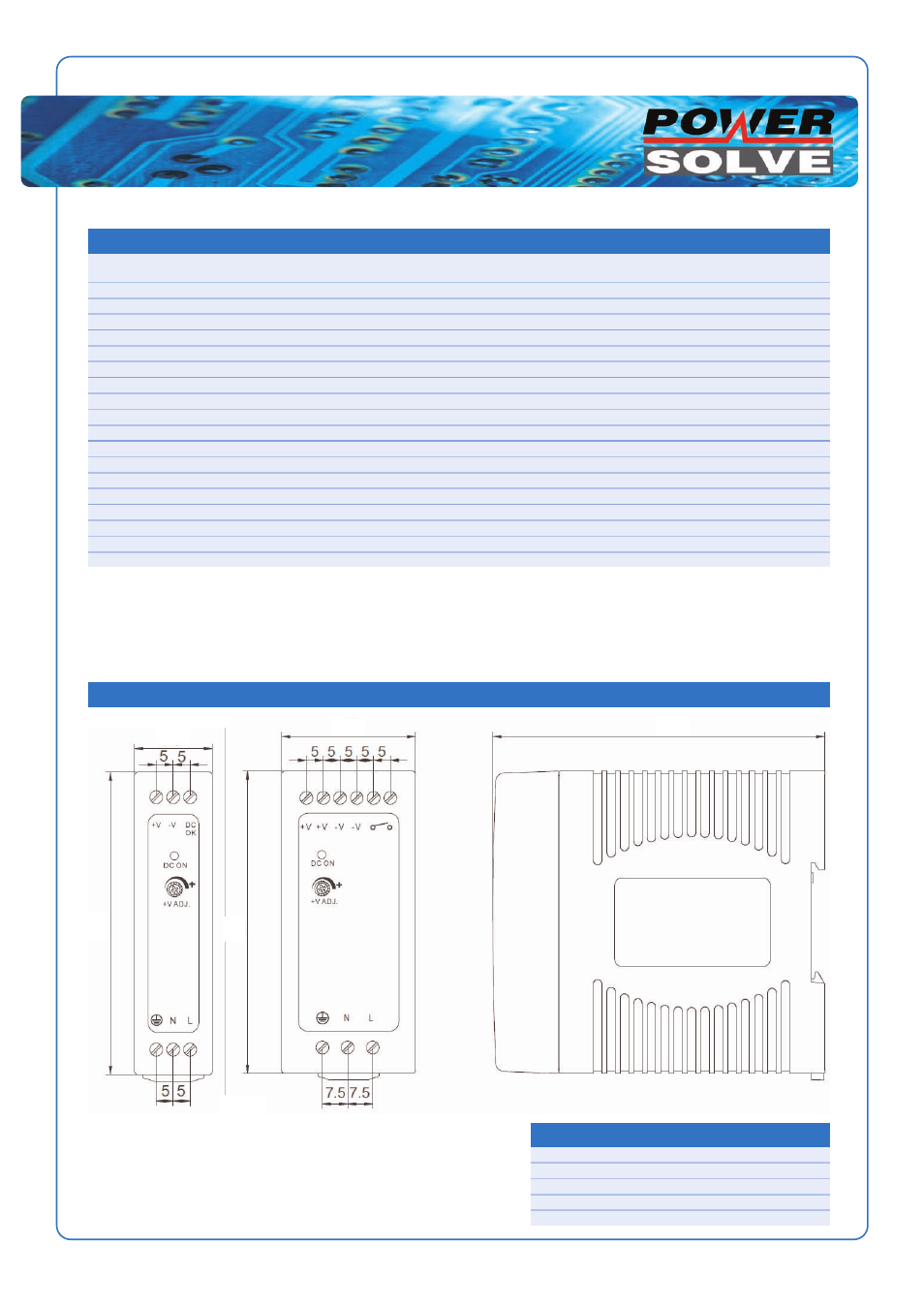

Mechanical & Connection Details
W
W
D
H
H
PDN10, PDN20
PDN40, PDN60, PDN100
Dimensions
Model
Width (W) Height (H) Depth (D)
PDN10 & PDN20
23
90
99
PDN40 & PDN60
40
90
99
PDN100
55
90
99
All dimensions in mm
