Powersolve PMP20 Series - Manual (Page 2)

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
www.powersolve.co.uk
AC-DC Converter
Output Voltage and Current Ratings
MODEL OUTPUT VOLTAGE MAX OUTPUT VOLTAGE RIPPLE & LINE LOAD POWER EFF.
Preset Adj. Range CURRENT TOLERANCE NOISE REG. REG. Max.
PMP05-05 5V ±10% 1A ±2% 100mVpk-pk ±0.5% ±1% 5W 71%
PMP05-12 12V ±10% 0.42A ±1% 150mVpk-pk ±0.5% ±0.5% 5.04W 75%
PMP05-15 15V ±10% 0.33A ±1% 150mVpk-pk ±0.5% ±0.5% 4.95W 75%
PMP05-24 24V ±10% 0.21A ±1% 240mVpk-pk ±0.5% ±0.5% 5.04W 77%
PMP10-05 5V ±10% 2A ±2% 80mVpk-pk ±0.5% ±1% 10W 77%
PMP10-12 12V ±10% 0.83A ±1% 150mVpk-pk ±0.5% ±0.5% 9.96W 79%
PMP10-15 15V ±10% 0.66A ±1% 150mVpk-pk ±0.5% ±0.5% 9.9W 80%
PMP10-24 24V ±10% 0.42A ±1% 240mVpk-pk ±0.5% ±0.5% 10.08W 82%
PMP15-05 5V ±10% 3A ±2% 80mVpk-pk ±1% ±1% 15W 79%
PMP15-12 12V ±10% 1.25A ±1% 150mVpk-pk ±0.5% ±0.5% 15W 82%
PMP15-15 15V ±10% 1.0A ±1% 150mVpk-pk ±0.5% ±0.5% 15W 84%
PMP15-24 24V ±10% 0.63A ±1% 240mVpk-pk ±0.5% ±0.5% 15.12W 85%
PMP20-05 5V ±10% 4A ±2% 80mVpk-pk ±0.5% ±1% 20W 77%
PMP20-12 12V ±10% 1.66A ±1% 150mVpk-pk ±0.5% ±0.5% 19.92W 82%
PMP20-15 15V ±10% 1.33A ±1% 150mVpk-pk ±0.5% ±0.5% 19.95W 84%
PMP20-24 24V ±10% 0.84A ±1% 240mVpk-pk ±0.5% ±0.5% 20.16W 85%

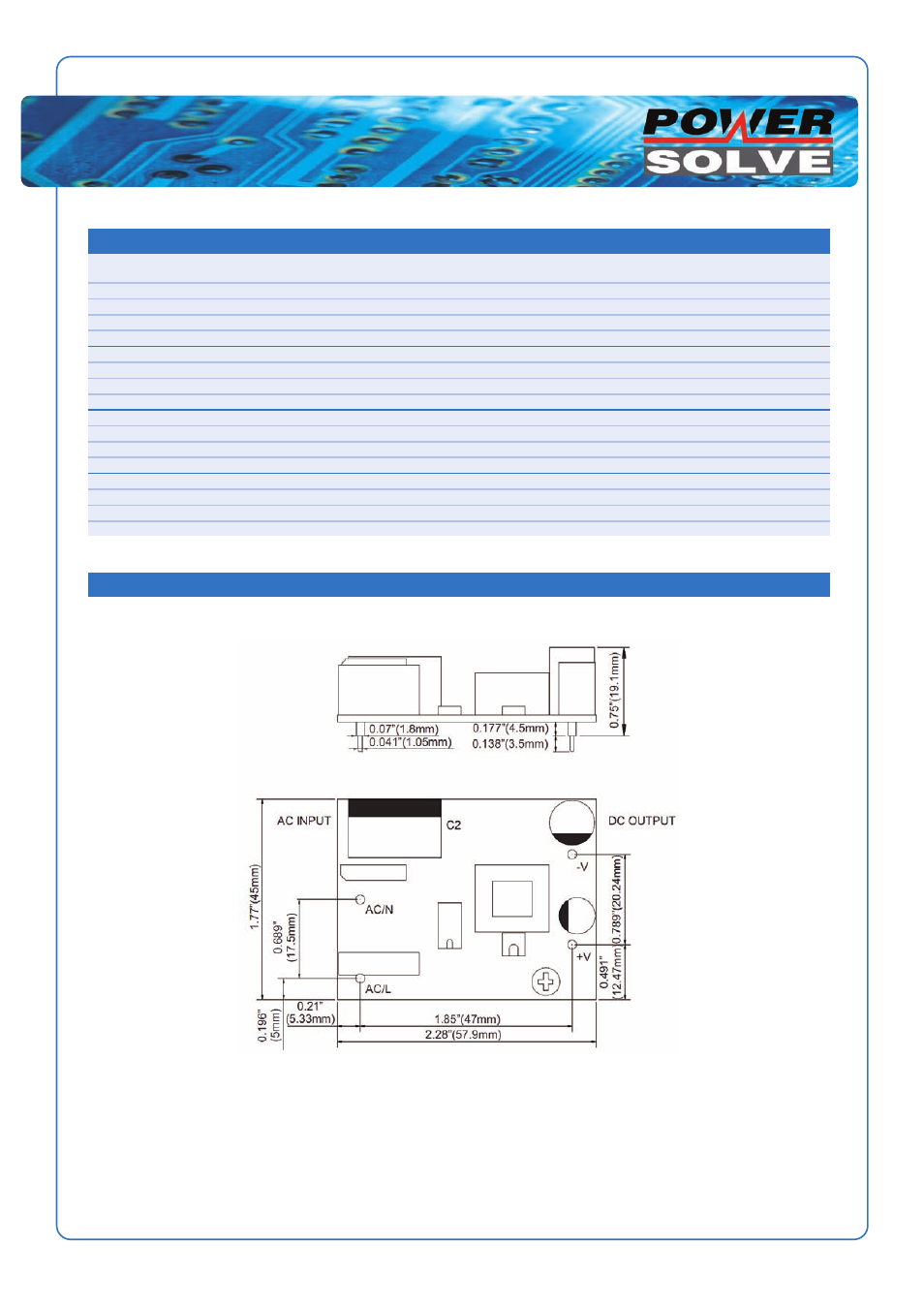

Mechanical Details
PMP05 Series: 57.9(L) x 45(W) x 19.1(H)mm
