Powersolve PMP20 Series - Manual

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
AC-DC Converter
Input Voltage 85-264VAC full range, 47-63Hz / 125-373VDC
AC Input Current (typ.) 0.13A at 115VAC / 0.08A at 230VAC (PMP05)
0.25A at 115VAC / 0.15A at 230VAC (PMP10)
0.35A at 115VAC / 0.2A at 230VAC (PMP15)
0.6A at 115VAC / 0.4A at 230VAC (PMP20)
Inrush Current 25A at 115VAC / 45A at 230VAC (PMP05 & PMP10)
30A at 115VAC / 50A at 230VAC (PMP15)
30A at 115VAC / 65A at 230VAC (PMP20)
Output Voltage See Table
Output Current See Table
Overload Protection >110% of rated output power. Hiccup mode, recovers automatically when fault is removed
Overvoltage Protection 115-145% (115-150% PMP20) rated output voltage. Output latches off
Operating Temperature Range -20°C to +70°C. Above 50°C, derate linearly to 50% load at 70°C
Operating Humidity 20-90% RH non-condensing
Storage Temperature Range -40°C to +85°C
Storage Humidity 10-95% RH non-condensing
Temperature Coefficient ±0.03%/°C (0-50°C)
Vibration 10-500Hz, 2G 10 min/1 cycle, for 60 mins, along X,Y & Z axis
Safety Standards UL60601-1, TUV EN60601-1 / IEC60601-1 approved
Green Energy CEC Single Voltage External AC-DC & AC-AC power supplies eligibility criteria (version 1.1)
Withstand Voltage I/P-O/P: 4KVAC
Isolation Resistance I/P-O/P: 100MΩ / 500VDC
EMI Conduction & Radiation EN55011: 2007+A2 : 2007 Class B
Harmonic Current EN61000-3-2: 2006 Class A, EN61000-3-3 : 1995+A1 : 2005
EMS Immunity EN61000-4-2, 3, 4, 5, 6, 8, 11, EN60601-1-2: 2001+1: 2006 Life Supporting Equipment
MTBF 217.4kHrs compliance to MIL-HDBK-217F (PMP05)
210.2kHrs compliance to MIL-HDBK-217F (PMP10)
206.3kHrs compliance to MIL-HDBK-217F (PMP15)
188.3kHrs compliance to MIL-HDBK-217F (PMP20)
Dimensions 57.9(L) x 45(W) x 19.1(H) mm (PMP05)
65(L) x 45(W) x 22(H) mm(PMP10)
70(L) x 48(W) x 22(H) mm (PMP15)
88.9(L) x 50.8(W) x 19.3(H) mm (PMP20)
Weight 0.033Kg (PMP05)
0.045Kg (PMP10)
0.062Kg (PMP15)
0.076Kg (PMP20)
Electrical Specification
Notes:
1. All parameters NOT specifically mentioned are measured at 230Vac input, rated load and 25°C ambient temperature
2. Ripple and noise are measured at 20MHz bandwidth by using a 12” twisted pair wire terminated with a 0.1µF ceramic & 47µF electrolytic capacitors across the output
3. Derating is required at low input voltages. Derate linearly to 90% load at 90Vac under 100Vac input
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC Directives

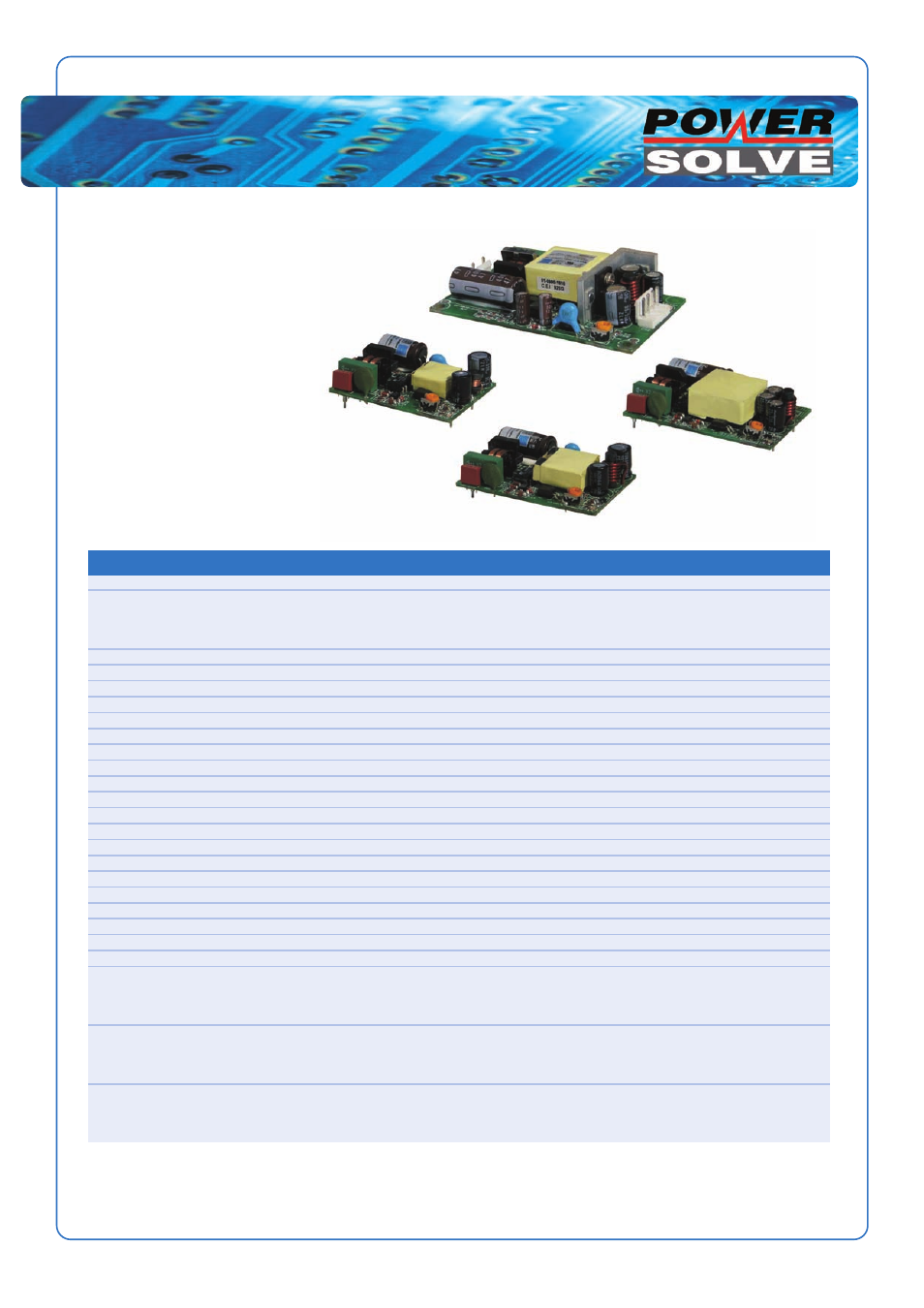

PMP05/PMP10/PMP15/PMP20 Series
5-20W Medically Approved
Single Output
Features
• Universal AC Input
• Medical Safety Approved
• Isolation Class II
• Cooling by Free Air Convection
• Green Design, no-load power consumption <0.5W
• Short Circuit / Overvoltage / Overload Protections
• Operating Temperature range -20°C to +70°C
• 100% full load burn-in test
www.powersolve.co.uk
