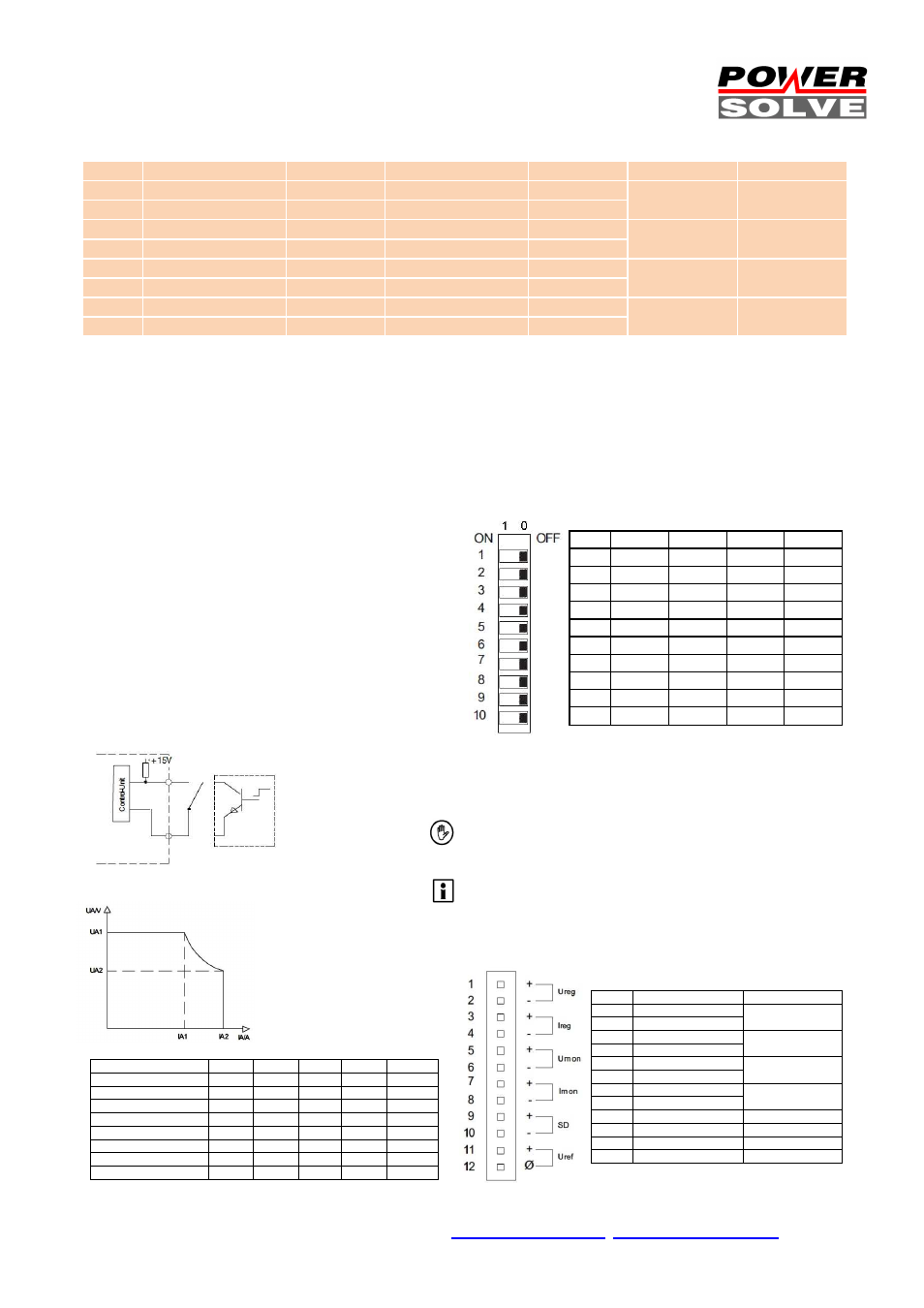

Ordering Information:
Output Type (DIN-Rail standard) Part Number Built-in 5W Power Sink Part Number Option Part Number
0...18V HSEUIreg10001.18T 304.1085.001CA HSEUIreg10001.18TPS 304.1085.011CA USB 2.0 Interface
UI.Drive Software
XP/W7/W8 304.1098.001CA
0...30V HSEUIreg10001.30T 304.1085.002CA HSEUIreg10001.30TPS 304.1085.012CA
0...50V HSEUIreg10001.50T 304.1085.003CA HSEUIreg10001.50TPS 304.1085.013CA ADTW201
DC-repeater
304.1090.001CA
0...90V HSEUIreg10001.90T 304.1085.004CA HSEUIreg10001.90TPS 304.1085.014CA
0...130V HSEUIreg10001.130T 304.1085.005CA HSEUIreg10001.130TPS 304.1085.015CA PS200 external
200W Power Sink 304.xxxx.001CA
0...180V HSEUIreg10001.180T 304.1085.006CA HSEUIreg10001.180TPS 304.1085.016CA
0...240V HSEUIreg10001.240T 304.1085.007CA HSEUIreg10001.240TPS 304.1085.017CA Wall Mount Kit 220.1002.001CA
0...400V HSEUIreg10001.400T 304.1085.009CA HSEUIreg10001.400TPS 304.1085.019CA
Conception
The HSEUIreg power supply series realizes very high power efficiency in a
space-saving housing. Latest generation electrical devices relate to the high
reliability of all CAMTEC products. The CAMTEC philosophy is, to employ
125°C low ESR ultra long life capacitors where expedient to achieve a
superior lifetime of our products. The HSEUIreg-series is made for
Measuring & Control-Units to allow an easy design of P- or PI-controllers at
an attractive price value.
Thermal shutdown (p.6 fig.4)
The HSEUIreg-series is featured with a thermal overload shut down and
auto recovery behaviour.
Control type
The power supplies accurately works down low output voltages down to 0V.
Thereby the switching frequency is absolute stabile.
The output response is linear to the input signal.
Sensing feature (p.5)
The HSEUIreg has a sense operation mode to compensate potential drop at
the supply line. It is a standard for the 0...18Vdc, 0...30Vdc and 0...50Vdc
types. For all other types it is a feature up on request.
Shutdown feature
All HSEUIreg units are featured with a shut down (open collector). ON=
open contact, OFF= closed contact 1Vdc max. . The shutdown connections
have an internal pull-up resistor with 6800
Ω at the plus line (+15V inserted).
UI-characteristic:
Programmable Outputs:
Output Voltage & output current control:
The output voltage is linear proportional to the input signal.
10% input signal will deliver 10% of the maximum output voltage, 50% input
will give a ratio of 50% output and 100% will provide 100% output. The
USEUIreg features 0-5Vdc, 0-10Vdc, 0-20mA or 4-20mA control signal input.
The setting has to be chosen from a DIP-switch at the front-side. The input
impedance is 1M
Ω with voltage control mode settings. The input impedance is
500 Ω with current control mode settings.
Tolerance compensation adjust:
It is not necessary to adjust the basic of the output voltage or output current
level. The engineers abandoned a compensation potentiometer to prevent
malfunction from wrong basic adjustments.
Warning:
Tuning the output voltage over the maximum level may cause deviations
from the technical data table. If the control inputs are not connected at all
this may cause a minimum voltage of 100mV at the device main outputs.
All control I/O are connected to Uref
The current operation mode features a 500R input impedance
to the control inputs. Be aware that your PLC is capable to
trigger recommended line power.
PIN Description Value
01 + V progr. input 0-5V 0-10V
0-20mA 4-20mA
02 - V progr. input
03 + A progr. input 0-5V 0-10V
0-20mA 4-20mA
04 - A progr. input
05 + V progr. output 0-5V/0-10V 5mA
06 - V progr. output
07 + A progr. output 0-5V/0-10V 5mA
08 + A progr. output
09 + SD shutdown Open collector
10 - SD shutdown Open collector
11 + Uref 5.2V /10V 5mA
12 - Uref ref return
Type UA1 IA1 UA2 IA2 Pmax
HSEUIreg10001.18 18V 50.0A 18V 50.0A 1000W
HSEUIreg10001.30 30V 33.3A 24V 42.0A 1000W
HSEUIreg10001.50 50V 20.0A 40V 25.0A 1000W
HSEUIreg10001.90 90V 11.1A 72V 14.0A 1000W
HSEUIreg10001.130 130V 7.7A 105V 9.5A 1000W
HSEUIreg10001.180 180V 5.6A 144V 7.0A 1000W
HSEUIreg10001.240 240V 4.2A 190V 5.3A 1000W
HSEUIreg10001.400 400V 2.4A 320V 3.2A 1000W
Pos. 0 - 5V 0 - 10V 0 - 20mA 4 - 20mA
S01 0 0 1 1
S02 0 1 1 0
S03 0 0 0 1
S04 0 0 1 1
S05 0 1 1 0
S06 1 0 0 0
S07 0 0 0 1
S08 0 1 1 1
S09 0 1 1 1
S10 0 1 1 1
