Powersolve HSEUIreg10001 Series User Manual
Specification

Powersolve Electronics Ltd., Unit 8A Arnhem Road, Newbury RG14 5RU, United Kingdom
p.1/9 05.13E
Tel 0044 (0)1635 521858 Fax 0044 (0)1635 523771
www.powersolve.co.uk
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)

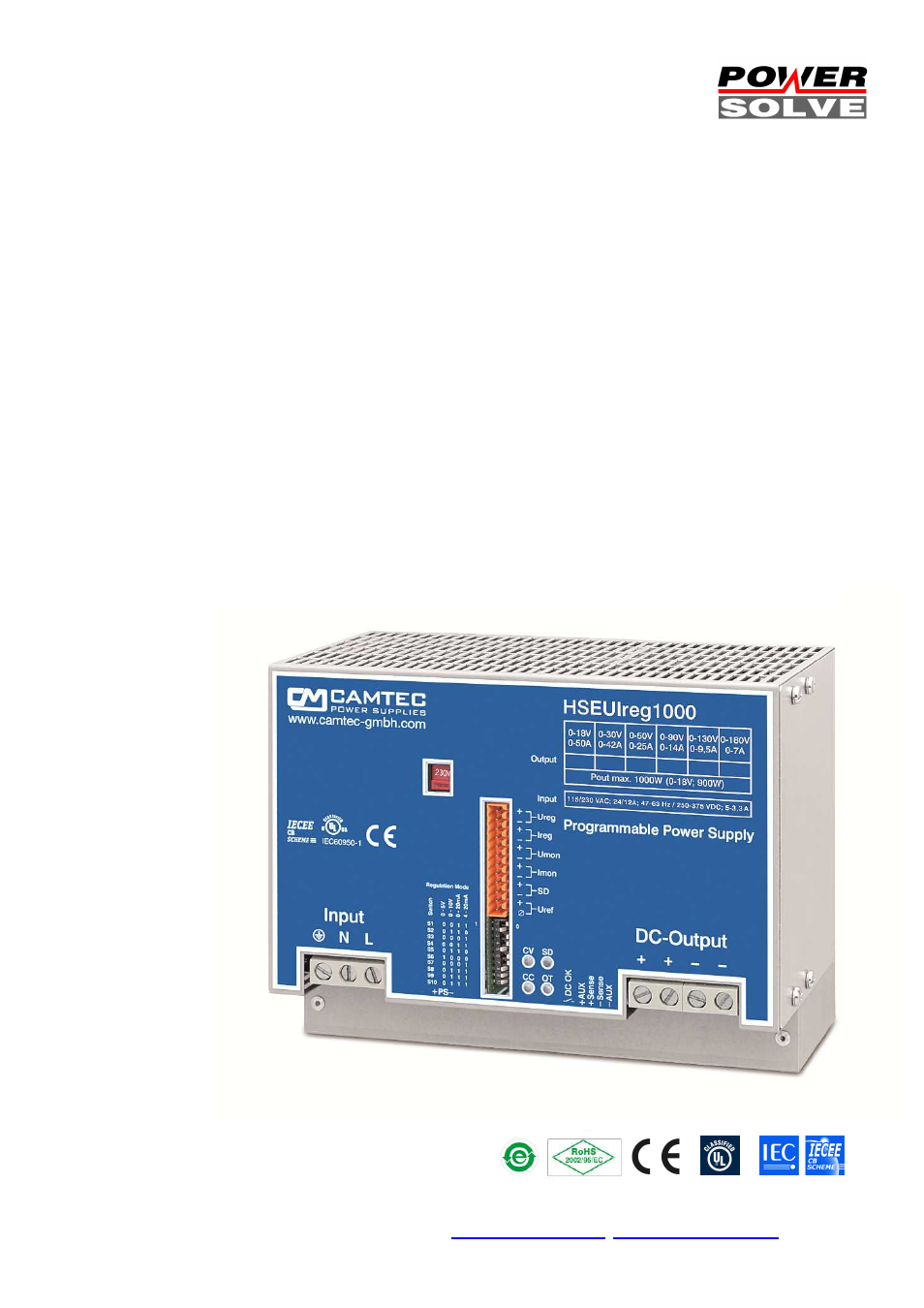

HSEUIreg10001 DIN Rail
Made in Germany
1000W Programmable Power Supply
current and voltage programmable
Specification:
•
Metal housing
•
90% efficiency
•
-25°C...+60°C full output power
•
Natural convection
•
Galvanic insulated
•
Continuous short circuit protected
•
Overload (OVP) & low voltage protected
•
Soft start & auto-recovery
•
Hold up time >30ms
•
No base load required
•
Electronic inrush current limiter 13.8Apeak
•
Analogue interface 0-5Vdc/0-10Vdc/0-20mA/4-20mA
•
Real time output monitoring of voltage and current
•
External shutdown
•
Sense control
•
Series & parallel operation
•
DIN Rail 35mm & wall mount
•
Screw terminals AWG20...AWG6
•
High reliability, shock & vibration proof
•
24 hours burn in test
•
EMI/EMS EN61000-6-2,3, EN55022 class B
•
IEC(EN)60950-1 in accordance to cUL60950/16950
Available outs:
0…18V, 0…30V, 0…50V, 0...90V, 0...130V, 0...180V, 0...240V, 0...400V
In accordance with IEC60950-1
