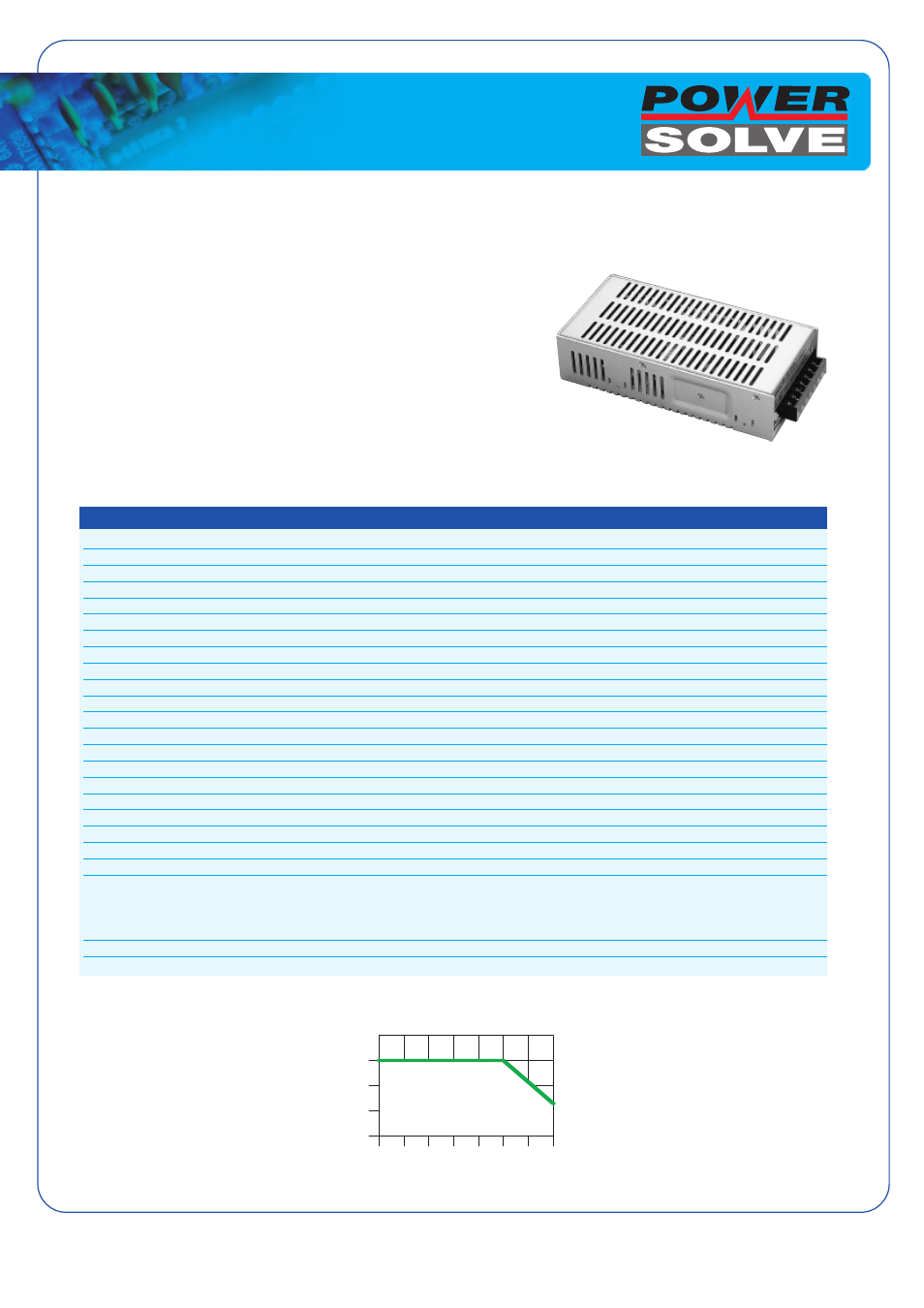

Powersolve PPS150LBP Series - Manual

Powersolve Electronics Ltd. Units 8A, Arnhem Road, Newbury, RG14 5RU. England
Tel:01635 521858 Fax: 01635 523771 Email: [email protected]
www.powersolve.co.uk
AC-DC Converters
PPS150LBP Series
150 Watts
Single, Dual, Triple & Quad Outputs
Features
• Built-in EMI filter
• Low cost
• Active PFC
INPUT
Input range
90~260 VAC
Frequency 47~63Hz
Inrush current 38A typical, Cold start @ 25°C, 115 VAC
Efficiency 65% ~ 85% typical at full load
EMI filter FCC Class B conducted, CISPR 22 Class B conducted, EN55022 Class B Conducted
Line regulation ± 0.5% typical
OUTPUT
Maximum power
150W convection
Hold-up time 10ms typical at full load and 115 VAC nominal line
Overload protection Short circuit protection
Overvoltage protection Main output 20% to 40% above nominal output
Ripple/Noise ± 1% Max. @ full load
Output adjustment ± 10% on output 1
ENVIRONMENTAL
Operating temperature
0 to 50°C ambient; derate each output at 2.5% per degree from 50°C to 70°C
Humidity Operating; non-condensing, 5% to 95%
Vibration 10~55 Hz at 1G 3 minutes period, 30 minutes along X, Y and Z axis
Storage temperature -40 to 85°C
Temperature coefficient ± 0.05% per degree C
MTBF demonstrated >100,000 hours at full load and 25°C ambient conditions
EMI & EMC FCC part 15, Class B
CISPR 22 / EN55022, Class B
VCCI, Class 2
CE, EN 61000-3-2 (Class D) and –3; EN 61000-4-2, -3,-4.-5,-6 and -11
Safety approval UL / cUL, TUV EN60950
Electrical Specification
0W
45W
90W
150W
180W
0 10 20 30 40 50 60 70
75W
Power Derating Curve
Ambient Temperature (°C)
Output
Power
(Watts)
Natural
Convection
Cooling
