3
Installation to Wood/Metal Stud Wall or Drywall
Drill one 1/4" (6 mm) dia. mounting hole to a minimum depth of 1.5" for each mounting base (C).
Insert anchor (F) into hole, fl ush with drywall. Fasten mounting bases (C) to wall using one #8 x 1"
phillips screw (G) for each mounting base.
NOTE: Be certain channel fl anges on mounting bases are in the orientation as in fi g. 3.1 and 3.2
for left or right confi guration.

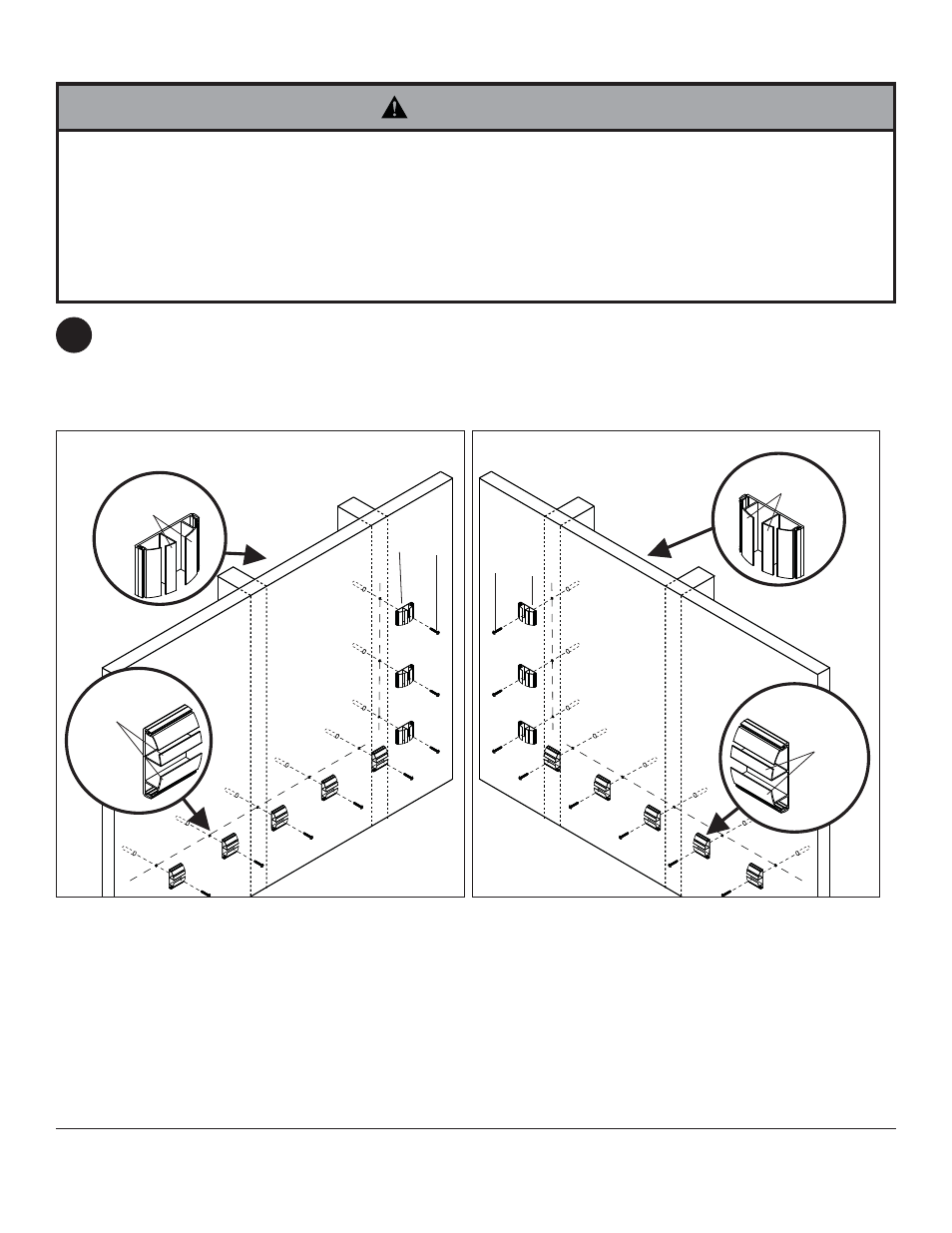

LEFT CONFIGURATION RIGHT CONFIGURATION
C G
G C
fi g. 3.1 fi g. 3.2
CHANNEL
FLANGES
C
CHANNEL
FLANGES
C
CHANNEL
FLANGES
C
CHANNEL
FLANGES
C
• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.
• Tighten wood screws so that mounting bases are fi rmly attached, but do not overtighten. Overtightening can dam-
age the screws, greatly reducing their holding power.
• Never tighten in excess of 25 in. • lb (2.5 N.M.).
• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-
ers are responsible to provide hardware for other types of mounting situations.
WARNING
