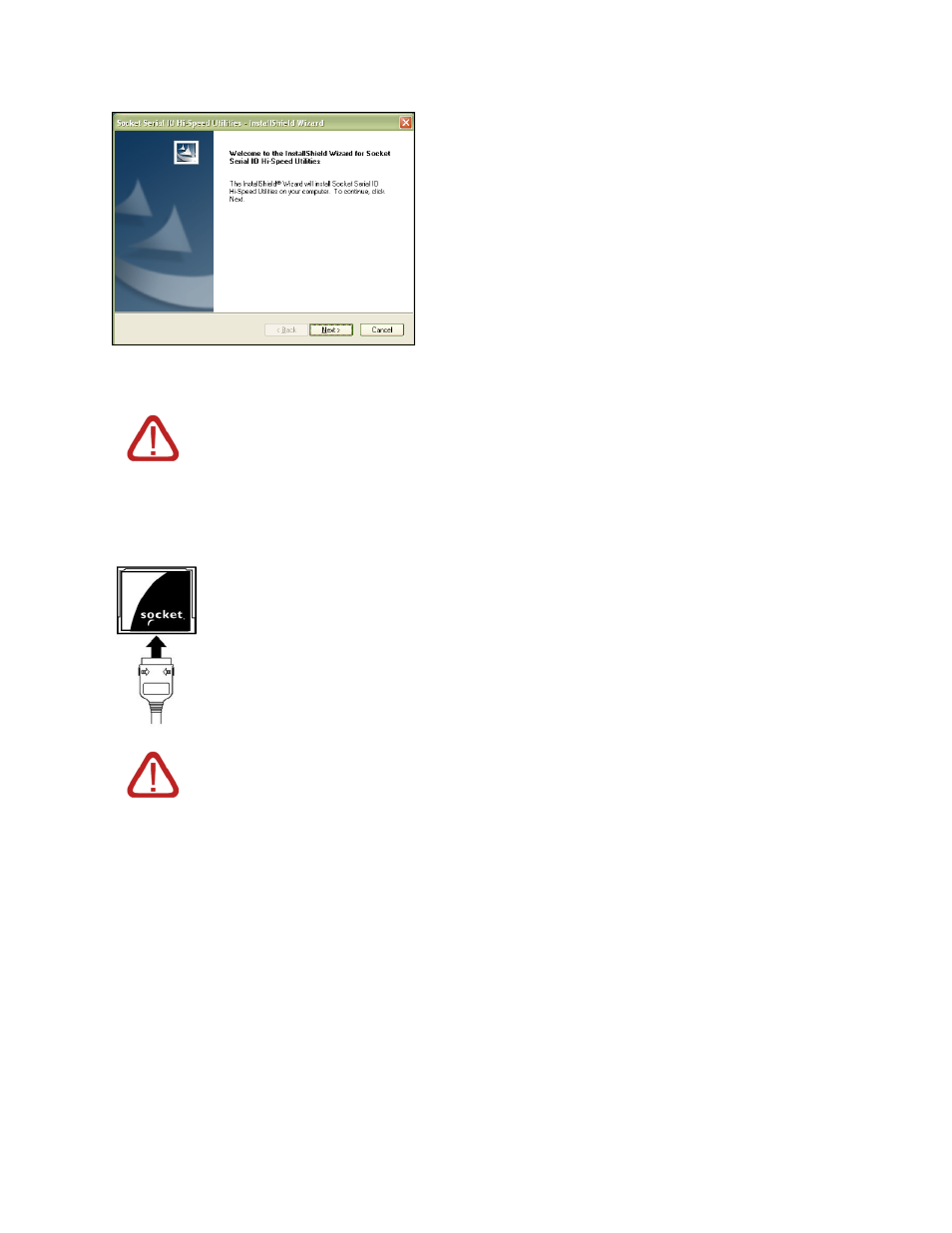

When software installation is complete, disconnect the device from the host PC. Soft reset the device by pressing
the reset button.
IMPORTANT! If you do not soft reset the device, the Hi-Speed COM Tools icon will not appear!
STEP 2: Insert the Serial I/O Card
If using a detachable cable, attach it to the card. Press the side latches of the cable connector, insert the connector
into the bottom of the card, and release.
IMPORTANT! When removing the cable, press on the side latches before pulling the cable! Otherwise,
you can damage the connector and card!
Insert the card into your device’s expansion card slot. Insert the card right-side up, with the blue label on top.
If using a detachable cable, do not shove on the cable during card insertion.
If using a CF card in a PC Card slot, use a PC Card adapter.
Note: The card and cable should
join snugly and remain attached
after you release the latches. To
remove the cable, press the side
latches and pull gently.
