To update the Status report, click REFRESH. After making changes, click APPLY.
Note: If you modify any settings, the changes will only take effect after you click APPLY. If you modify settings
when you have a connection with a serial I/O port open, then the settings will not take effect until you disconnect
and reconnect the port.

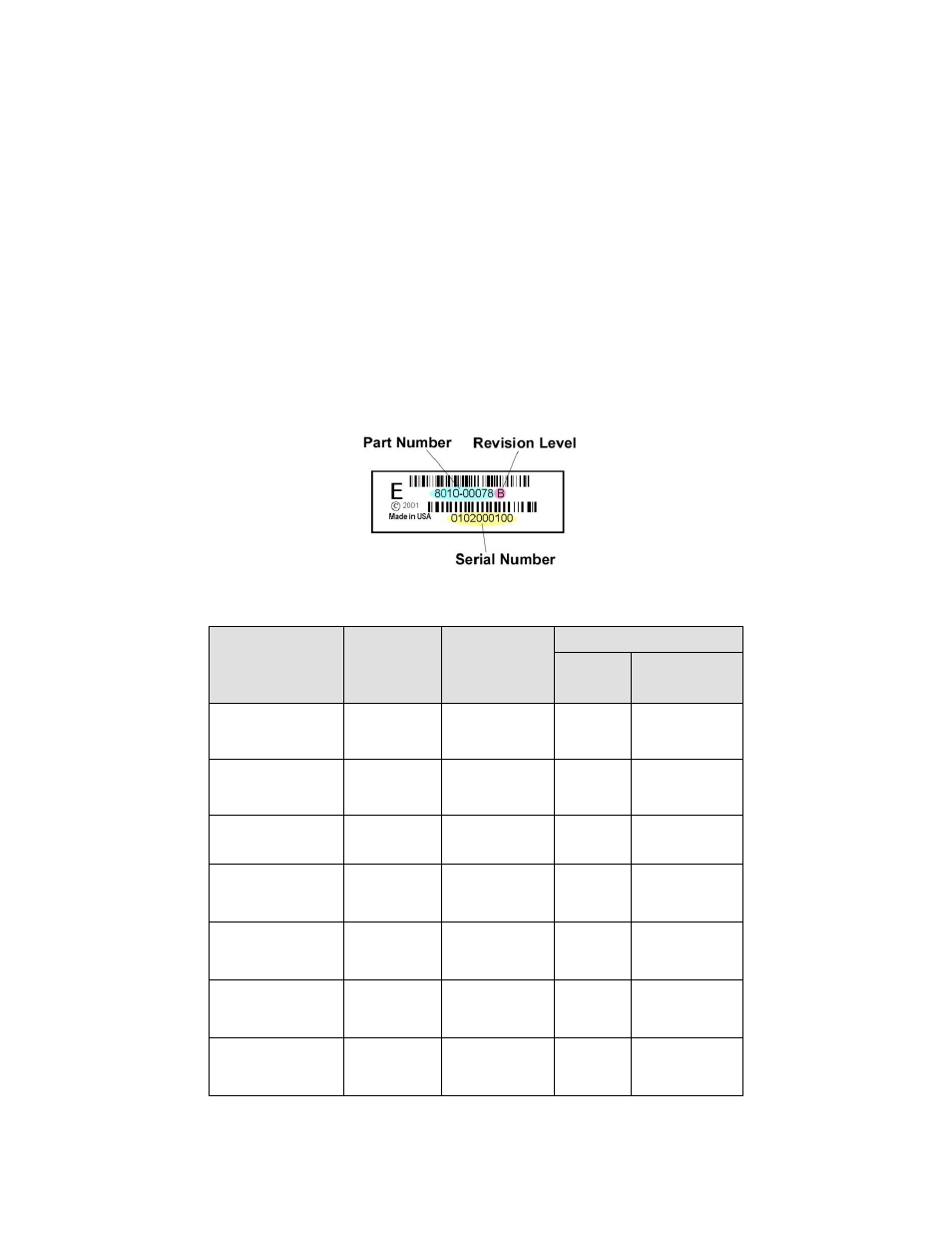

Determine the Maximum Baud Rate of Your Card
If you plan to use the Hi-Speed COM Tools to map baud rates, it is useful to know the maximum baud rate that
your Serial I/O Card can handle. Later revisions of the card can handle higher baud rates, up to 921 kbps. Check the
Revision Level (Rev) of your card and refer to the chart below to determine the maximum baud rate of your card.
Note: The maximum baud rate varies with your device’s operating system, processor speed, and other variables.
Higher baud rates may not work correctly on some older computers.
Card Type
Part
Number
Not
Compatible
with Hi-Speed
COM Tools Maximum Baud Rate
230 kbps 921 kbps
CF with
Removable cable 8510-00094
8010-00075
Rev A Rev B Rev C or later
CF with
Ruggedized cable 8510-00115
8010-00087
Rev A Rev B Rev C or later
Custom CF Card 8510-00155 N/A Rev A N/A
Single-port
PC Card with
Removable cable
8510-00012
8010-00012
Rev A-J Rev K-L Rev M or later
Single-port
PC Card with
Ruggedized cable
8510-00073
8010-00065
Rev A-D Rev E-F Rev G or later
Dual-port
PC Card with
Removable cables
8510-00054
8010-00057
N/A Rev A-J Rev K or later
Dual-port
PC Card with
Ruggedized cables
8510-00092
8010-00077
N/A Rev A-E Rev F or later
