47

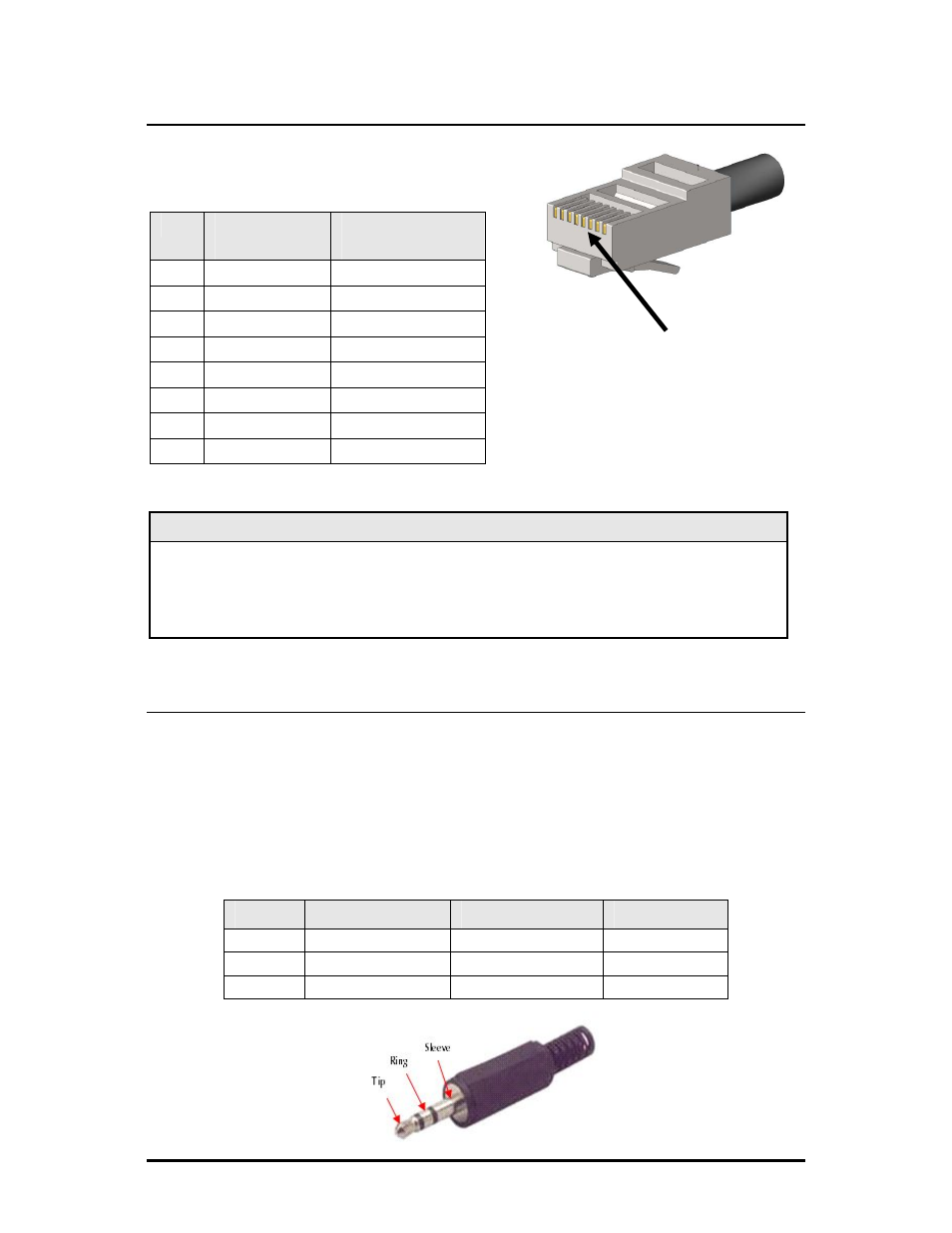

RJ-45 Data Port Pinout
The following table lists the pin
configuration for the RJ-45 Data connector.
Pin Signal Name
1000M
Signal Direction
10/100M
1 TXD1+ Out*
2 TXD1- Out*
3 RXD2+ In*
4 D3+
5 D3-
6 RXD2- In*
7 D4+
8 D4-
*NOTE
The MDI/MDIX function will automatically adjust the direction of these signals to match the
connected unit when running 10/100Base-T. 1000Base-T will use all 4 pairs in full duplex
mode.
RS-232 Serial Console Port
The IE-iMcV-MultiWay includes an RS-232 Mini Jack for the Console port to allow
the end user to launch a serial session and access a list of commands. The serial port
on the computer/terminal should be set for: 38.4K baud, 8 data bits, 1 stop bit, no
parity, no flow control. The F2 key functions as a Delete key on VT-100 emulators.
The following table lists the pin configuration for the RS-232 3-pin Mini Jack mating
connector for the console serial port.
Pin DB9-F Pin# Signal Name Direction
Tip 2 Transmit Out of Unit
Ring 3 Receive In to Unit
Sleeve 5 Return Return
Pin 1
