Select the MD, MA, enter the MEP ID, select the appropriate type, port and
direction, and select the Primary VID, if applicable. To cancel the MEP without
saving, select Delete. To store the MEP, select Save and the screen is refreshed.
Once the user has configured the MD, MA and at least one MEP, a particular
instance of an MEP can be accessed for more detailed configuration. To access a

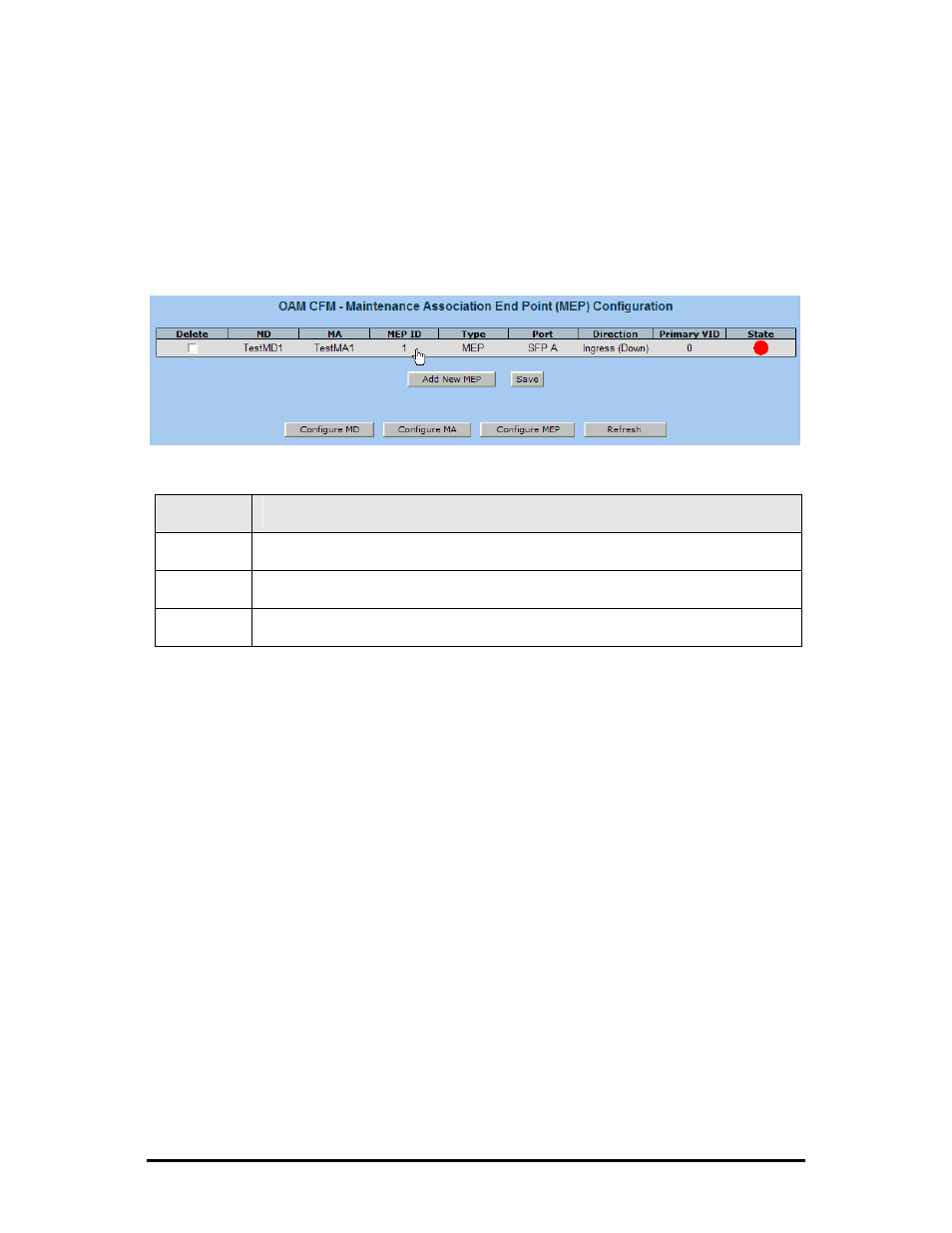

particular instance of an MEP, click on the row containing the desired MEP as shown
below:
The current state of the MEP is shown by the color in the "State" column.
Color Description
Green Correctly functioning MEP—all MEPs are active and sending CCMs
Red Idle state or problem associated with the MEP
Yellow Not all peer MEP CCMs are being received.
Moving the mouse over the displayed color displays a comment giving additional
information about the current state. Valid comments are:
• MEP is Idle
• MEP is Active
• Remote MEP Idle
• Remote MEP Failed
