Section 6 - Advanced User Settings
Page 26 of 45 Document Number: USR60x-0812m
www.bb-elec.com/
www.bb-europe.com/
Setting Serial Port Properties
1. In Device Manager, expand Ports and double-click USB Isolated
Serial Port to open the USB Isolated Serial Port Properties dialog
box.

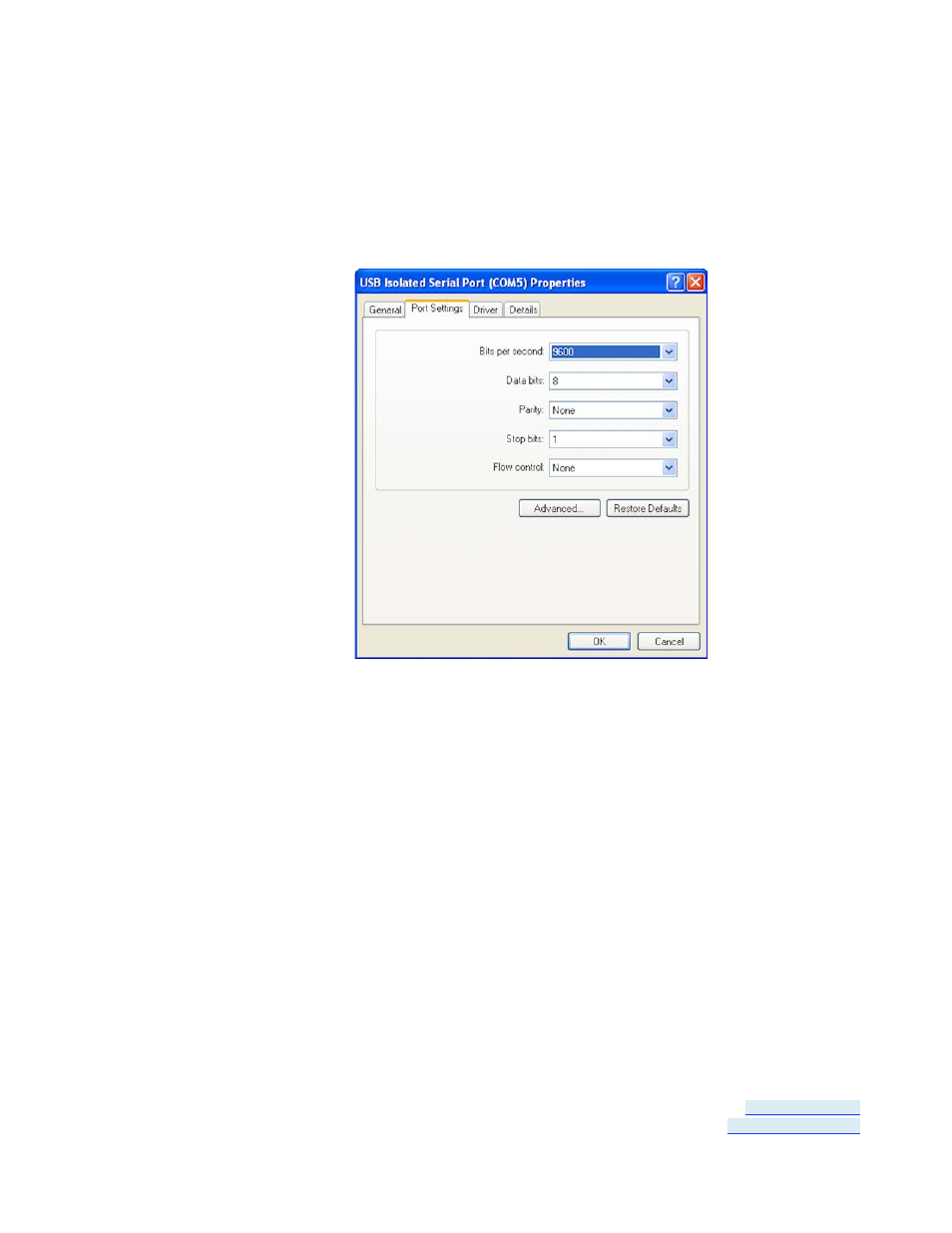

Figure 177: Port Properties
2. In the dropdown lists provided, select the following serial port
properties required for your communications application:
• Bits per second
• Data bits
• Parity
• Stop bits
• Flow control
Note: The default values for this dialog are 9600 bps, 8 data bits, No parity, 1 stop bit, No flow
control
