Section 5 - Hardware Installation
Page 19 of 45 Document Number: USR60x-0812m
www.bb-elec.com/
www.bb-europe.com/
• External power via pluggable terminal strip - 10 to 48 VDC, 16 watts
max
• External power via locking power jack - 10 to 48 VDC, 16 watts max

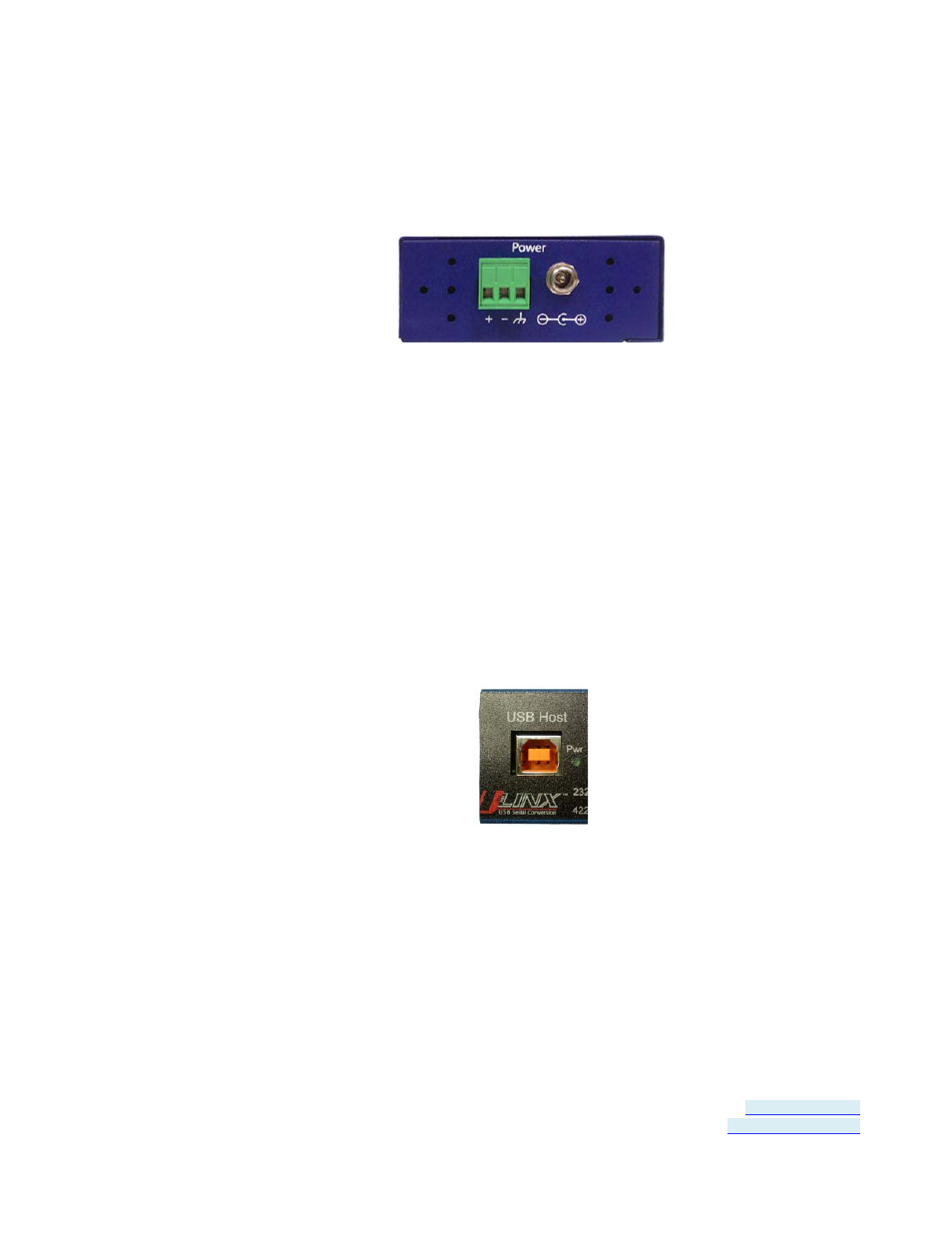

Figure 8: Power Supply Connections
When the unit is USB powered the current available to the converter
may be limited by the USB host. If the converter is connected to an
external USB hub the maximum available current may be insufficient to
operate the converter. In that case an external power supply should be
connected.
Connecting to a PC
USR60x converters connect to a host device (PC) via a USB interface.
The connector on the USR60x converter is a high retention force Type
B female connector.
Figure 9: USB Connector
