Section 5 - Hardware Installation
Page 18 of 45 Document Number: USR60x-0812m
www.bb-elec.com/
www.bb-europe.com/
Installing and Mounting the USR60x
USR60x converters come supplied with DIN rail mounting clips and
panel mount adapters.

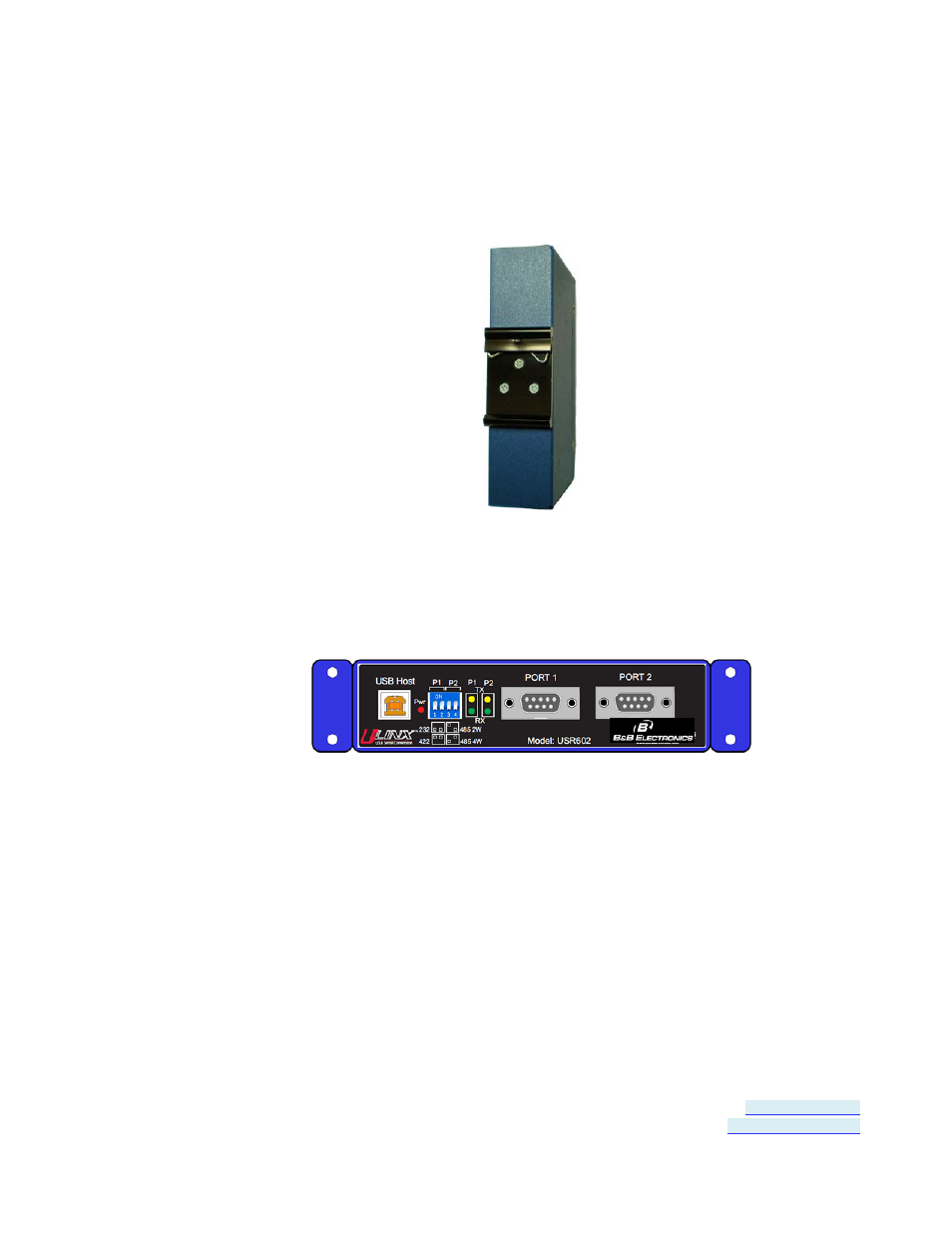

Figure 6: DIN Rail Mounting Clip
The DIN rail mounting clip is attached to the back of the unit using
three machine screws (included). This mount enables the unit to be
clipped directly to a standard DIN rail.
Figure 7: USR602 with Panel Mount Adapters
Panel mount adapters are attached to the unit with three machine
screws on each side. With this mount the unit can be installed in a
panel. (Refer to dimensional diagrams for the dimensions required for
predrilling the panel.
Connecting Power
USR60x converters offer three options for connection of power:
• USB bus powered
