38

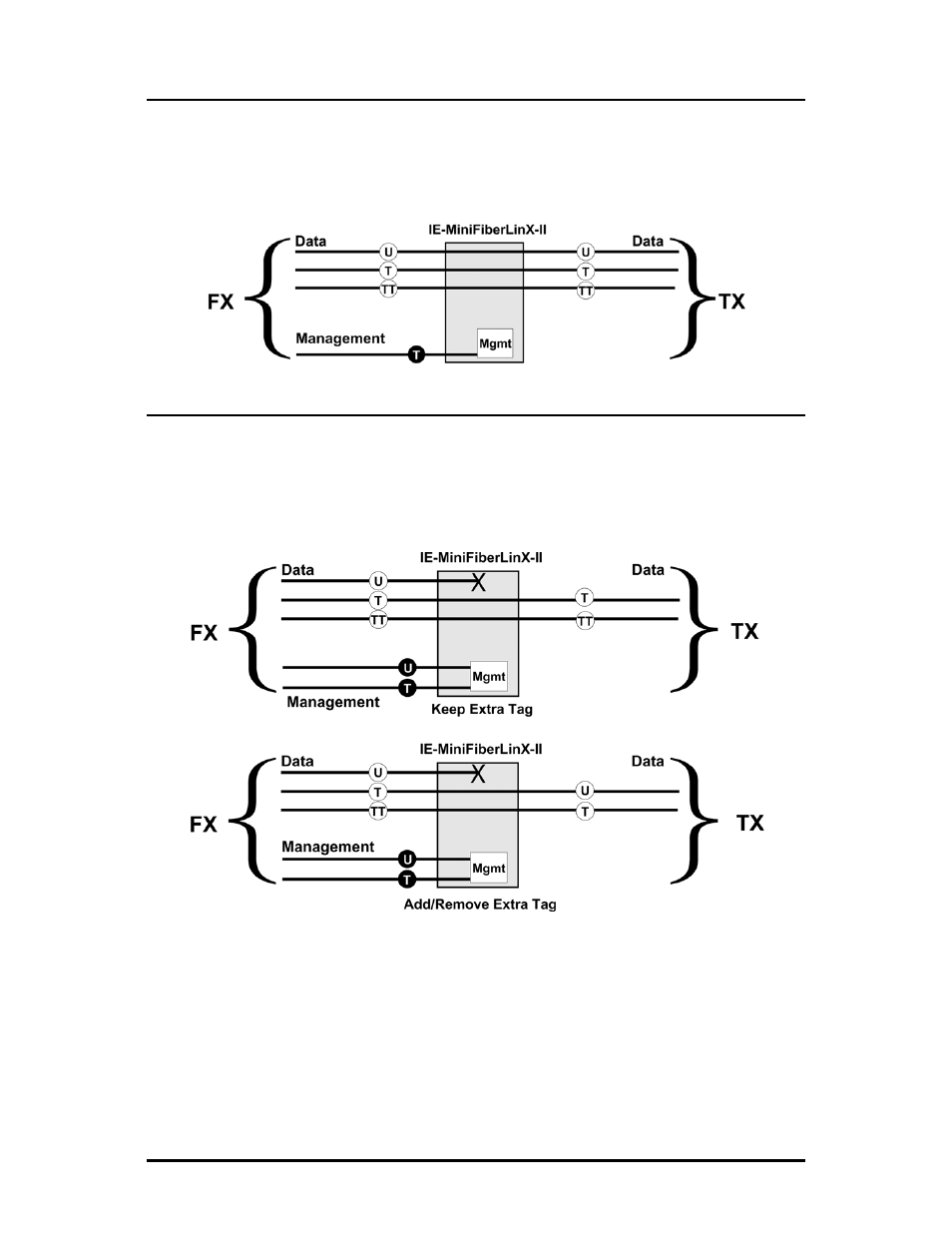

Mode Three - Transparency with Tagged Management

This mode will pass all tagged and untagged customer traffic. Management traffic
must be tagged. It does not add or remove tags.

Mode Four - Transparency with Extra Tagging (or Q-in-Q)

This mode is designed to either pass all customer traffic with the defined extra tag (Q-
in-Q) or add and remove the defined extra tag (Q-in-Q) on all customer traffic.
Management traffic can be tagged or untagged.
