25

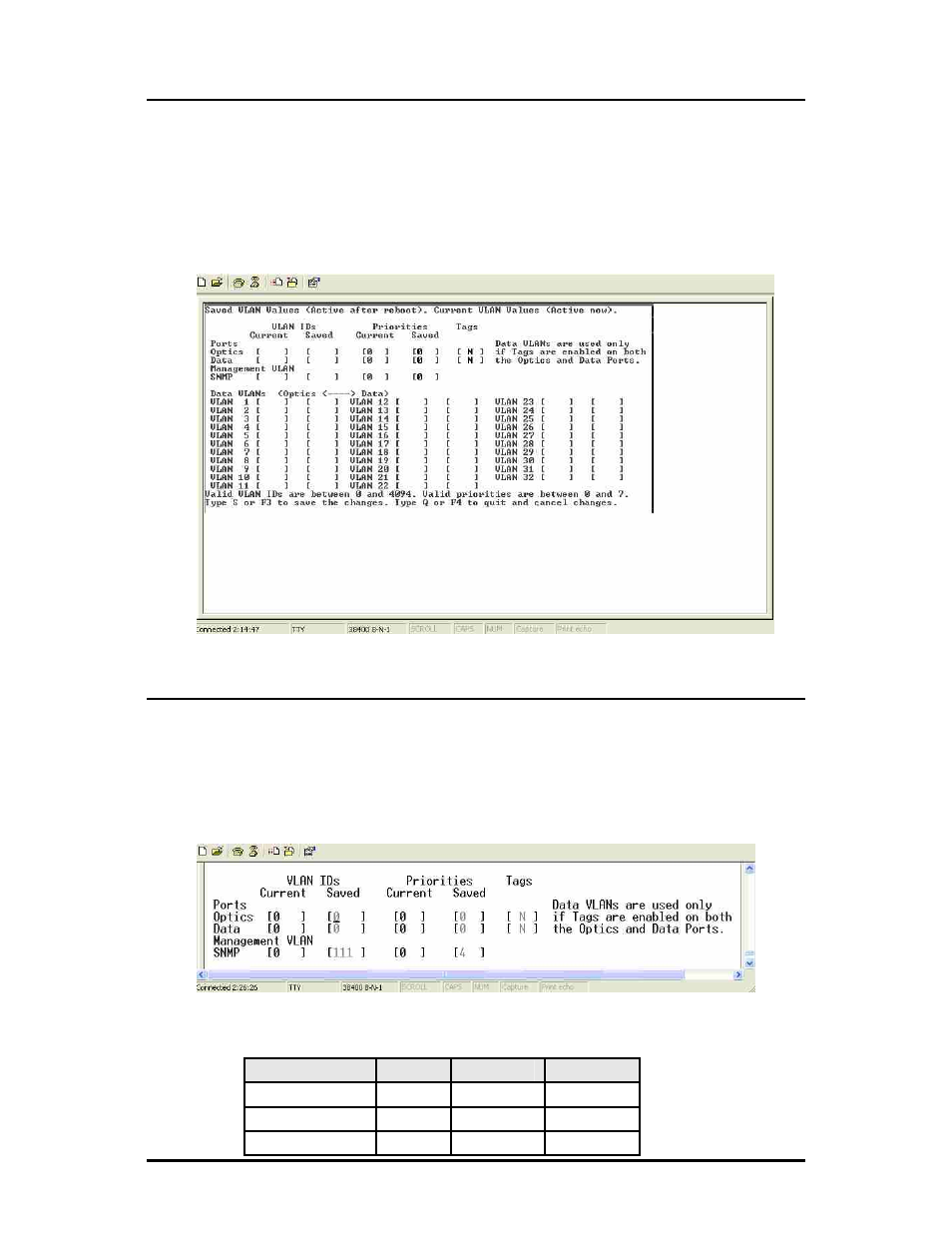

Mode Five - VLAN Filter
This mode is designed to only pass traffic with any of the 32 tags that have been
identified in the user-defined table. No untagged traffic can pass and management
traffic must be tagged. No tags are added or removed from the traffic. Select N on
the initial config screen and then setup the VLAN screen.
VLAN IDs can be any number between 1 and 4,094.
Mode Six - Port VLAN
This mode tags all customer traffic received by the copper port going to the fiber port,
untagging traffic conversely. This tag is entered as the Data VLAN tag with the optical
Tags selected as YES to indicate it is added at the egress of the optical port.
Select N on the initial config screen, and then setup the VLAN screen.
The table below displays how the settings are entered.
VLAN Priority Tags
Optical Yes
Data Tag2 4 No
Mgmt (SNMP) Tag1 1 Yes
