Uploading a Saved Configuration File through iConfig

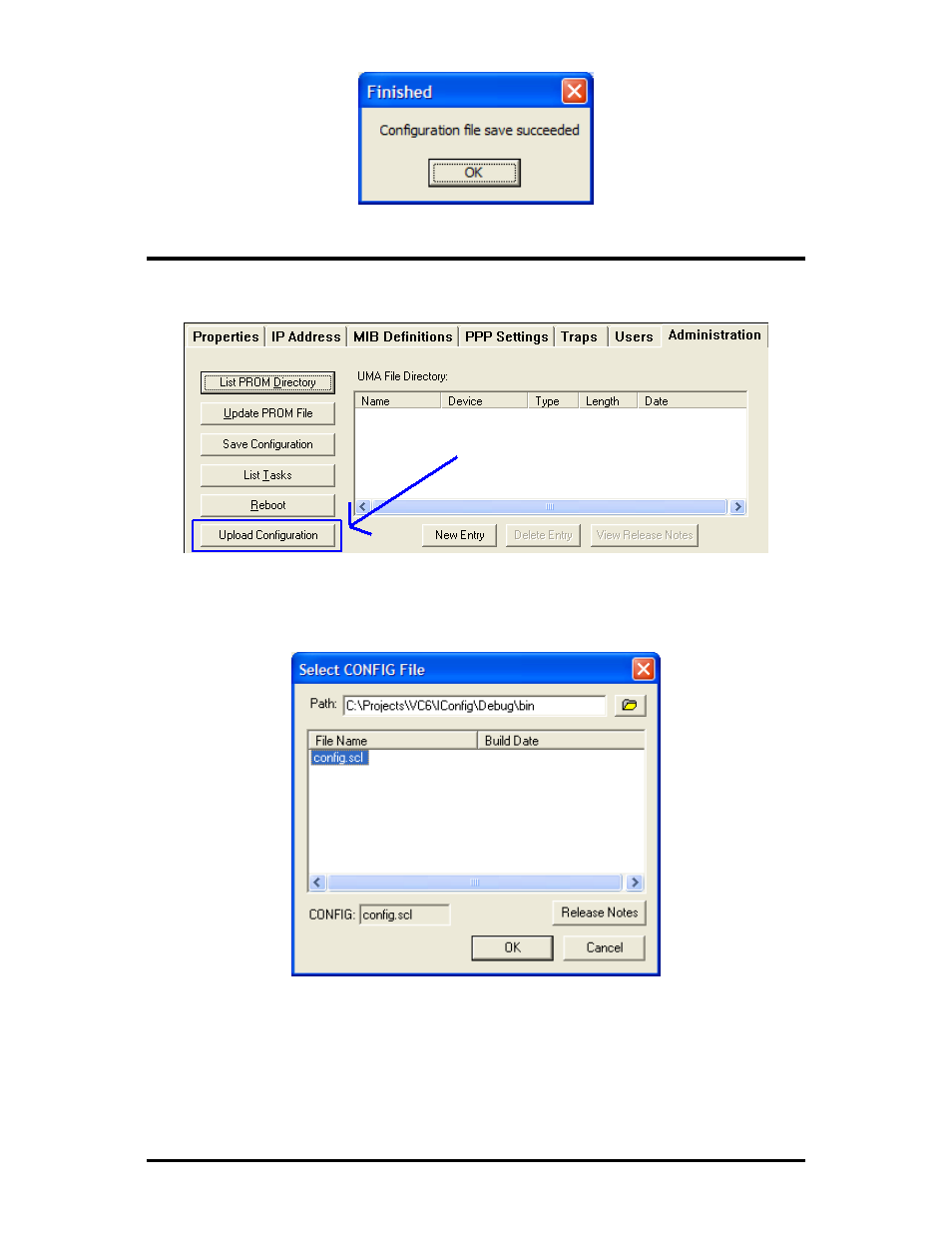

From the Administration Tab in iConfig click the Upload Configuration button:
The user will be prompted to select a configuration file. Once selected, the user can
also view any notes that were added when the file was saved:
After selecting the configuration file, the file upload process begins; when completed,
the user is notified of the status and also notified that a reboot is necessary for the
new configuration to become active:
