Text mode
Original mode

Mode Two - Transparency with Untagged Management

This mode is designed to pass all tagged and extra-tagged customer traffic unchanged
and must be managed using untagged traffic only. It does not add or remove tags.

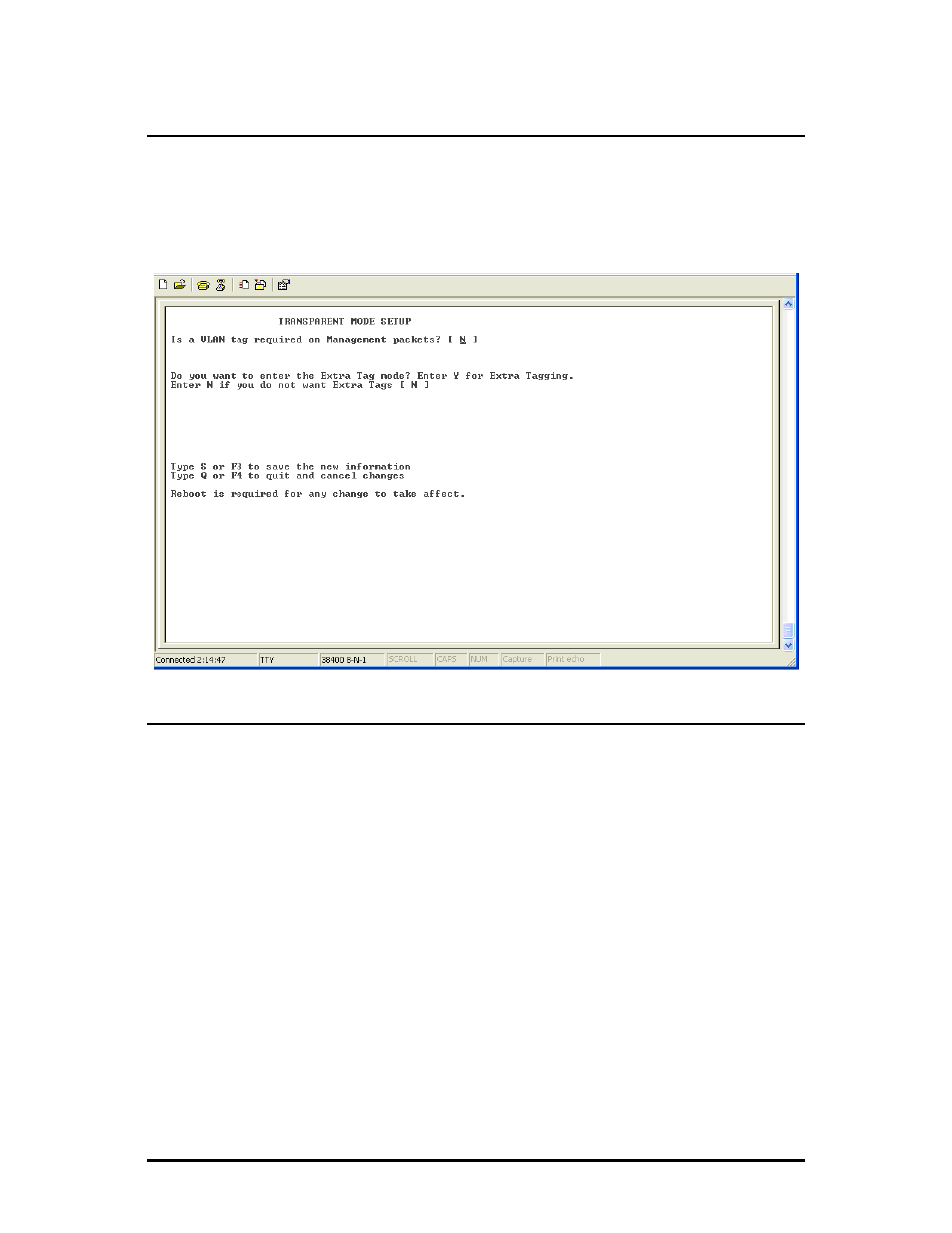

Select Y on the initial config screen and from the Transparent Mode Setup screen,
select N in the fields.

Mode Three - Transparency with Tagged Management

This mode will pass all tagged and untagged customer traffic. Management traffic
must be tagged. It does not add or remove tags.

Select Y on the initial config screen. From the Transparent Mode Setup screen, select
Y

and enter the Management Tag.
