802.1q VLAN interface

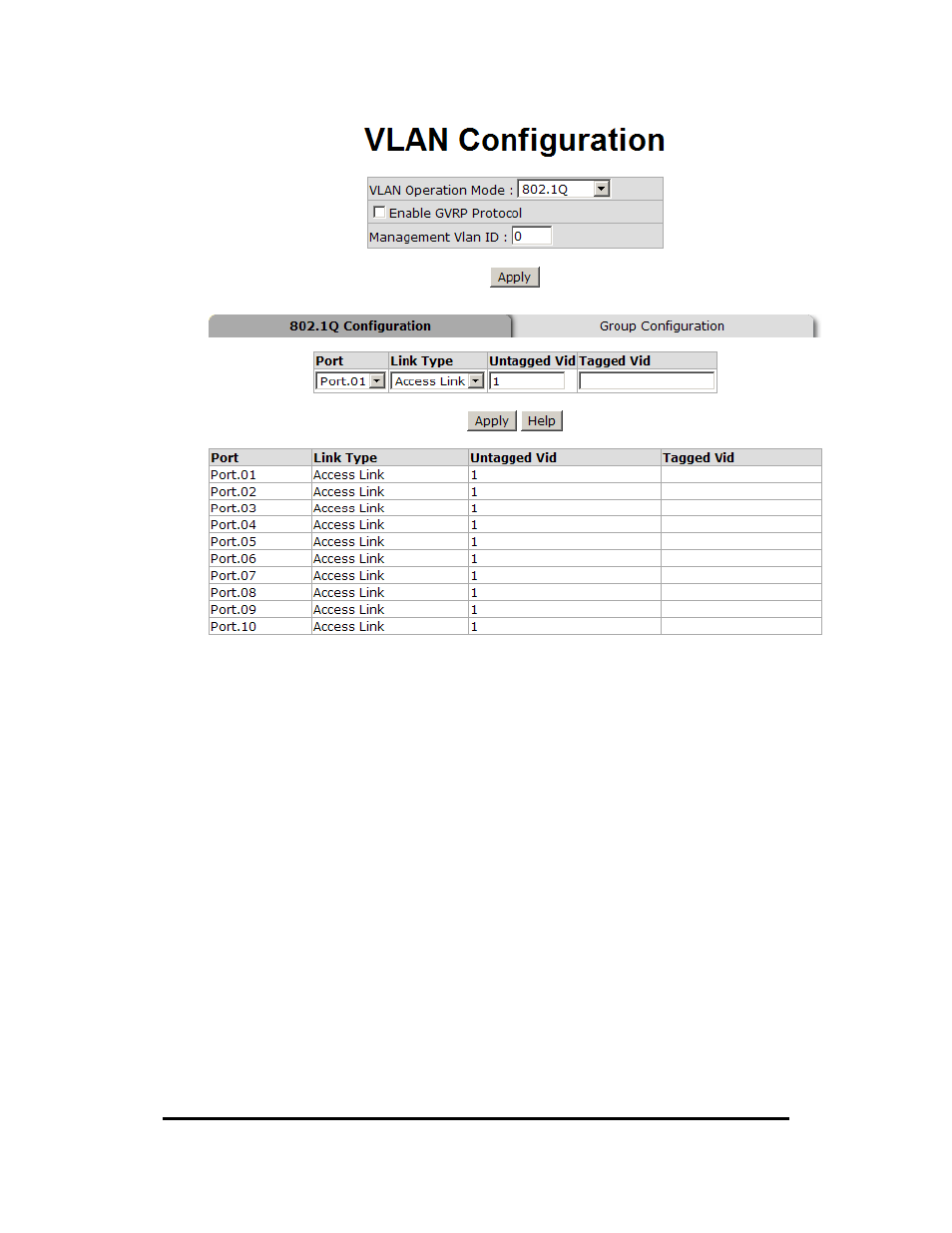

802.1Q Configuration
1. Enable GVRP Protocol: check the check box to enable GVRP
protocol.
2. Select the port to configure.
3. Link Type: there are three link types.
„ Access Link: Single switch only. Allows ports to be grouped by
setting the same VID.
„ Trunk Link: Extended application of Access Link. Allows ports to
be grouped by setting the same VID on two or more switches.
„ Hybrid Link: Both Access Link and Trunk Link.
4. Untagged VID: assign the untagged frame VID.
5. Tagged VID: assign the tagged frame VID.
