Rate Limiting
Set up each port’s bandwidth rate and frame limitation type.
„ Ingress Limit Frame type: Select the frame type to filter. There are
four options: All, Broadcast/Multicast/Flooded Unicast,
Broadcast/Multicast and Broadcast only.
„ Egress Limit: The egress rate limit is ALL.

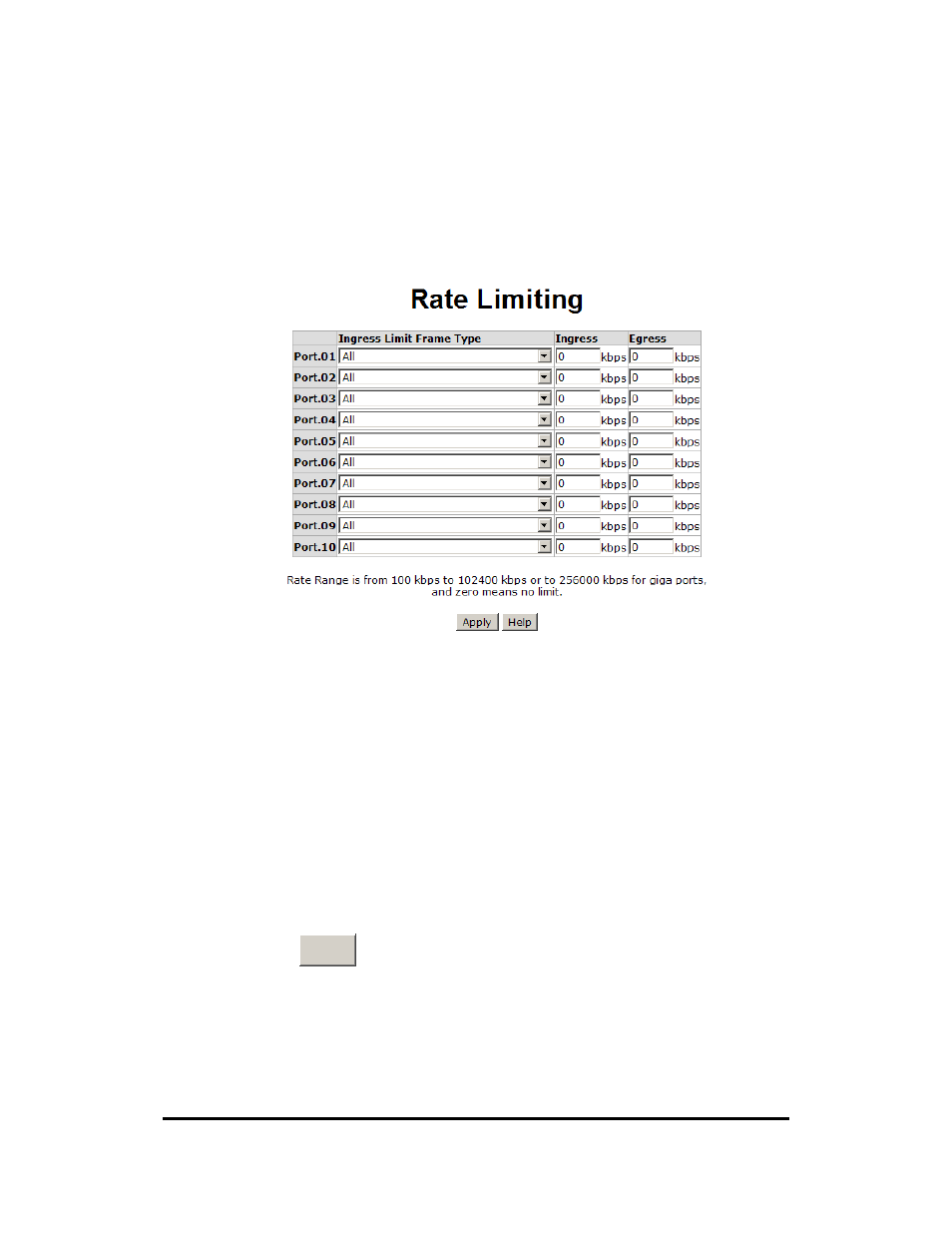

Rate Limiting interface
„ All the ports support port ingress and egress rate control. For example,
assume port 1 is 10Mbps, users can set its effective egress rate to
1Mbps, and ingress rate is 500Kbps. The switch performs the ingress
rate limiting using a packet counter to meet the specified rate
¾ Ingress: Enter the port effective ingress rate(The default value is
‘0’)
¾ Egress: Enter the port effective egress rate(The default value is
‘0’)
„ Click
Apply
