Port Statistics
Provides port status.
„ Port: The port number.
„ Type: Displays the connection speed.
„ Link: Displays link status —‘Up’ or ‘Down’.
„ State: Enabled or Disabled.
„ Tx Good Packet: Displays the number of good packets transmitted.
„ Tx Bad Packet: Displays the number of bad packets transmitted.
„ Rx Good Packet: Displays the number of good packets received.
„ Rx Bad Packet: Displays the number of bad packets received.
„ Tx Abort Packet: Displays the number of aborted transmit packets.
„ Packet Collision: Displays the number of packet collisions.
„ Packet Dropped: Displays the number of dropped packets.
„ Rx Bcast Packet: Displays the number of broadcast packets.
„ Rx Mcast Packet: Displays the number of multicast packets.
„ Click Clear to reset the numbers.

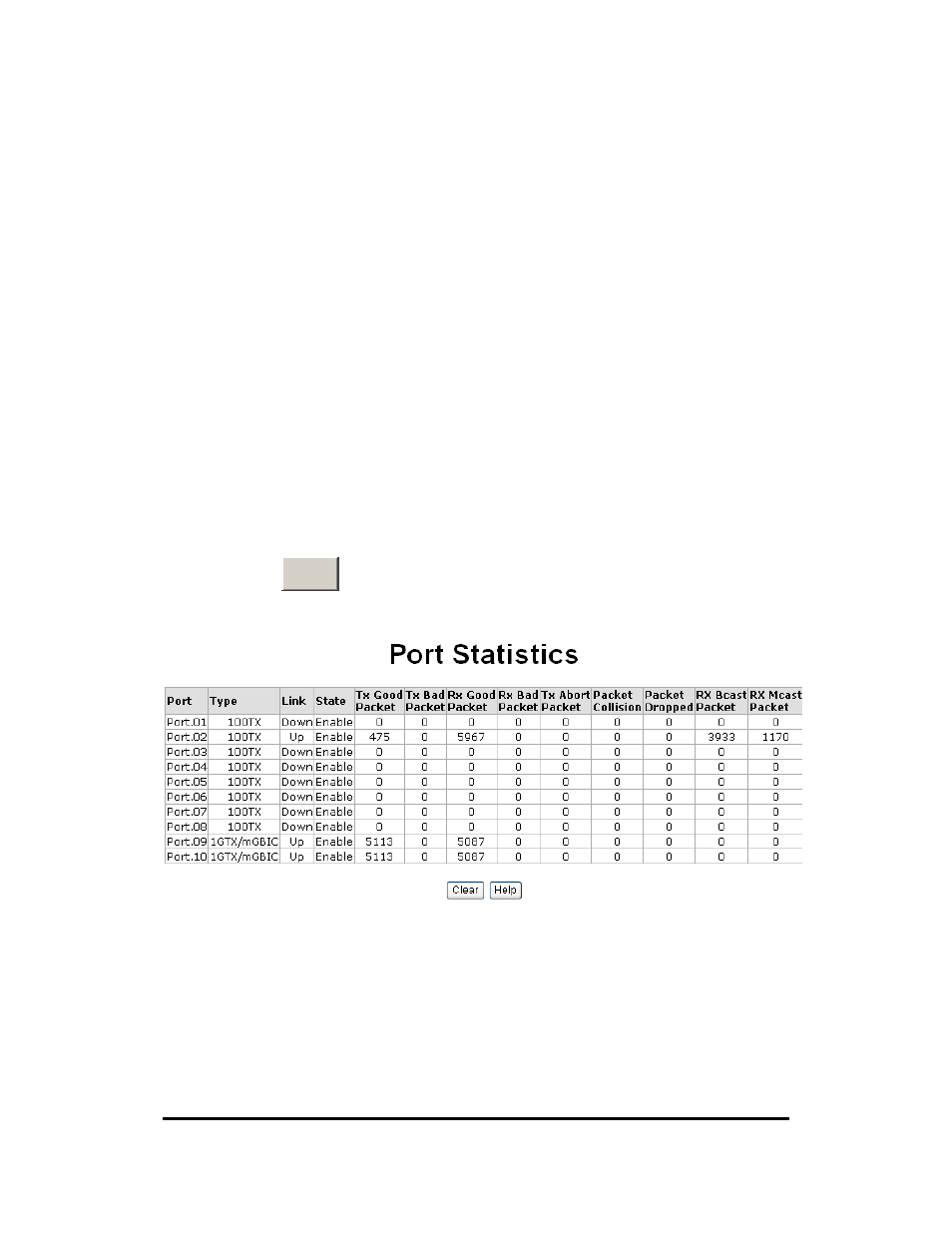

Port Statistics interface
