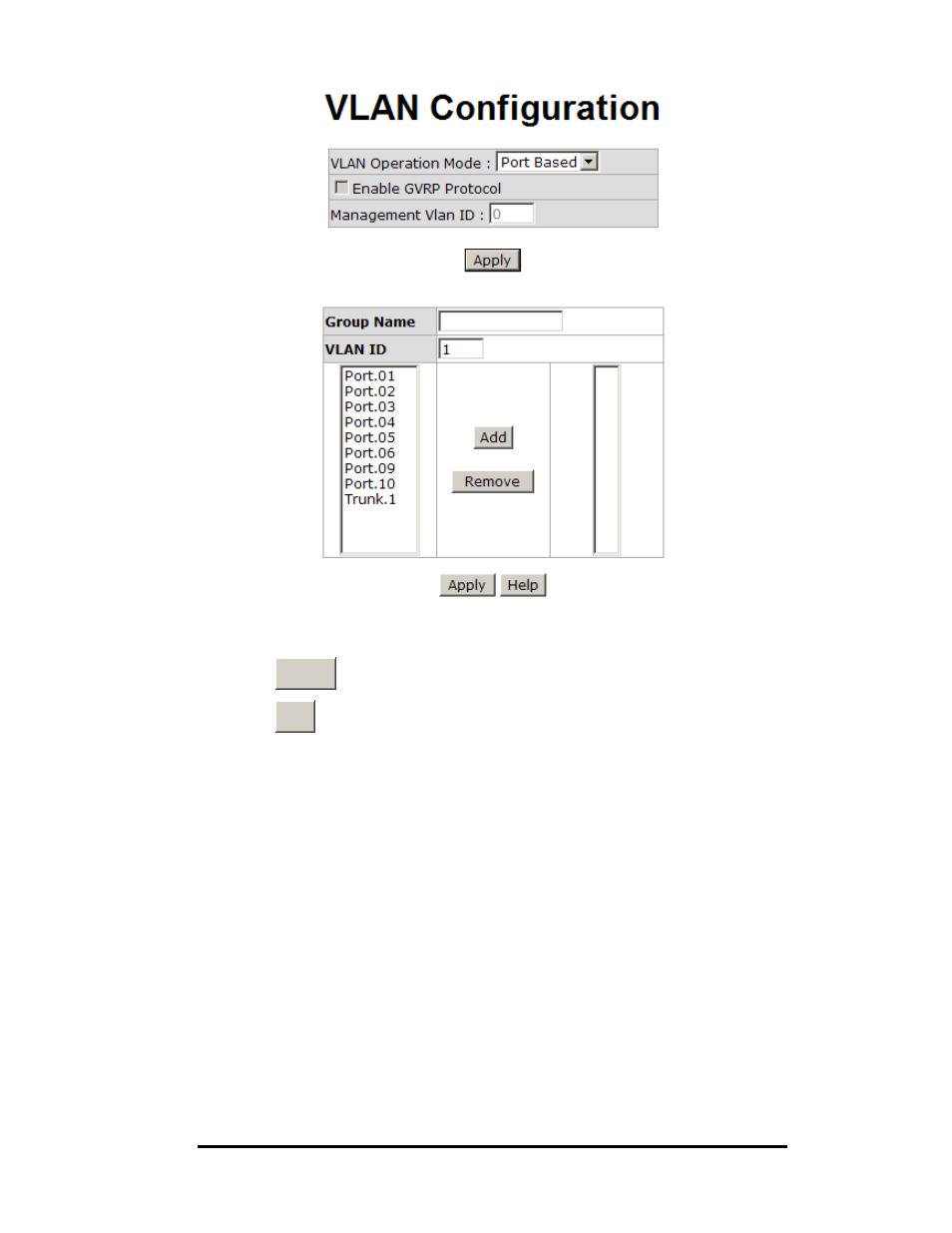

VLAN—Port Based Add interface
„ The VLAN is displayed.
„ Use
Delete button to delete an unwanted VLAN.
„ Use
Edit button to modify an existing VLAN group.
Note If the configuration is not saved, it will be lost when the switch is
powered off.
802.1Q VLAN
Tagged-based VLAN is an IEEE 802.1Q specification, which allows VLANs
to be created across devices from different venders. IEEE 802.1Q VLAN
uses a technique to insert a “tag” into the Ethernet frame. The tag contains a
VLAN Identifier (VID).
When the 802.1Q VLAN is enabled, all ports on the switch belong to a
default VLAN (VID 1). The default VLAN cannot be deleted. Up to 64 VLAN
groups are supported.
