Digital Input/Output
The EIR610-3SFP-T Managed Industrial Switch contains two digital outputs
and two digital inputs. Outputs are open-collector transistor switches that
may be controlled by the host computer. They provide messages, which can
be applied to heaters, pumps, and other electrical equipment. The digital
inputs may be read by the host computer and used to sense the state of a
remote digital signal.
„ The Digital Input/Output function must software enabled to be
available. This is accomplished via a pull down box on the web
interface.
„ Digital Input: Choose the transition type to trigger it.
¾ LowÆHigh: DI0/DI1 will report the status when the external
device’s voltage changes from low to high.
¾ HighÆLow: DI0/DI1 will report the status when the external
device’s voltage changes from high to low.
„ Event description: User defined description for the event.
„ Action: Check boxes to reoirt the events via Syslog, SMTP, or SNMP
Trap.

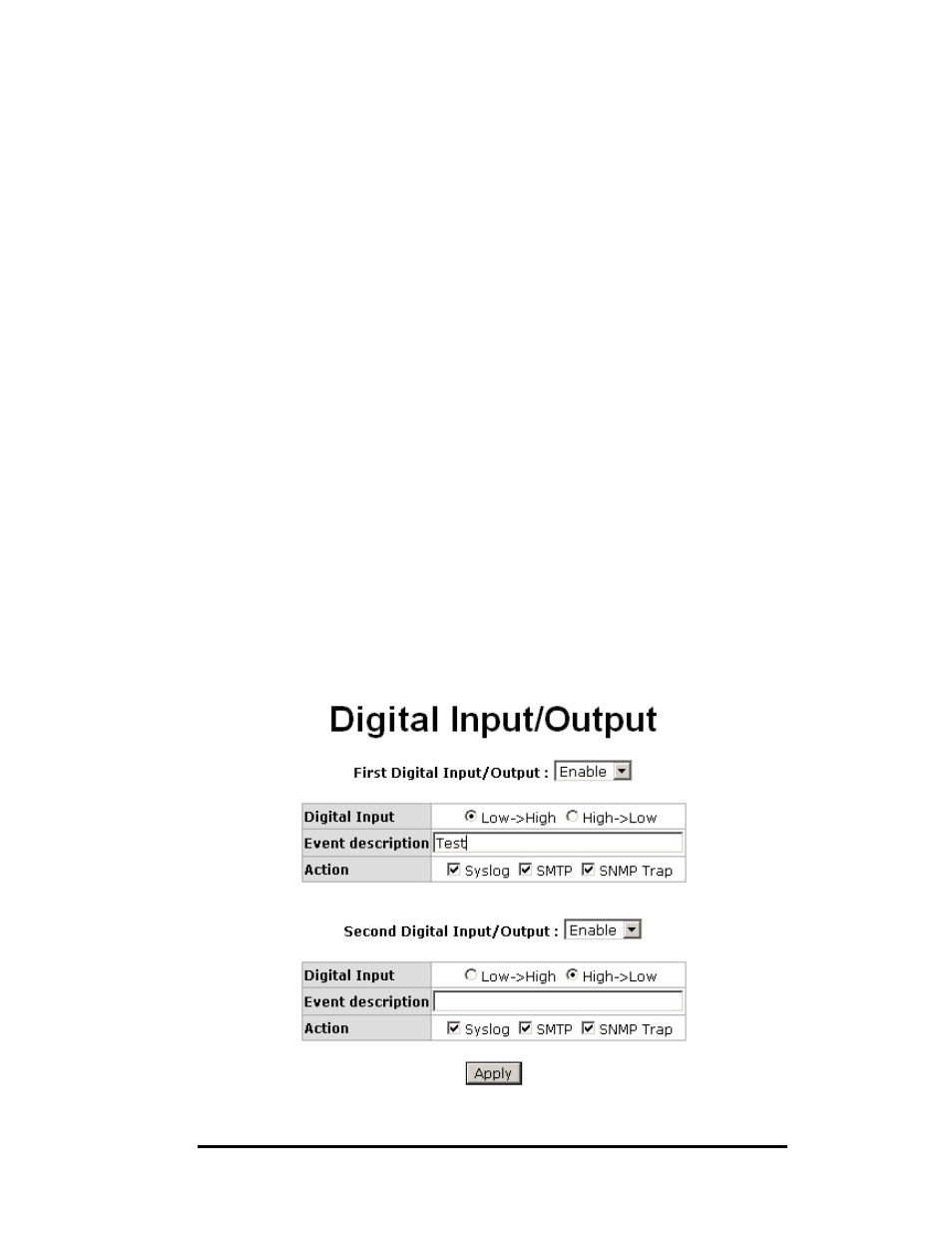

Digital Input/Output interface
