50
AT84AD004
5390A–BDC–06/04

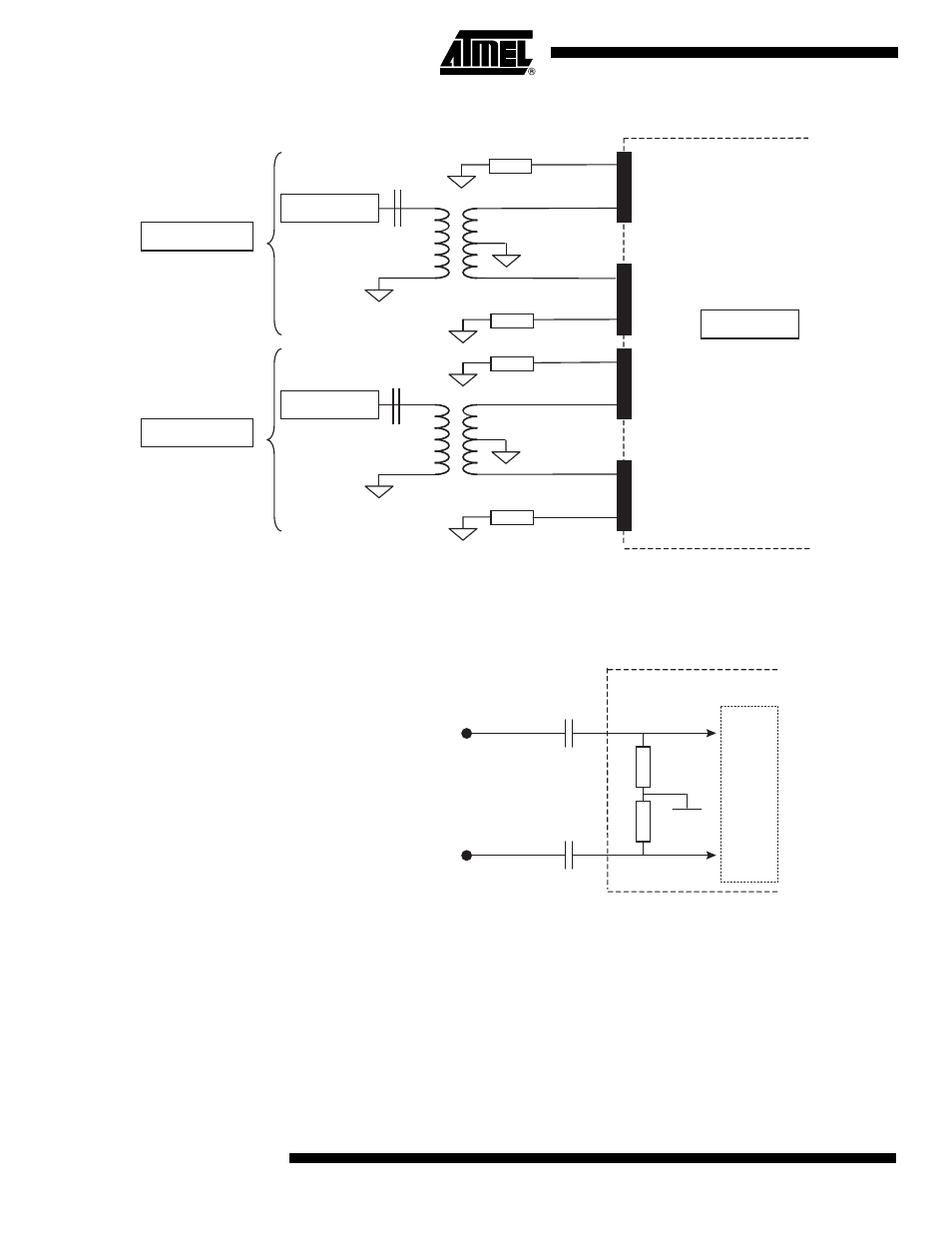

Figure 52. Termination Method for the ADC Analog Inputs in AC Coupling Mode
Clock Implementation The ADC features two different clocks (I or Q) that must be implemented as shown in
Figure 53. Each path must be AC coupled with a 100 nF capacitor.
Figure 53. Differential Termination Method for Clock I or Clock Q
Note: When only clock I is used, it is not necessary to add the capacitors on the CLKQ and
CLKQN signal paths; they may be left floating.
Channel I
Channel Q
50
Ω
Source
VinI
VinIB
VinQ
VinQB
VinI
VinIB
VinQ
VinQB
Dual ADC
50
Ω
50
Ω
50
Ω
50
Ω
GND
GND
50
Ω
Source
GND
GND
ADC Package
VCCD/2
50
Ω
50
Ω 100 nF
100 nF
Differential Buff
er
CLK
CLKB
