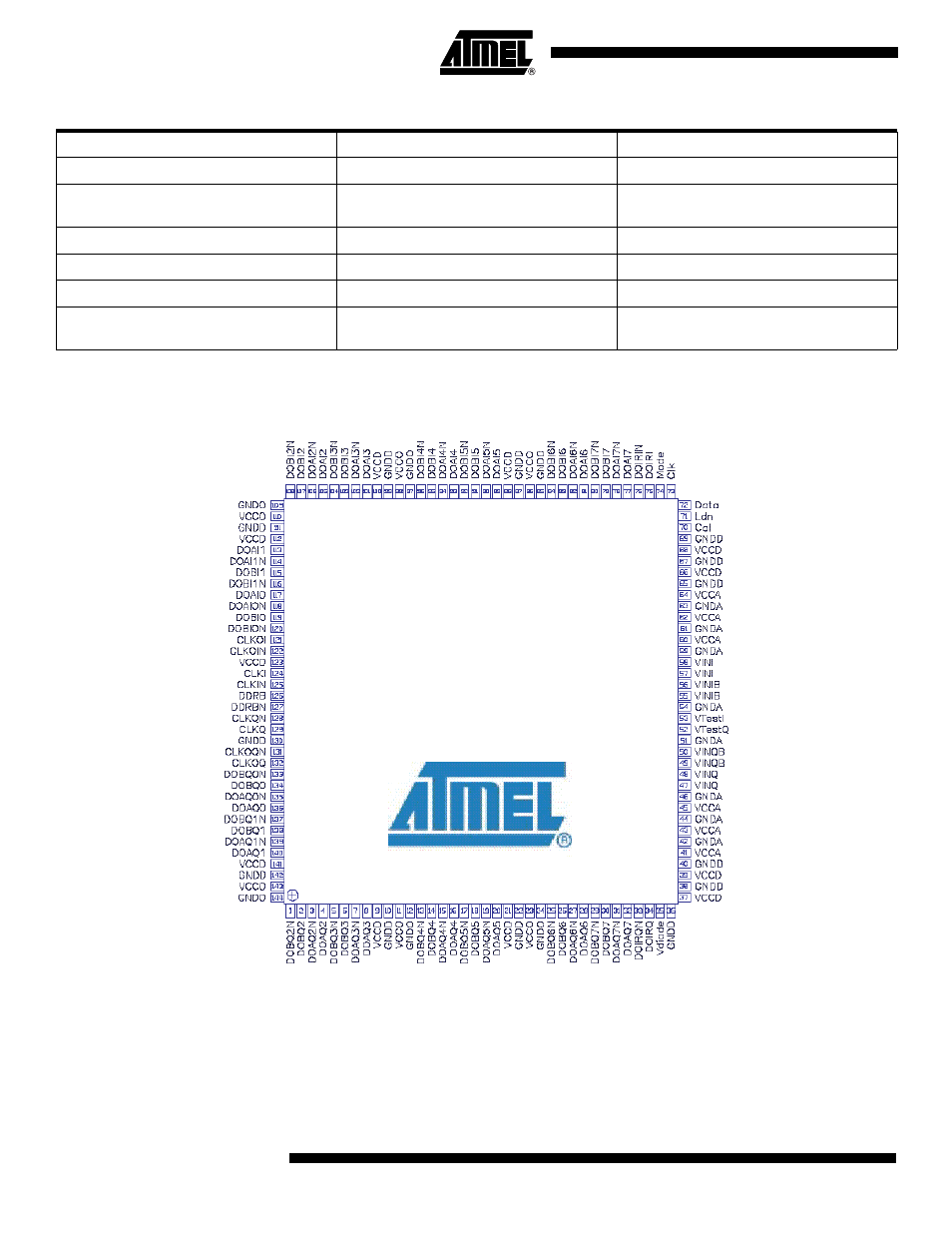

Figure 14. AT84AD004 Pinout (Top View)
CLKOIN 122 Inverted phase (-) output clock channel I
CLKOQ 132
Output clock in-phase (+) channel Q,
1/2 input clock frequency
CLKOQN 131 Inverted phase (-) output clock channel Q
VtestQ, VtestI 52, 53 Pins for internal test (to be left open)
Cal 70 Calibration output bit status
Vdiode 35
Positive node of diode used for die
junction temperature measurements
Table 8. AT84AD004 LQFP 144 Pin Description (Continued)
Symbol Pin number Function
LQFP 144
20 by 20 by 1.4 mm
Atmel - Dual 8-bit
