9985 Function Submenu List and Descriptions
3-44
9985 PRODUCT MANUAL
9985-OM (V1.18)
(continued)
Note:
AES Ch1 thru AES Ch 16 controls are identical to those shown here for AES Ch 1.

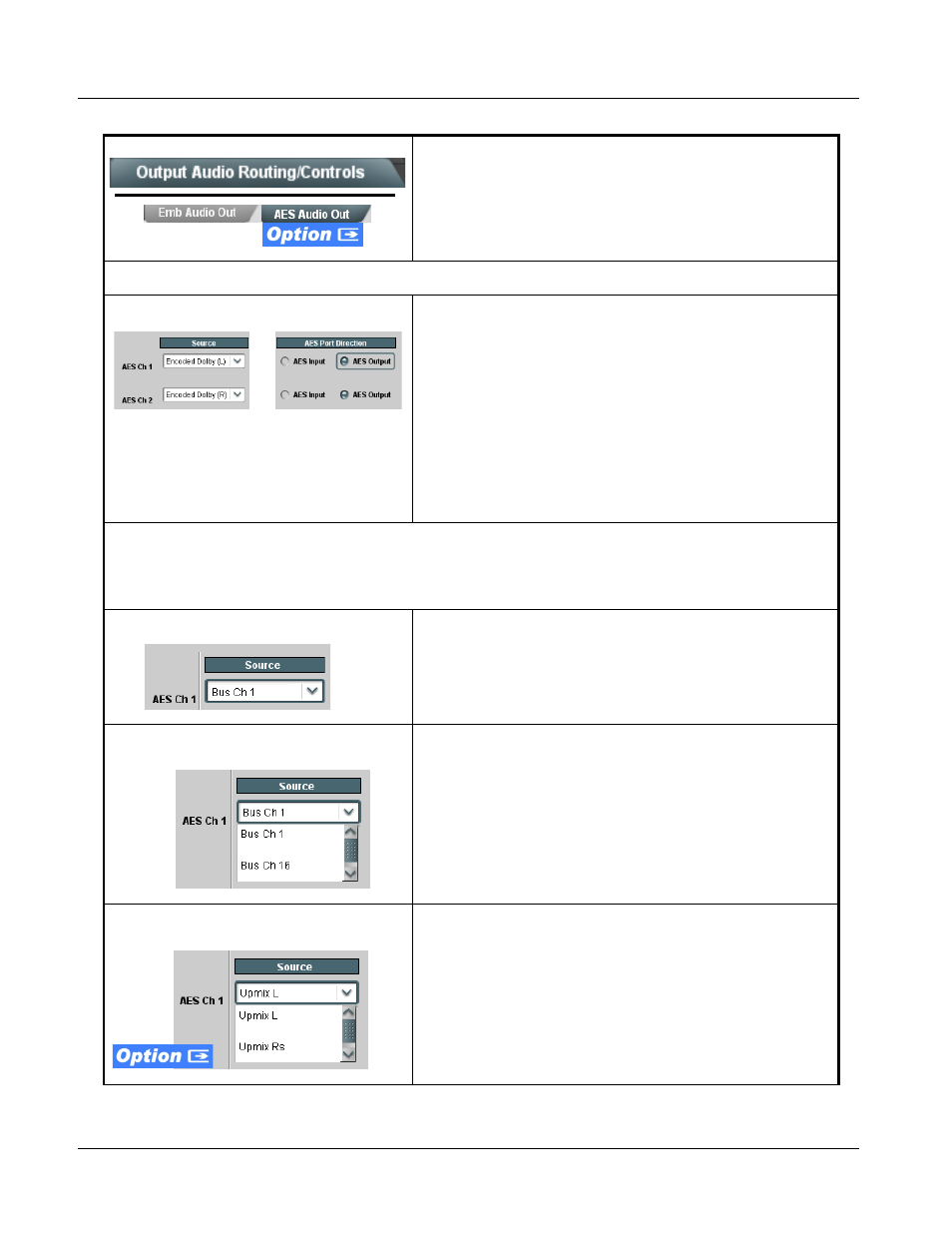

• AES Port Direction Select
Provides port direction control for each AES port on the card rear module.
Note: • AES port direction selector controls input or output direction on a
channel pair basis.
• When using the AES Port Direction controls for an AES pair, only
the even-channel control of the pair responds to DashBoard
control. (For example, to change AES pair 1 from input to output,
click on the AES Ch 2 AES Output direction radio button.)
• Before assigning a pair as a output here, make certain an AES
channel pair is not being used as an input.
- If a port is to be used as an output, set control for desired pair
to AES Output.
- If a port is to be used as an input, set control for desired pair to
AES Input. Refer to Audio Bus Input Routing/Controls (p.
3-31) to route an AES input into the card.
Note: Cards with option +AES16 do not share AES input and output BNC ports. 16 channels of AES input embedding is available
using the Audio Bus Input Routing/Controls, with 16 channels of AES output de-embedding using the AES Ch1 thru AES
Ch 16 AES outputs on the AES Audio Out sub-tab. This option is fully utilized only when using rear I/O module
RM20-9985-G.
• AES Output Channel Source Select
With the AES Audio Out sub-tab selected, using the Source drop-down
list selects the card audio source to be directed to the corresponding AES
output channel from the choices described below.
• Bus Ch 1 thru Ch 16 as Source for
AES Channel Output
Bus Ch 1 thru Bus Ch 16 range in Source drop-down list routes a card
internal bus channel (Bus Ch 1 thru Bus Ch 16) to be the source for the
selected AES output channel.
(In this example, Bus Ch 1 is the source for destination AES output Ch 1)
• Upmixer Channels as Source for AES
Channel Output
Upmix L thru Upmix Rs range in Source drop-down list routes an
upmixed channel to be the source for the selected AES output channel.
(In this example, Upmix L is the source for destination AES output Ch 1)
Table 3-2
9985 Function Submenu List — continued
• •
•
•
•
•
•
•
•
