9985-OM (V1.18)
9985 PRODUCT MANUAL
2-7
Installation and Setup
Installing a Rear Module
9985 Rear Modules
Table 2-1 shows and describes the full assortment of Rear Modules
specifically for use with the 9985.
Notes: • Rear Modules equipped with multi-wire Phoenix connectors are supplied
with removable screw terminal block adapters. For clarity, the adapters are
omitted in the drawings below. Refer to Connecting To Phoenix Terminal
Connectors (p. 2-15) for connector polarity orientation details.
• The Rear Modules shown here are standard production items. Other signal
combinations may be available as custom items. Consult Product Support
with requests. Also, please check our web site pages for this product; new
Rear Modules may be available that are not listed here.
•
Some connection types described here on Expansion Rear
Modules are functional only on cards equipped with corresponding options.
Base Rear I/O Modules provide connections for standard card BNC video
and audio connections, with the rear module mating directly with the
Fusion3G
®
card. Expansion Rear I/O Modules are required for some video
and audio options, such as analog audio/video and fiber connections. These
rear modules mate with an Expansion piggyback card that is mounted to the
base Fusion3G
®
card when equipped with these options.

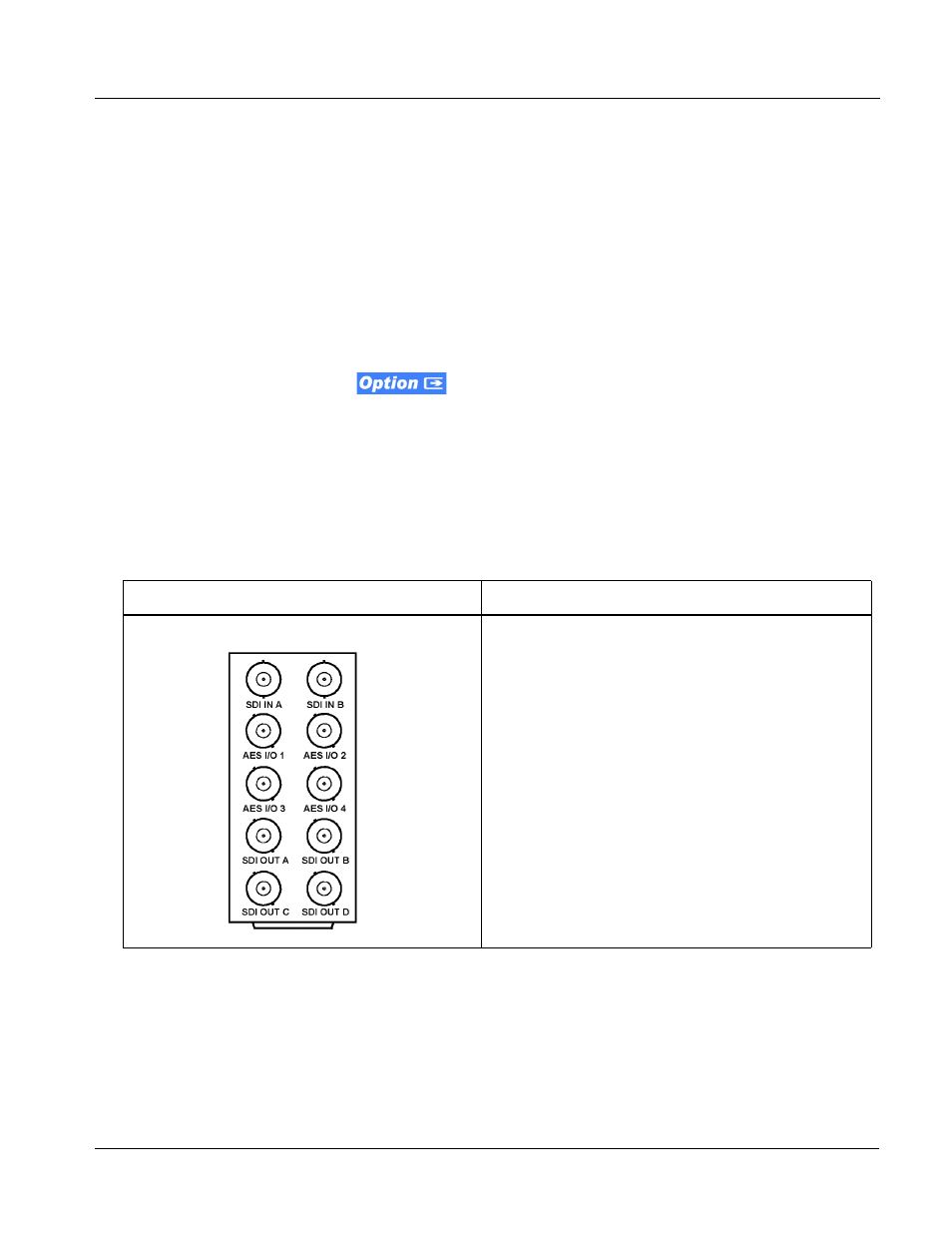

Table 2-1
9985 Rear Modules
9985 Rear Module
Description
RM20-9985-B Base Rear Module
Provides the following connections:
• Two SDI video input BNCs
(
SDI IN A and SDI IN B
)
• Four AES I/O BNC (AES-3id) input/outputs
(
AES I/O 1
thru
AES I/O 4
; I/O function of each
connection is software-configurable)
• Four SDI video output BNCs
(
SDI OUT A thru SDI OUT D
)
Note: AES inputs and outputs operational only with card
option +AES installed.
