9284 Function Submenu List and Descriptions
3-14 9284 PRODUCT MANUAL 9284-OM (V1.3)

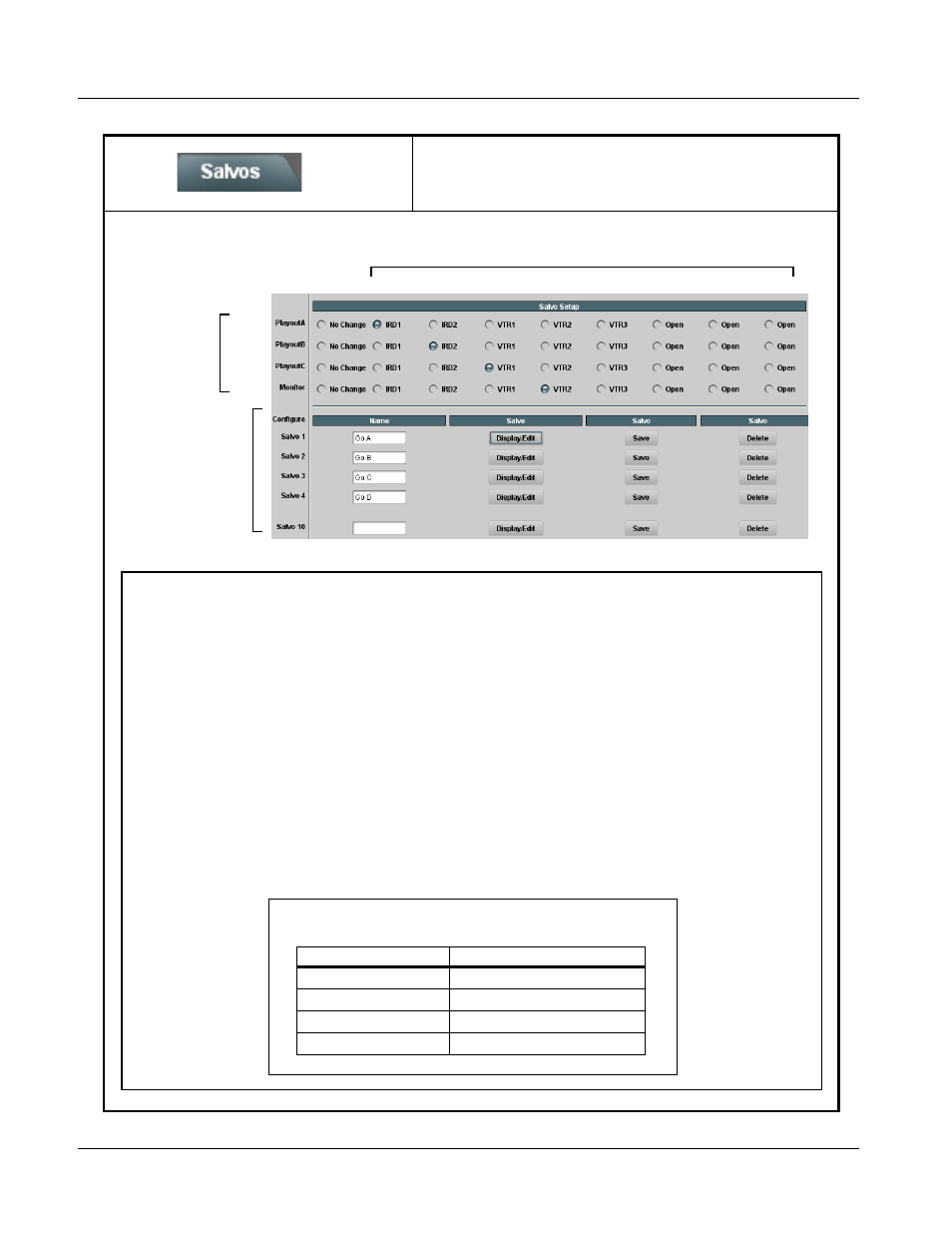

Salvos
Defines the source-to-destination routing for up to 10
user-defined salvos. Also provides fields for custom
naming each salvo.
Table 3-1 9284 Function Submenu List — continued
Source Selection Buttons
Src 1 Src 2 Src 3 Src 4 Src 5 Src 6 Src 7 Src 8
Dest 1
Dest 2
Dest 3
Dest 4
Destination
Rows
Salvo
Edit
Controls
•
•
•
Defining Salvos
1. In the Name field for the salvo, enter a custom name if desired (“Go A” thru “Go D” for salvos 1 thru 4 in this example).
Note: Click Refresh to commit name changes when done.
2. For the salvo to be defined (Salvo 1 thru Salvo 10), click its Display/Edit button. The salvo is now ready for editing, with
each salvo independently allowing setup for all four destinations.
3. For each destination row Dest 1 thru Dest 4 (“PlayoutA” thru “PlayoutD” in this example), set up source routing by
selecting the button within the row corresponding to the desired source.
4. For the salvo just defined, click Save. A Confirm? pop-up appears, requesting save confirmation.
5. Repeat these steps for each salvo to be defined.
6. To check the settings of a salvo, click Display/Edit. The settings for the salvo are now displayed and can be re-edited
and re-saved as described above.
Note: When defining a salvo, setting the No Change button retains settings for the corresponding destination while
allowing other destination settings (rows) to be changed.
7. To delete a salvo, click Delete. A Confirm? pop-up appears, requesting delete confirmation.
In the example shown above for Salvo 1 (“Go A”), when this salvo is
launched it results in the following routing:
Destination Source
Dest 1 (“PlayoutA”) Src 1 (“IRD1”)
Dest 2 (“PlayoutB”) Src 2 (“IRD2”)
Dest 3 (“PlayoutC”) Src 3 (“VTR1”)
Dest 4 (“Monitor”) Src 4 (“VTR2”)
